Front Panel Controls (cont)
5. Overload indicator light: When the amplifiers output overloads
the OVER LOAD indicator illuminates and interrupts the output
signal. The output will resume when the volume is lowered or
the offending load is remove from the output line.
6. Power Switch and Power Indicator: This switch supplies power
to the unit. The power indicator lights when power is applied to
the unit.
7. Master: This control adjusts the level of the combined input
signals to the power amplifier.
8. Treble: This control adjusts the high frequency response by
providing up to 7 dB of boost or 12 dB of cut at 10 kHz.
9. Bass: This control adjusts the low frequency response by
providing up to 7 dB of boost or 12 dB of cut at 100 Hz.
Rear Panel Controls and Connections
(Refer to Figure 4)
10. Main cord connector: This connector is for the connection of the
supplied AC line cord.
11. AC fuse: The fuse can only be changed, in the event of a fault or
changing the supply voltage. This service should only be done by
an EV service center.
12. GND screw: In case the main outlet does not provide a ground
conductor, this screw offers the possibility to ground the amplifi-
ers metal parts.

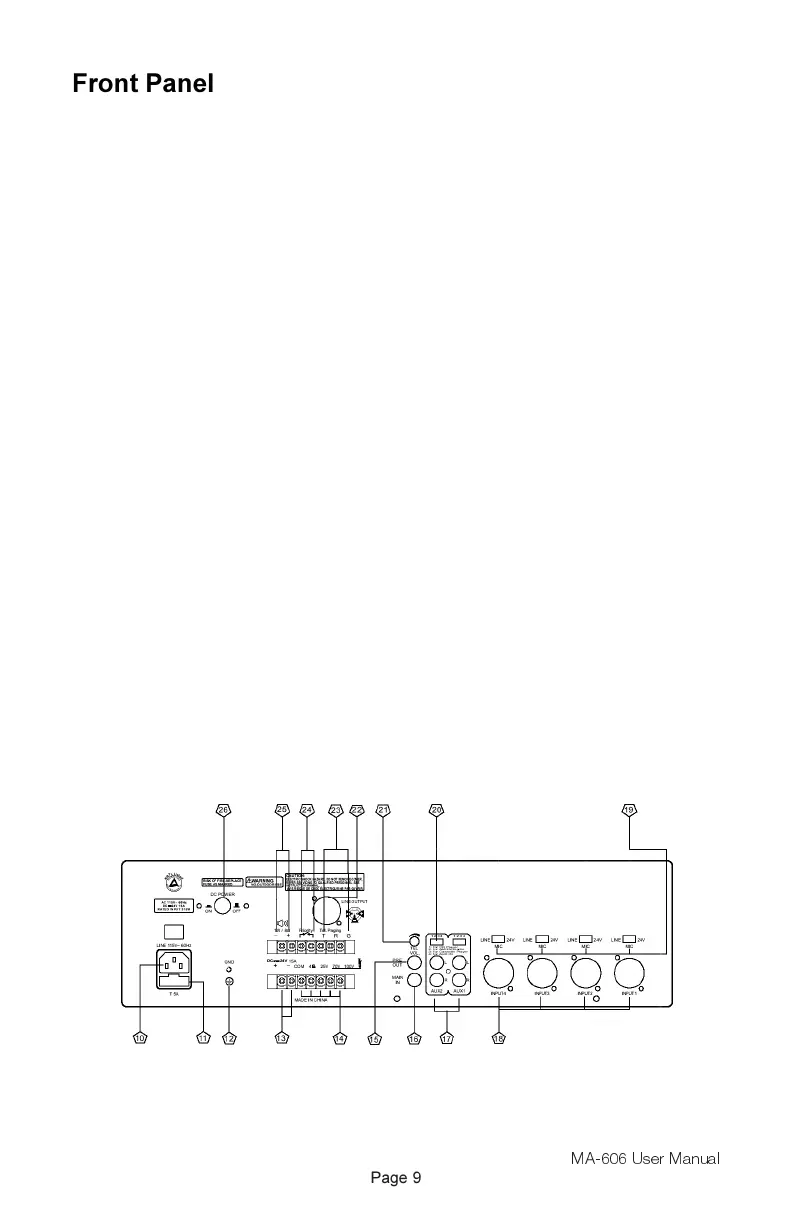

Figure 4:
Rear Panel Layout
