14 en | Installation and Wiring EVID Ceiling Speaker Systems
2023-07 | 12 | F.01U.177.705
Installation manual
Electro-Voice

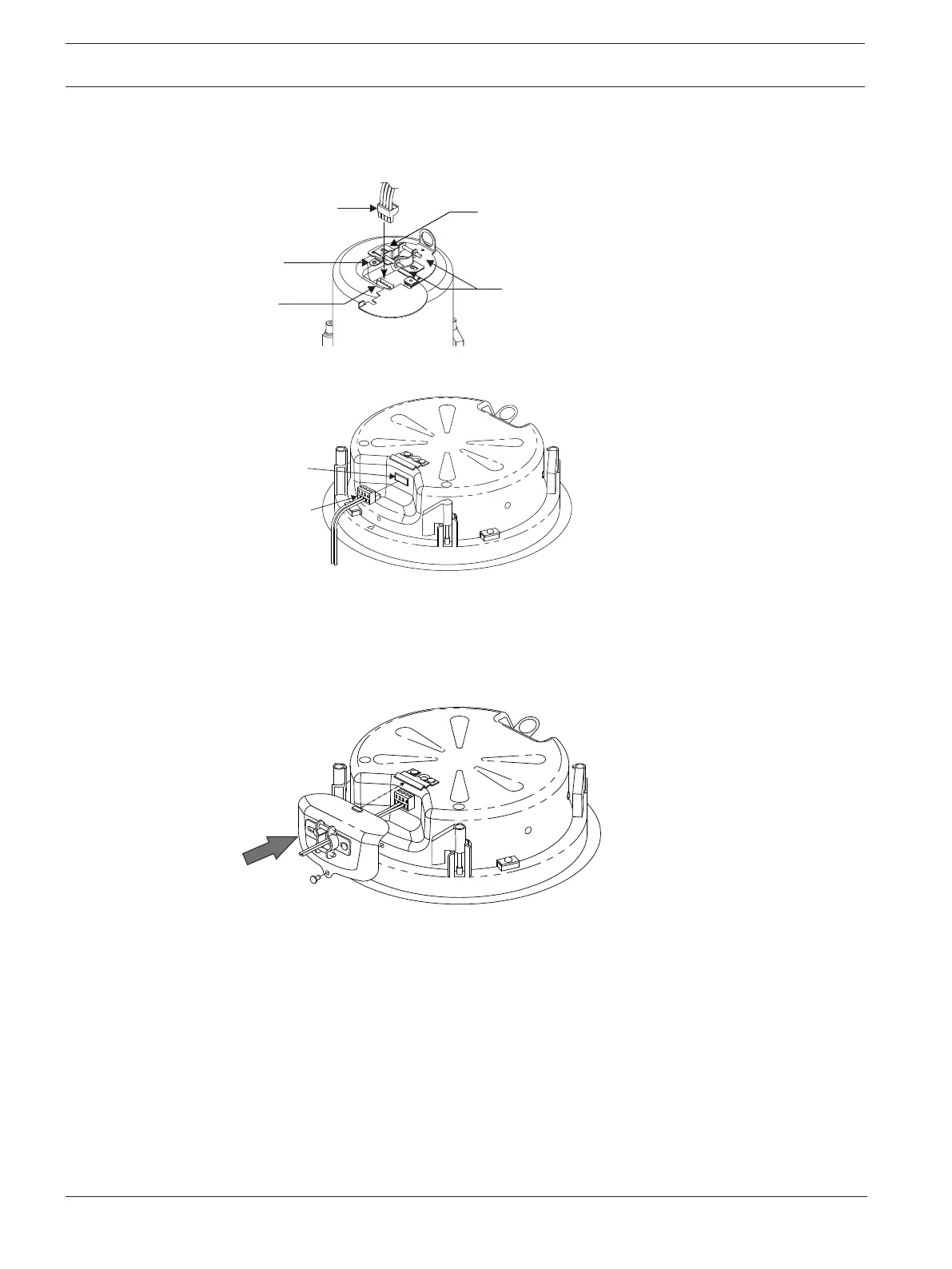

Plugging in the connector
When all wiring has been completed to the connector, plug the input connector (A) into the
socket in the speaker’s terminal cup (B). Tighten all screws to eliminate vibration.
Hold-down
screw (E)
Input connector (A)
Terminal
block (B)
Strain
relief
screws (D)
Horizontal
screw (C)
Plug connector into socket (except C4.2LP)
Input connector (A)
Terminal block (B)
Figure4.10: Plug connector into socket for the C4.2LP
Reinstalling the terminal cover plate for the EVID-C4.2LP
To reinstall the terminal cover plate, do the following:
1. Thread the wire through the strain relief fitting on the terminal cover plate.
2. Guide the terminal cover plate (A) into the terminal cover latch (B).
A
C
B
3. Insert the terminal cover locking screw (C) into the terminal cover plate.
4. Tighten the terminal cover locking screw.
Ensure the terminal cover plate is secure. Do not over tighten the terminal cover locking
screw.
4.4 Step 4 — Secure the Cable to the Speaker
Fully loosen the horizontal screw (C) shown in
Plugging in the connector, page 14
, then the
strain relief screws (D). Run the wires through the opening in the fitting and plug the input
connector (A) into the speaker’s terminal block (B). Then tighten the strain relief fitting as
follows:
