EVID
TM
Owner’s Manual
6
Product Description
Step 4: Attach the Wiring to the
Terminal Connector and Wire the
Speaker
The 4-pin phoenix-style plug-in connector
provides for a pass-thru audio connection
to daisy-chain a line of speakers. Insert
the bare end of wire into the appropriate
connector terminals as described below.
For parallel wiring, see Figure 12. When
one input connector is removed, subse-
quent speakers will remain connected.
For daisy-chaining, see Figure 13. When
one input connector is removed, subse-
quent speakers will be disconnected.
Screw down the hold-down screw until
tight, using a small screwdriver. See
Figure 14. The connector accepts up to
12 gauge wire.
Step 5: Secure the Seismic Tab
Connection Point
The rear of the enclosure includes an
eyebolt for connection to a seismic
restraint. Connect it to a properly rated
hardware fitting that is securely installed
independently of the SAM™ bracket. Even
if your local construction code does not
require the installation of secondary
support, its use is highly recommended for
further security.
Step 6: Test System Operation
After all connections are made, test the
complete system operation. Appendix C
(page 14) contains a troubleshooting table
to assist in locating many speaker-related
problems.

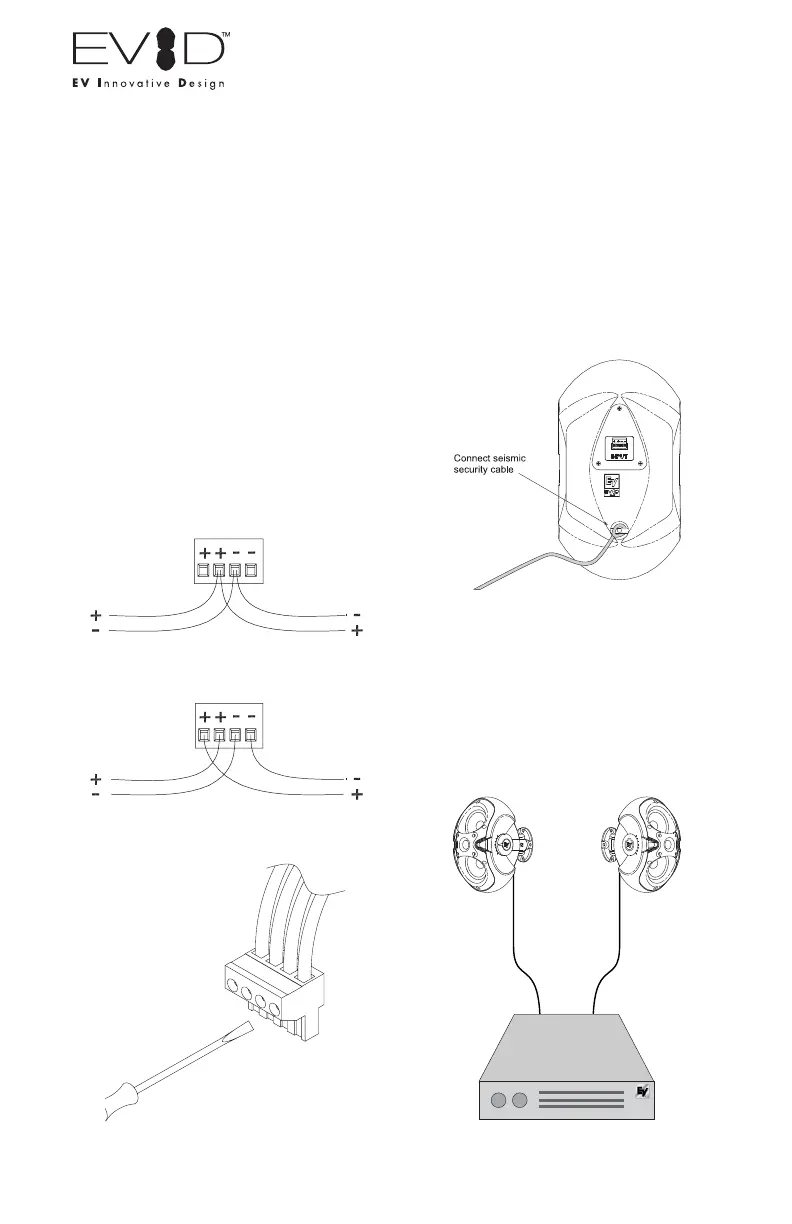

Figure 14: Tighten With Screwdriver
Figure 12: Parallel Wiring
Figure 13: Daisy-Chain Wiring
Figure 15: Secure Seismic Security
Cable
Figure 16: EVID
TM
System
Screwdriver
From amplifier or
previous speaker
To next speaker
From amplifier or
previous speaker
To next speaker
