Installation and wiring
Installing the speaker
For safety, ensure the mounting surface supports more than the weight of the speaker. Use
only industry-accepted fasteners and mounting methods when mounting the wall bracket.
Consult an expert if you are unsure.
!
Caution!
It is the installer's responsibility to determine and use the proper mounting hardware for
the wall construction type.
Disregarding this caution could result in damage to the product and personal injuries may
occur.

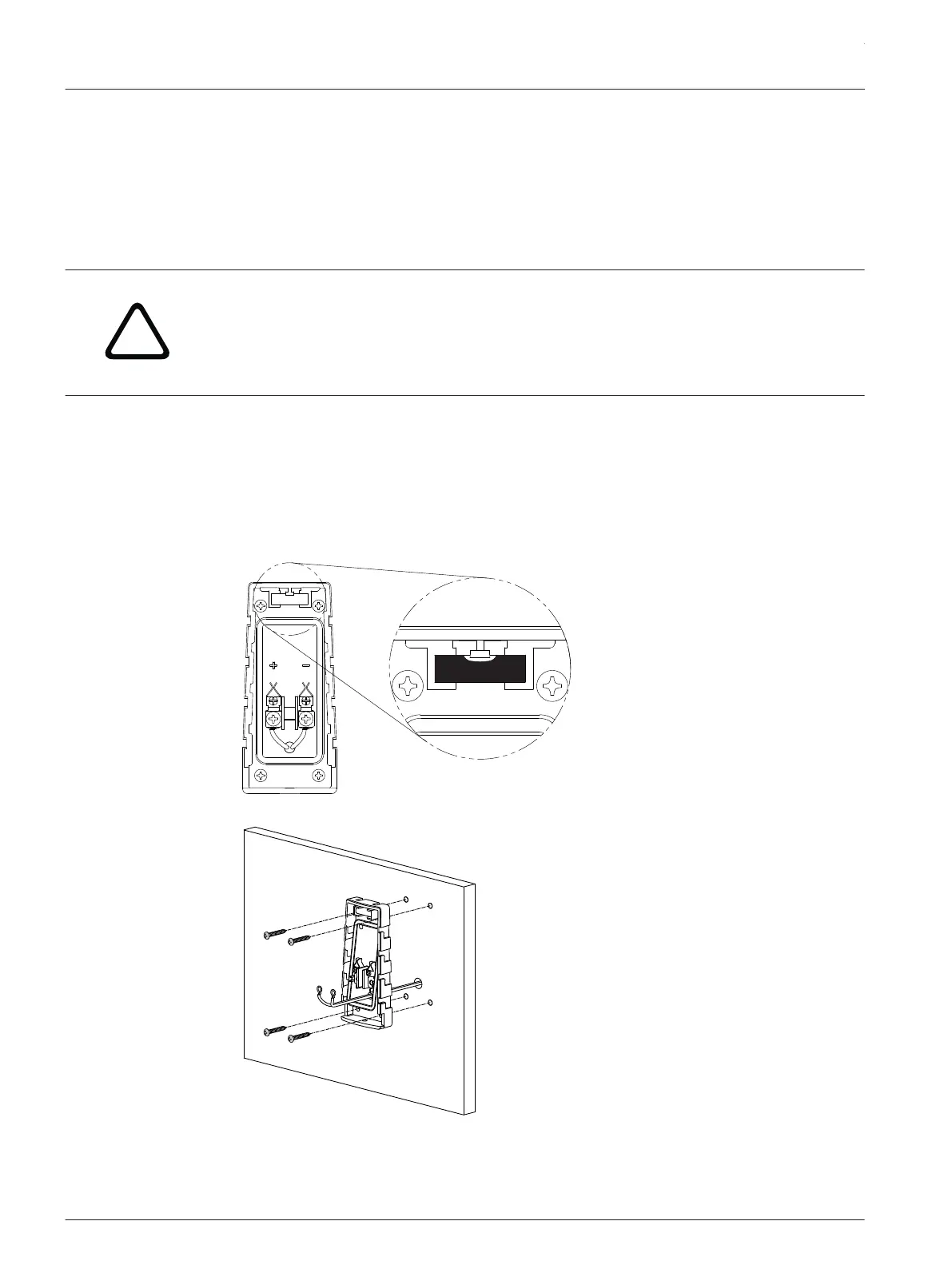

Installing the wall bracket vertically
To install the wall bracket vertically, do the following:
1. Drill a hole into the wall for the wire.
The size of the hole is dependent on the size of the wire used.
2. Push the wire thru the hole.
3. Adjust the wall bracket until the bubble is level.
4. Install four mounting screws to secure the wall bracket to the wall.
5. Connect the wires to wall bracket audio connectors, as shown in the wiring section.
4
4.1
EVID-S Surface Mount Loudspeakers
2017.08 | 01 | F.01U.345.360 Installation manual Electro-Voice
