EVA Expandable Vertical Array Rigging system | en 27
Electro-Voice
Installation manual
2023-01 | 04 | F01U196199
60º MAX
A
B
A

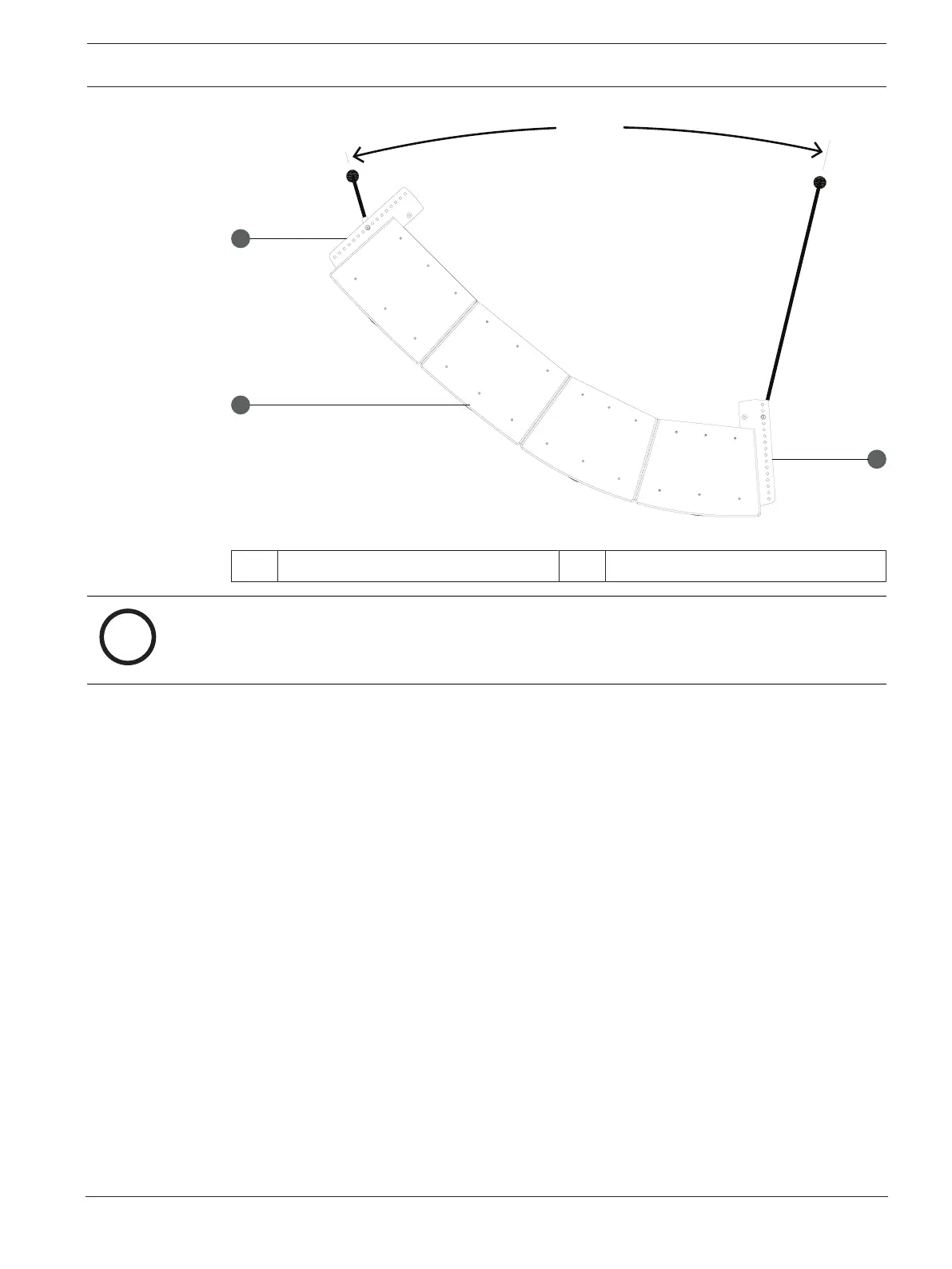

Figure7.7: Use of two EVA-SG2 standard grids
A EVA-SG2 standard grid B EVA module(s)
i
Notice!
When using two grids, the angle between the suspension lines must never exceed 60°. Do not
use EVA-CG (discontinued), EVA-EG or EVA-EG2 grids in this application.
For overall down angles of about 45° or greater:
4 Use the third-to-last hole of each grid.
For overall down angles of less than about 45°:
1. Use the third-to-last hole on the bottom grid.
2. Use any hole forward of third-to-last on the top grid.
7.2.5 EVA-1151D tie plates
Every EVA-1151D module (discontinued) includes tie plates.
Features
– Assembly of multiple EVA-1151D modules (discontinued) in a vertical column at either 0°
or 5° of splay between modules.
– Provision of attachment points for suspending EVA-2082S modules underneath.
– Installation of an optional EVA-GXB spreader bar at the top of an EVA-1151D module
(discontinued) by inverting the tie plates.
An EVA-GXB spreader bar at the top of an EVA-1151D module (discontinued) serves as a
rudimentary flying grid for a stand-alone subwoofer hang, if only minimal down angle is
required.
