20 en | Preparing modules for installation EVA Expandable Vertical Array
2023-01 | 04 | F01U196199
Installation manual
Electro-Voice

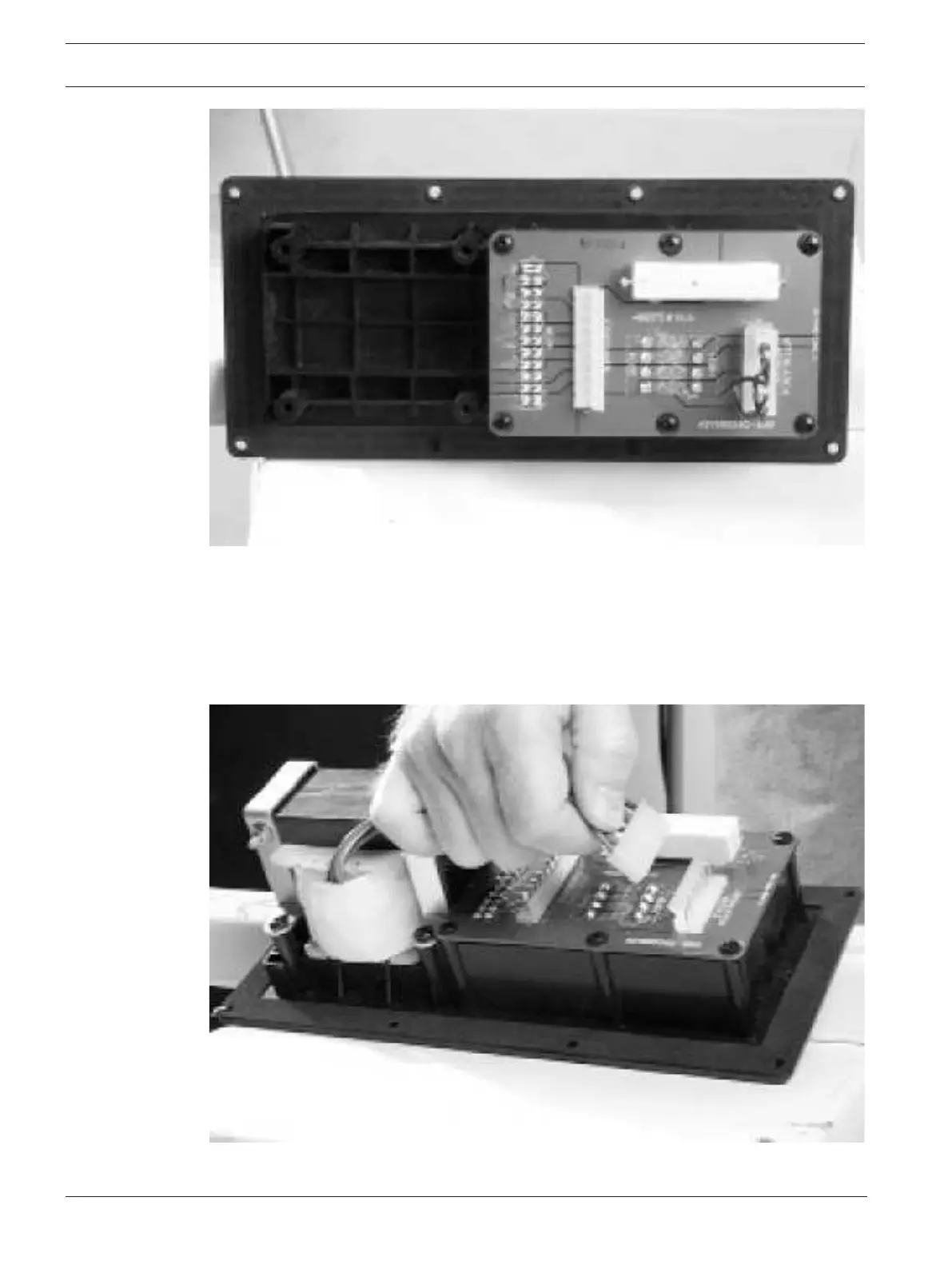

Figure6.4: EVA input panel removed, showing the green PC board and the four bosses to which the
optional EVA-AM attenuation module is attached
2. Unplug and discard the 7-pin jumper-wire connector.
The cable connector of the attenuation module replaces this connector.
3. With the mounting straps on top, place the attenuation module into the pocket between
the four bosses adjacent to the PC board and secure with the four screws (supplied).
4. Plug the cable of the attenuation module into the 7-position header on the PC board.
Figure6.5: EVA input panel with EVA-AM installed showing connector plug-in
