EVC Compact Front-Loaded Loudspeakers Accessories (optional) | en 37
Electro-Voice
Installation manual
2021.09 | 02 | F.01U.345.998

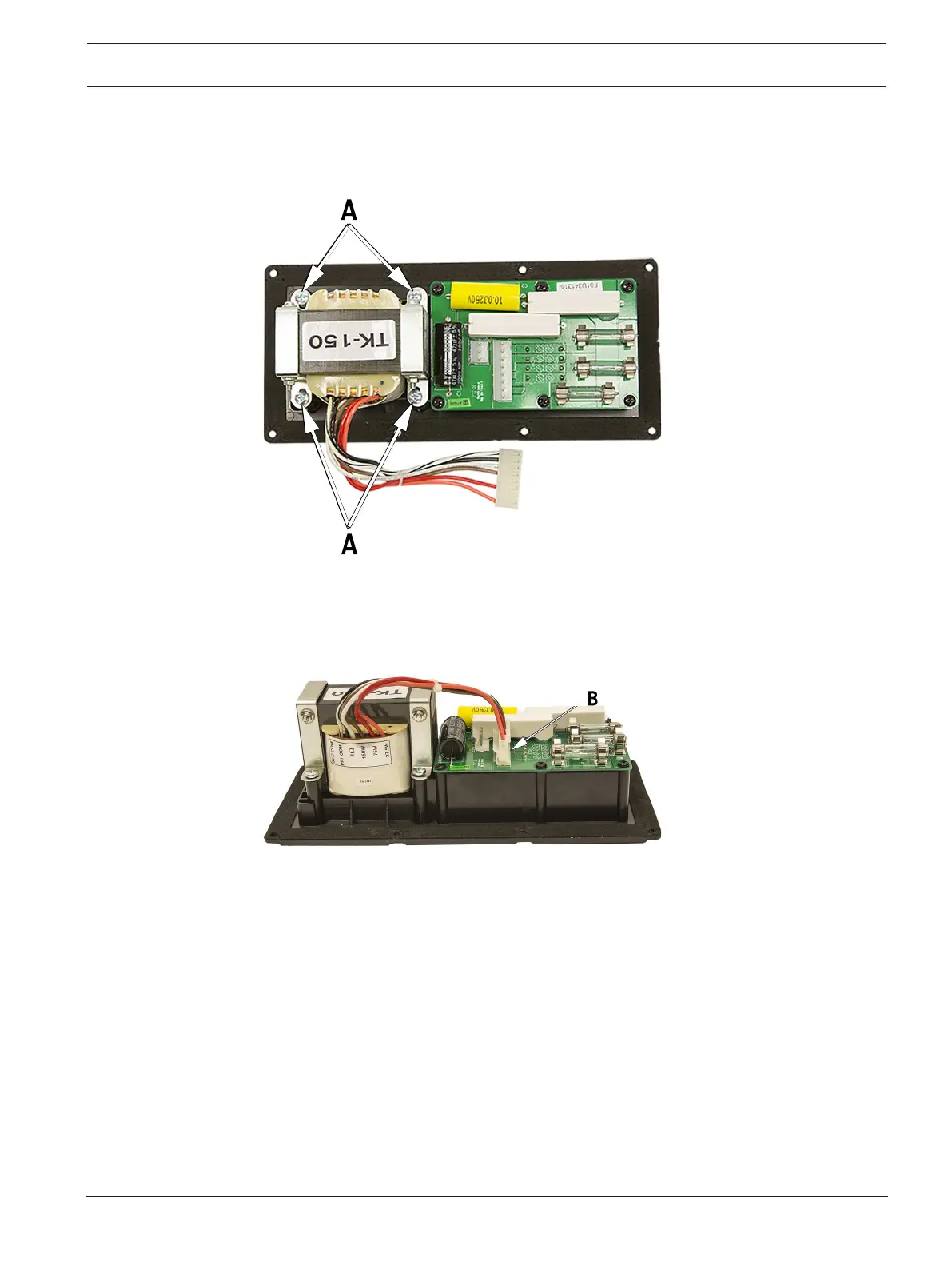

4. Secure the transformer mounting ears to the four input panel bosses with the four #10
screws (A) provided.
Carefully tighten the screws evenly in an X-cross pattern to avoid warping the plastic
input panel.
5. Unplug the 8-position jumper connector located at right angle to the 7-pin crossover
header.
6. Plug in the 8-position wiring harness connector (B) from the transformer to the 8-pin
header in place of the jumper.
Notice the direction of the connector.
7. Reinstall the input panel in its original orientation for all EVC models except EVC-1082
versions, for which the input panel must be rotated 180° before re-installation to provide
adequate clearance for the input cup to seat properly.
8. Apply the new label (supplied) over the input connectors.
9. Connect the (-) input line to the COM input terminal and the (+) input line to the terminal
corresponding to the desired wattage in either the 70.7V or 100V column.
Automatic Saturation Compensation
When the TK-150 transformer is installed in an EVC loudspeaker, it engages EV’s patented
Automatic Saturation Compensation (ASC), which preserves low frequency performance while
presenting a stable load to the amplifier - regardless of the number of speakers connected in
parallel. As a result, EVC loudspeakers - including the subwoofers - sound virtually identical,
whether they are used with a transformer or without.
