18 en | Rigging strength ratings and safety factors EVC Compact Front-Loaded Loudspeakers
2021.09 | 02 | F.01U.345.998
Installation manual
Electro-Voice
Eyebolt suspension-line angle limit
60º
MAX
60º
MAX

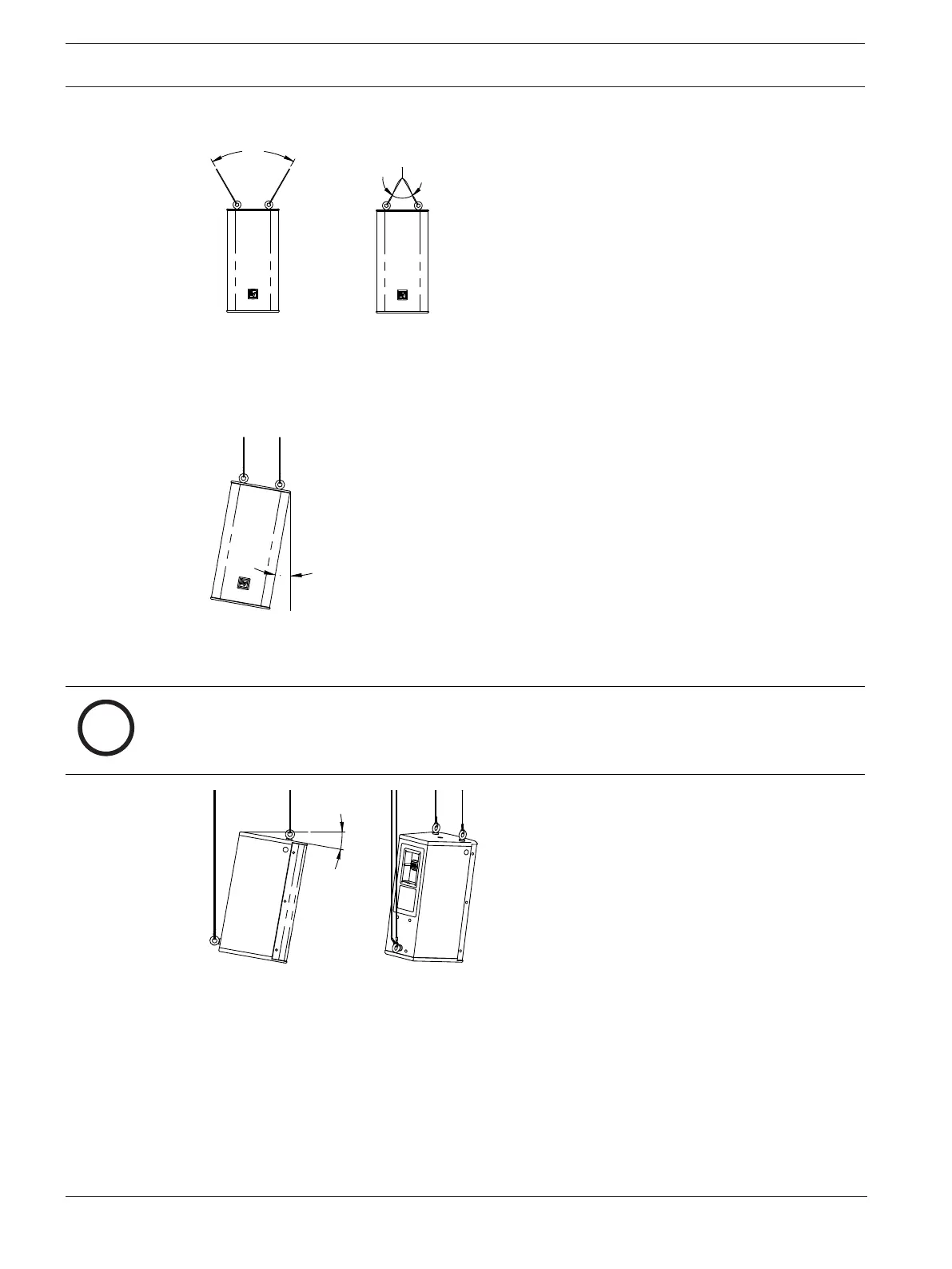

Figure5.2: All-eyebolt suspension-line angle limit, independent (left) or bridled (right) suspension lines
Left-to-right all-eyebolt suspension angles
The suspended all-eyebolt cluster must be perpendicular (plumb) to within ±5°.
5º
MAX
Figure5.3: Left-to-right angle limits for an all-eyebolt suspension (visual angle shown exaggerated for
illustration purposes)
i
Notice!
The PI models need a minimum 10° downward tilt to minimize risk of water entering the
enclosure.
10º TILT
Figure5.4: EVC PI models 10° minimum downward tilt
Refer to
– Recommended practice for eyebolts, page 16
– Suspension line angle limits for individual eyebolts, page 17
– Eyebolts orientated in the plane of pull, page 15
– Eyebolt suspension-line angle limit, page 18
– Working load limit for M10 eyebolts and EVC loudspeakers, page 17
