24 en | Rigging system EVA Expandable Vertical Array
2023-01 | 04 | F01U196199
Installation manual
Electro-Voice
The spreader bar has three 0.813-inch (20.6mm) holes through it, one near each end and one
in the center. Chain hoist(s) or other device(s) used to lift the array into position attach to
these holes.
The two end points provide horizontal stability for the array. The center point alone will
probably require a tie-off to stabilize the horizontal position of the array.
A
A
B
C

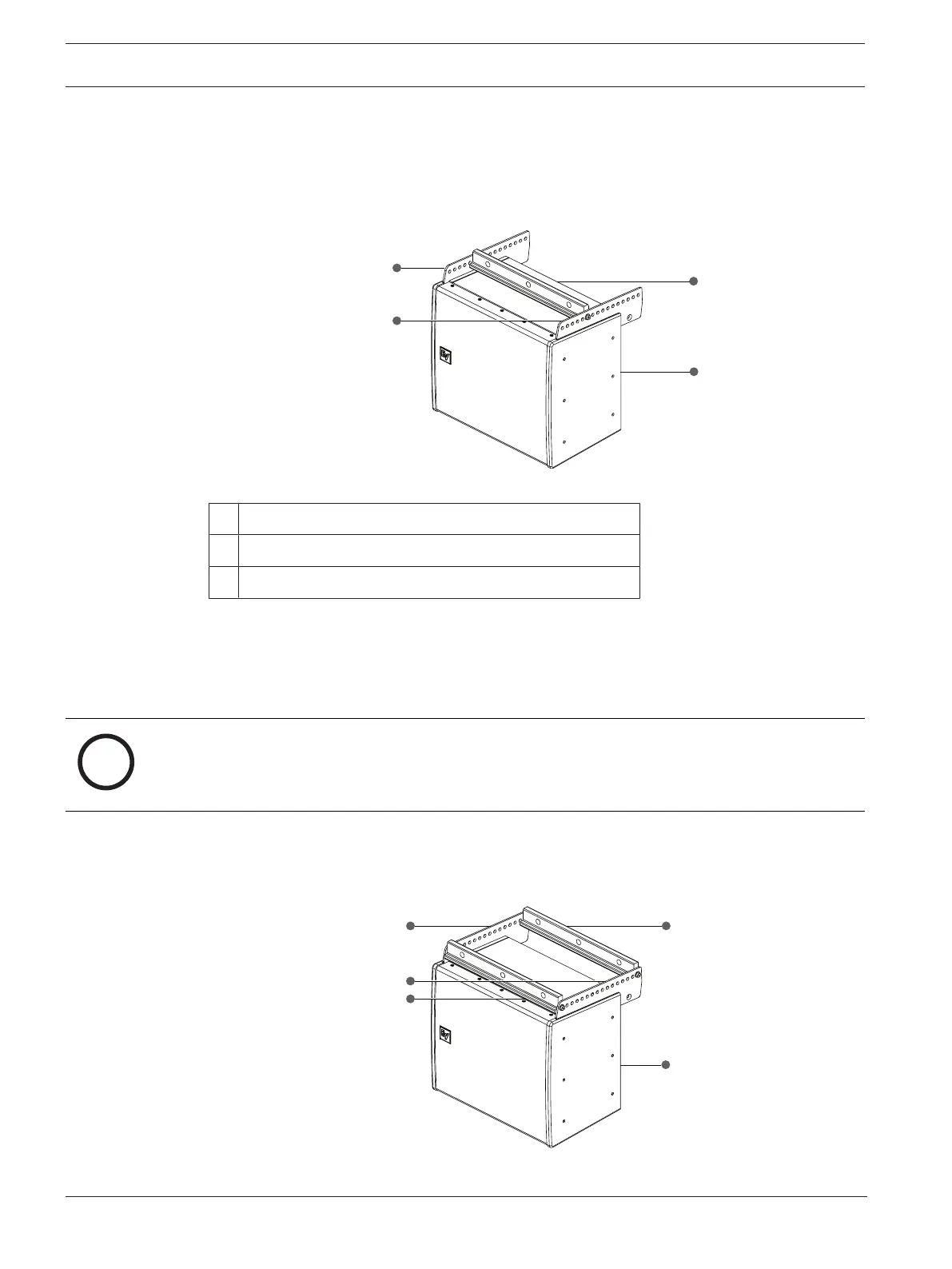

Figure7.3: EVA-SG2 grid
A Standard (EVA-SG2) side arm
B Spreader bar
C EVA module (not included with grid)
When using the standard grid with its single spreader bar, the front-to-back attachment
position of the spreader bar determines the down angle of the array. This information is
provided by Electro-Voice PREVIEW Loudspeaker Software, a function of the array makeup and
desired vertical aiming.
i
Notice!
Use the EVA-EG2 extended grid for arrays larger than four EVA modules or for three- to four-
box arrays that require more down angle than what is available with a standard grid. Refer to
Extended grid with or without second spreader bar, page 25
.
When two front-to-back pickup points are required, use the second spreader bar, EVA-GXB
(sold separately).
A
B
B
C
D
Figure7.4: EVA-SG2 standard grid with optional EVA-GXB spreader bar
