11

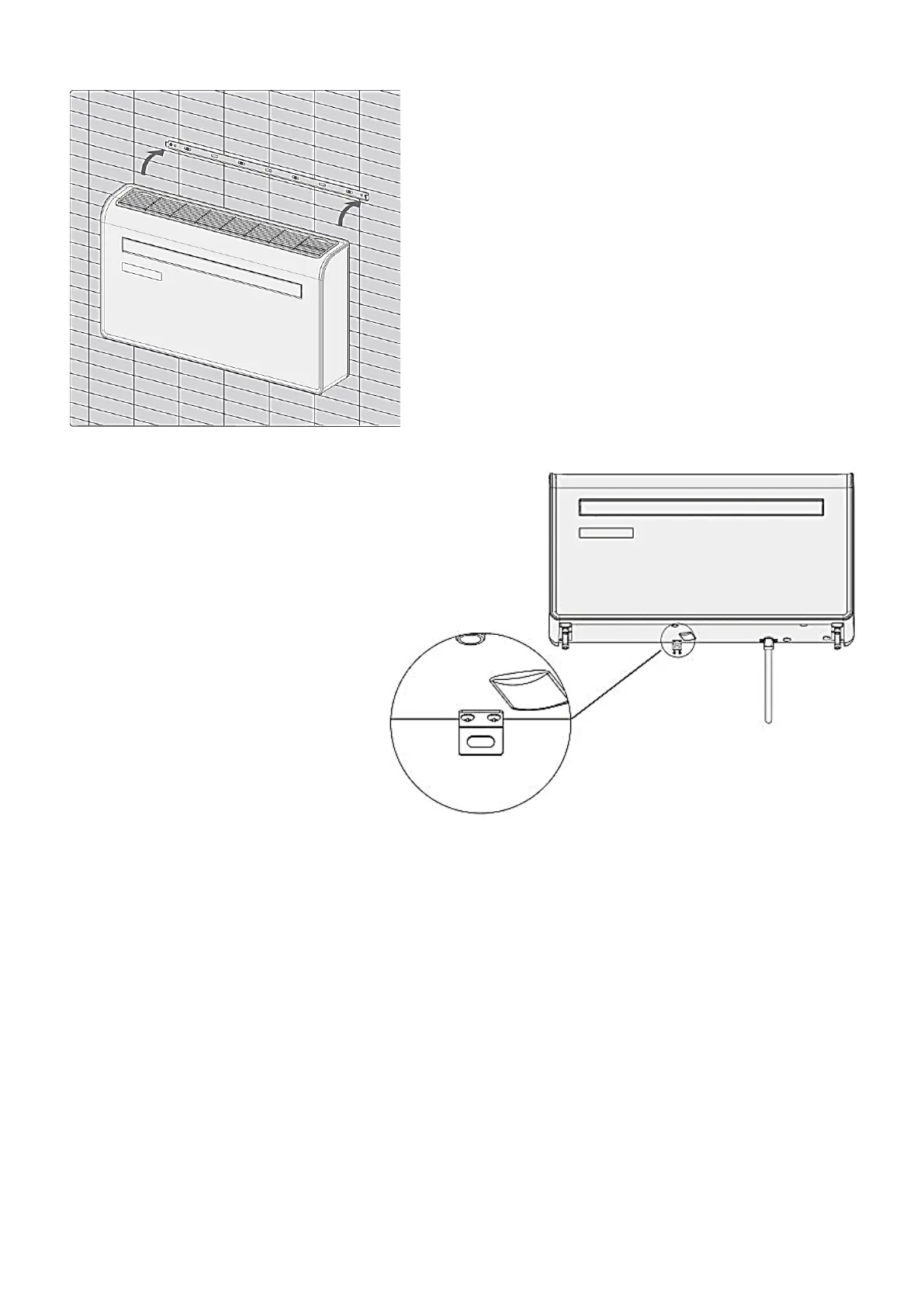

Lift the unit onto the wall, align the hanging holes with
the hooks on the hanging rail and gently rest the unit
into place. At the same time, slide the drain pipe
through the drainage hole. If the wireless controller
(Available separately) has been purchased, it should
then be installed and connected.
NOTE: The end of the external water pipe must be
placed in an open space or drain. Avoid damage or
constriction to the drainage pipe to ensure the unit
drains.
Place the bracket in position on the
under side of the unit and mark the
position of the screw hole on the wall.
Remove the bracket and drill a hole
using a 8mm drill bit before inserting
a wall plug.
Fix the bracket into position on the
underside of the unit using the 2
small screws. Then attach the
bracket to the wall using a screw
through the wall plug previously
inserted.
