AIR PURGING WITH VACUUM PUMP
Please note this should be completed for each refrigerant
circuit (each indoor unit)

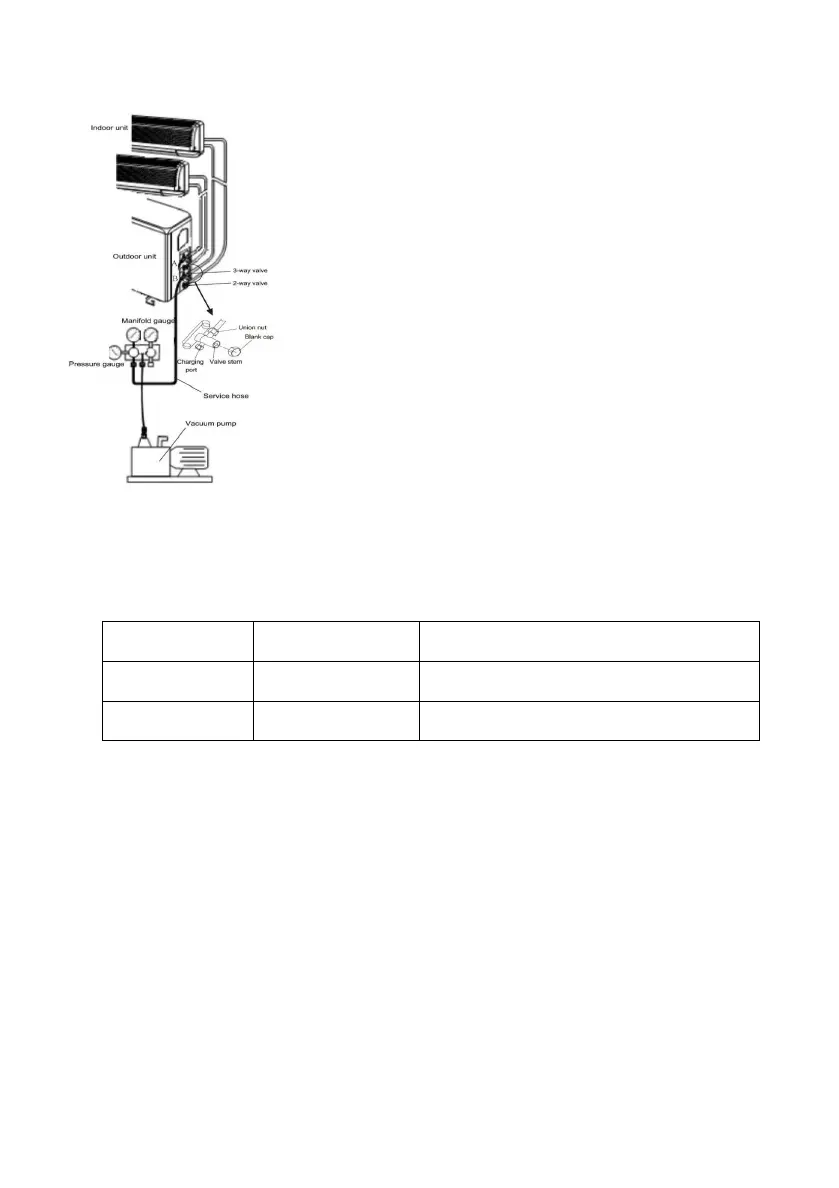

1. Check that pipelines connection have been properly
connected, remove the charging port cap, and connect the
manifold gauge and the vacuum pump to the charging valve
using service hoses as shown
2. Open the valve on the low-pressure side of the manifold
gauge, then run the vacuum pump. Vacuum the indoor unit and
the connecting pipes until the pressure in them lowers to below
1.5mmHG (The operation time for vacuuming is about 10
minutes). When the desired vacuum is reached, close the low
pressure valve on the manifold and stop the vacuum pump.
3. Disconnect the service hoses and fit the cap to the charging
valve.
4. Remove the blank caps, and fully opens the spindles of the 2-
way and 3-ways valves with a service valve wrench.
5. Tighten the blank caps of the 2-way and 3-ways valves,
applying the torque listed in the table above.
ADDING REFRIGERANT
Refrigerant must be added if the pipe length is more than 5 metres (16'5"). This
operation can only be performed by a professional F-Gas engineer, for the additional
gas amount, see the below
Liquid pipe
diameter
Additional
Refrigerant
Additional Refrigerant
Φ6.3 or Φ6 (1/4)
15g per each meter
added
Total length of pipe run 5 meters) x 15 g
Φ9.52 or Φ9 (3/8)
25g per each meter
added
Total length of pipe run 5 meters) x 25 g
GAS LEAKAGE INSPECTION
After the pipeline connection is done, use a leakage inspection device to carefully check
if there is any leakage at the joints. This is an important step to ensure the quality of
installation. Once a leak is detected, proper action should be taken immediately.
