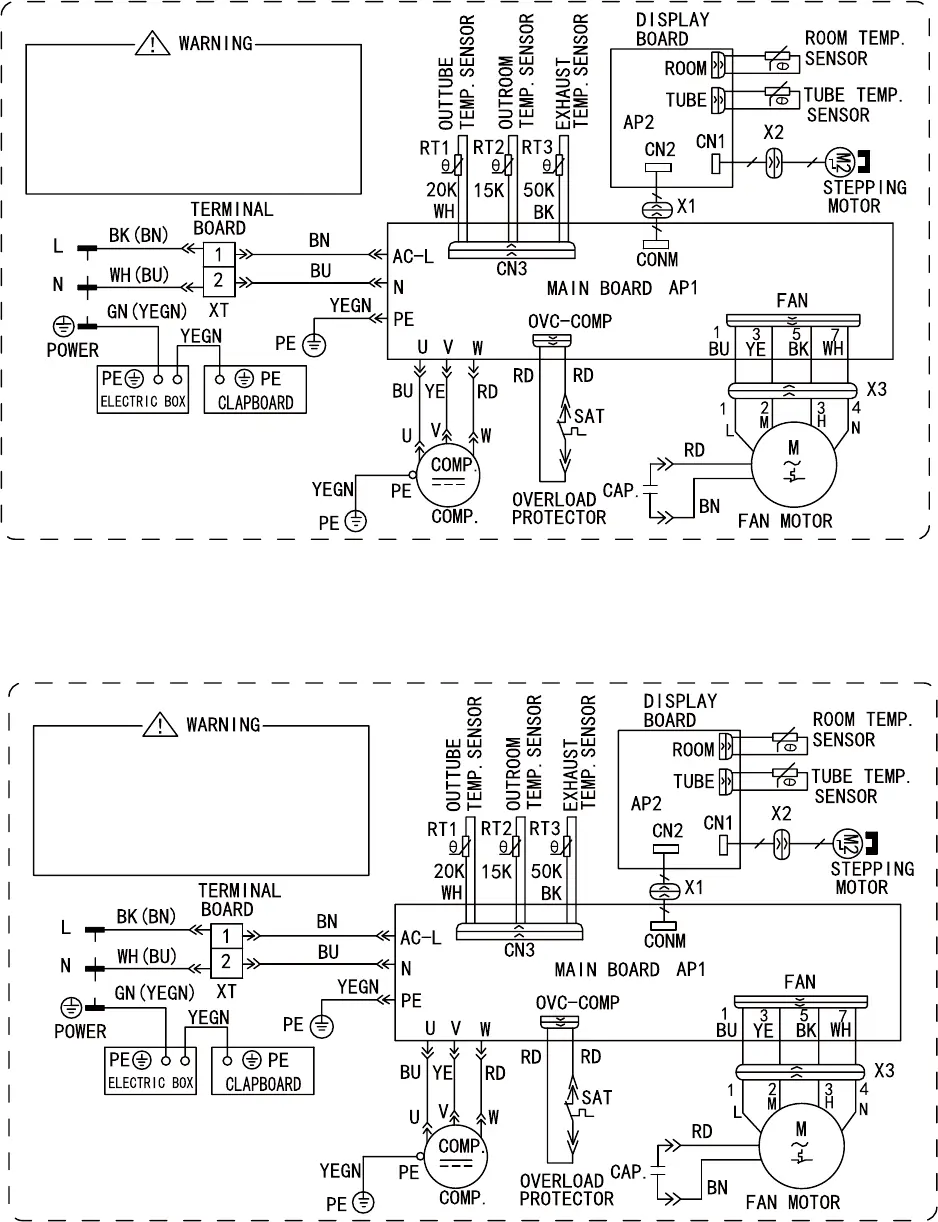

ELECTRICAL WIRING DIAGRAMS
Please don't touch any terminal
when the voltage of terminal
P(DC+) and N(DC-) at AP1 is
higher than 30V to prevent the risk
of electric shock !
These wiring diagrams are subject to change without notice; please refer to the one supplied with the unit.
6361000030401
eiq-WWU9K
eiq-WWU12K
Please don't touch any terminal
when the voltage of terminal
P(DC+) and N(DC-) at AP1 is
higher than 30V to prevent the risk
of electric shock !
These wiring diagrams are subject to change without notice; please refer to the one supplied with the unit.
6361000030401
