22

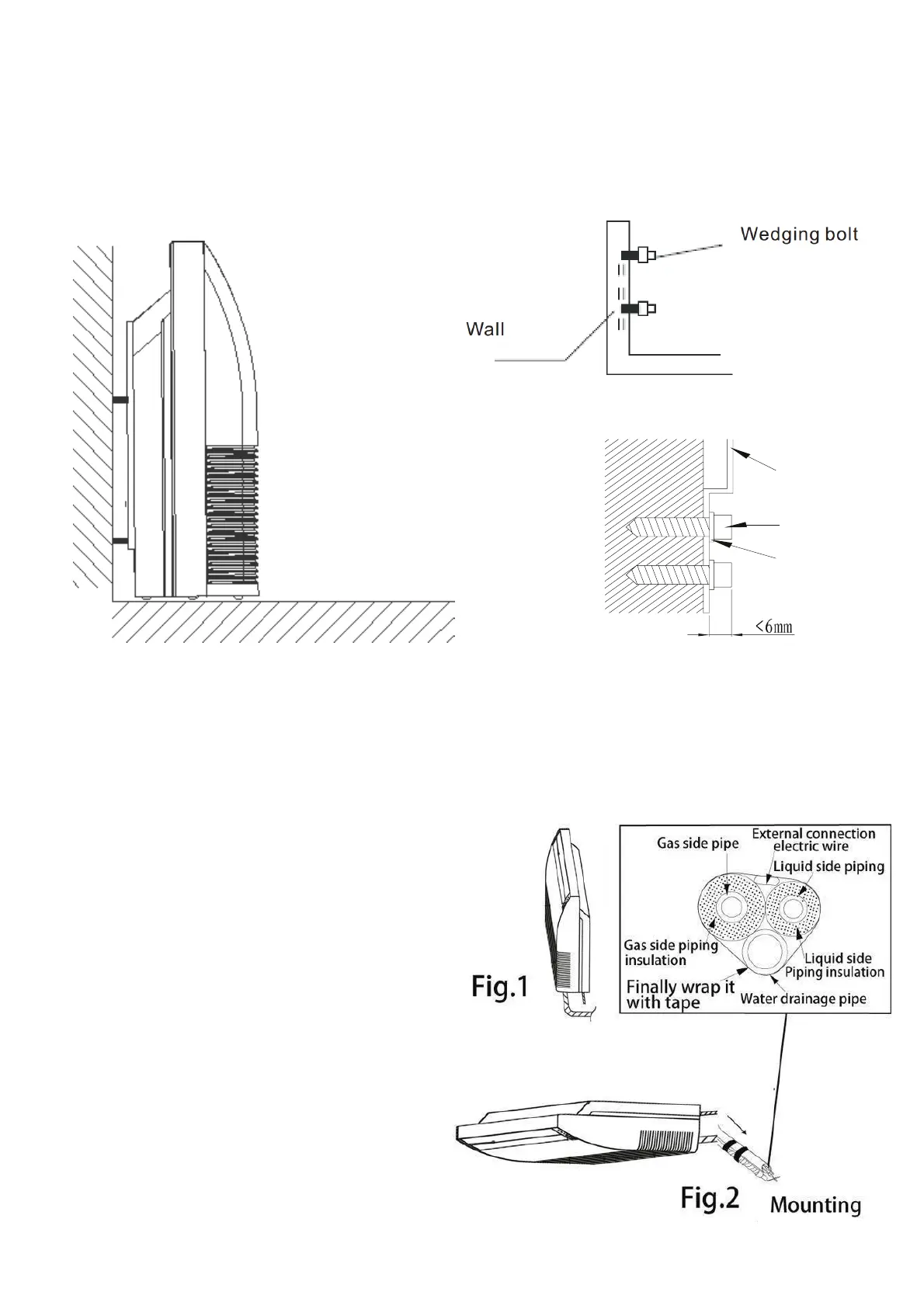

FLOOR / WALL MOUNTING
For floor or wall mounting use embedded or expandable bolts strong enough for the type of wall.
Install the unit with the control panel facing up similar to a radiator and make sure it is correctly
aligned and level.
Make sure that the drain pipe is underneath the pipelines. (When the drain pipe passes the room
interior, some condensed water might occur to its surfaces if the humidity is very high).
Tidy up the copper pipes, electrical cables and water drains and pass them through the piping
wall hole drilled before.
Notes:
1.
Either the indoor unit or the outdoor
unit can be higher, but the height
difference must comply with a max. 5
metres level difference.
2.
Try to reduce the bending of the pipes
as much as possible so as to avoid
possible negative impacts upon the
performances of the unit.
3.
Unit can be installed both vertical (floor
or wall mounting – fig1) or horizontal
(ceiling or embedded mounting – fig2).
Run the pipes on the back of the indoor
unit according to the install type
