10 | ELCO GmbH
Product information
Operation manual 50.0 | Status 10.2021

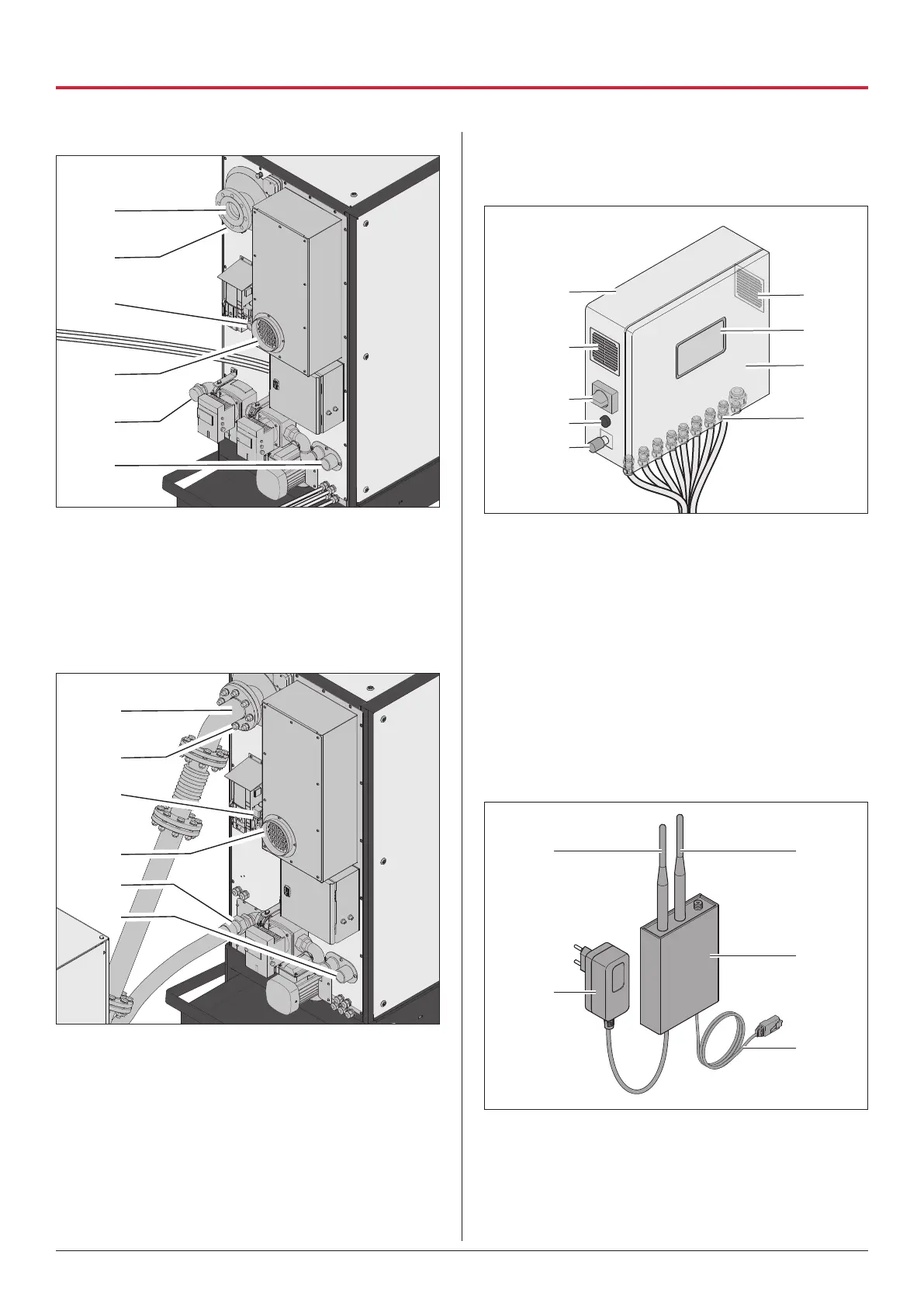

Connections (50.0 Standard, 50.0 High temperature)
A
B
C
D
E
F
A “Flue gas” connection
B “Condensate” connection
C “Gas” connection
D “Combustion air” intake
E “Buffer water return line” connection
F “Buffer water supply line” connection
Connections (50.0 Calorific value)
A
B
C
D
E
F
A “Flue gas” connection
B “Condensate” connection
C “Gas” connection
D “Combustion air” intake
E “Buffer water return line” connection
F “Buffer water supply line” connection
3.5.2 Control cabinet
The control cabinet contains all the components
required to control the system.
A
G
F
B
H
B
E
C
D
A Housing
B Aeration and ventilation
C Control cabinet door
D Emergency stop reset
E Emergency stop switch
F Operational display
G Master switch
H Cable bushings
3.5.3 Modem
The modem makes it possible to monitor the system
remotely and read data via the mobile communications
network.
E
C
A
D
B
A Antenna (slot “mobile”)
B Antenna (slot “mobile”)
C Power supply
D LTE modem
E Connection cable (slot “LAN 1”)
