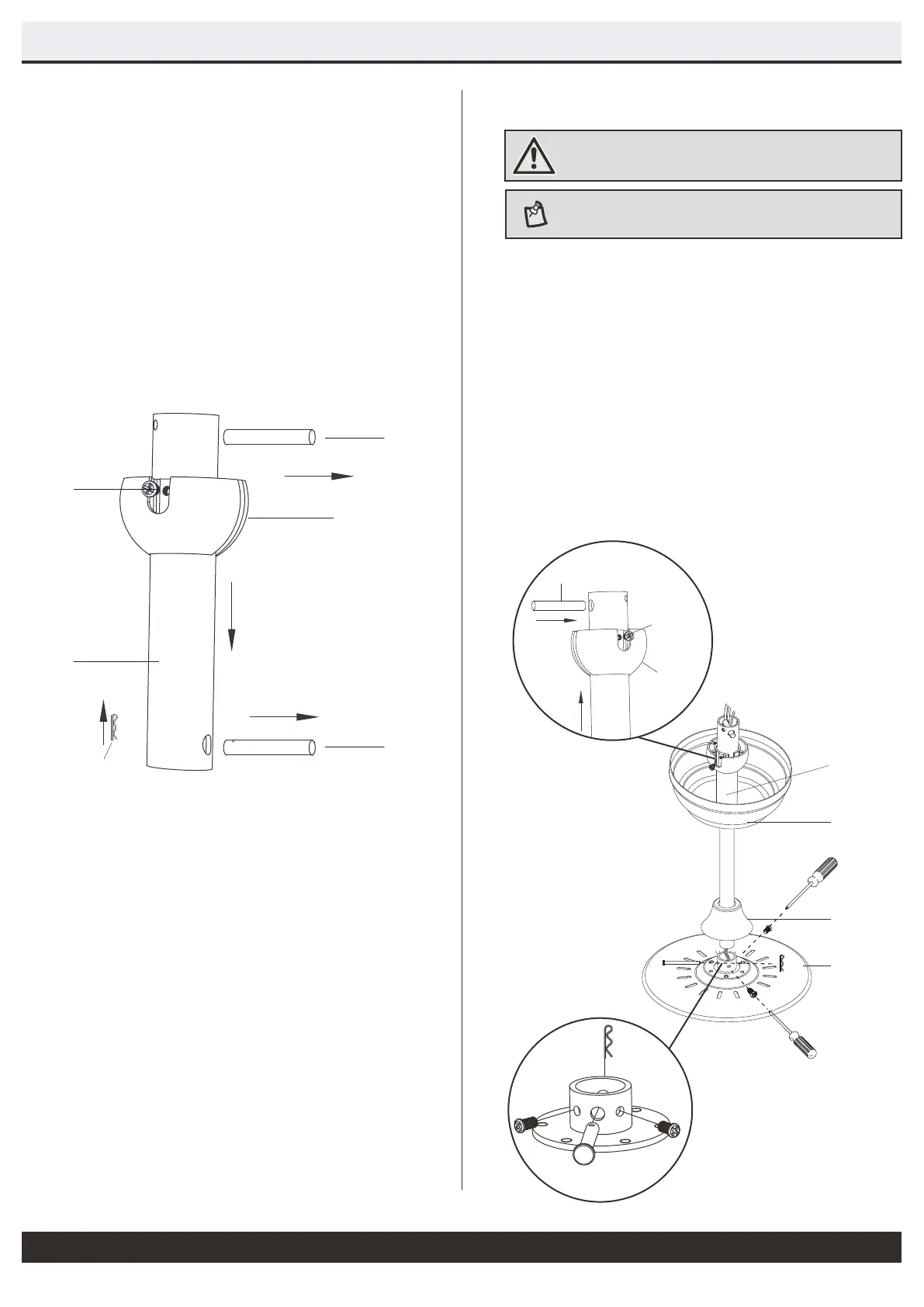

Assembly-Standard Ceiling Mount
2.Assembling the fan
¨ Thread the top outlet wire of the Fan
Motor Assembly (F) through Coupling
Cover(E), Down rod(C/D).
¨ Insert the Down rod(C/D) through the
Coupling Cover(E) into the motor
coupling (PP),Insert pin(C3),Secure
with R-shaped clips, Tighten the Set
Screw.
¨ Place the Canopy (B) and hanger ball
over lead wires and Down rod assembly
(C/D). Secure the hanger ball with a pin
(C1) and a set screw.Tighten the set
screw to secure the Down rod
assembly(C/D).
1.Remove the suspension ball
20
Set screw
Pin(C1)
Hanger
Ball(C2)
C
¨ Remove the Ball(C2) from the Hanger
Down rod assembly(C) by loosening the
set screw and removing R-shaped, the
metal Pin (C1)and Pin (C3) as shown.
Keep parts.
Pin(C3)
R-shaped
Pin(C1)
Set screw
Hanger ball
B
C/D
F
E
WARNING: make sure the pin installed well
on hanger ball with down rod.
NOTE:There are different lengths of Down rods,
choose one according to your own needs.
