www.elationlighting.com
13 VOLT Q5™ User Manual ver 1

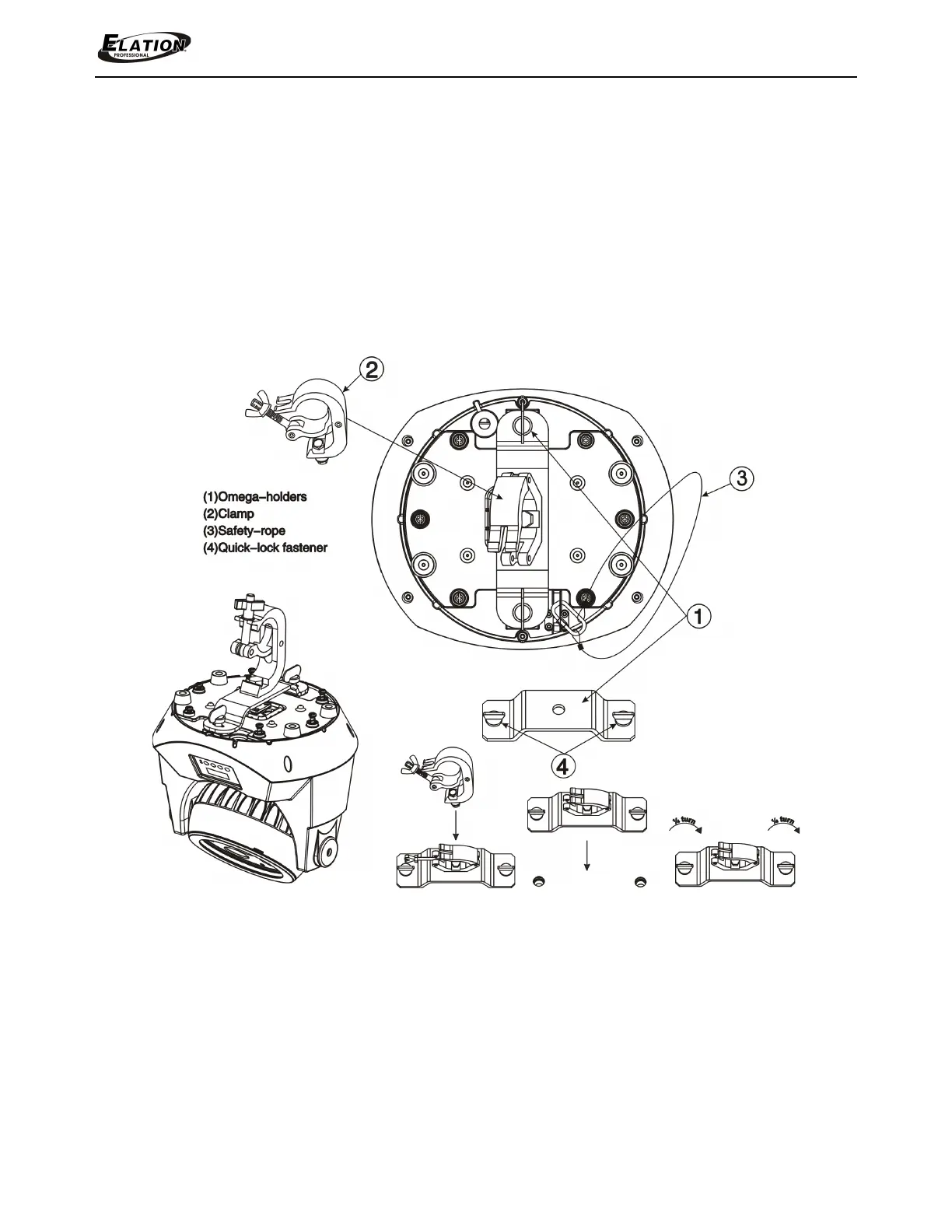

CLAMP MOUNTING
The VOLT Q5
™
provides a unique mounting bracket assembly that integrates the
bottom of the base, the included Omega Bracket and safety cable rigging point in
one unit (see the illustration below). When mounting this fixture to truss be sure to
secure an appropriately rated clamps to the included omega brackets using a M10
screw fitted through the center hole of the Omega Bracket. Be sure to attach the
included Safety Cable to the fixture using the safety cable rigging point integrated
in the base assembly.
SECURING
Regardless of the rigging option you choose for your VOLT Q5
™
always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for
a safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.
