46
REMOTE CONTROL
This unit can be operated using the Elation IR remote control. This capability can be enabled
in the System Menu by navigating to Settings > IR Active. When using the IR remote to control
multiple units that are operating in primary/secondary mode, follow these steps to set up the
units:
1. Power on the unit, and press MODE to scroll to the “Control” menu, then press ENTER.
2. Use the UP and DOWN buttons to scroll to either “Primary” or “Secondary” sub-menu,
depending on what status will be assigned to this unit. Press ENTER, then use the UP and
DOWN buttons to toggle the setting to “On”. Press ENTER to conrm.
3. Press MODE to navigate to the “DMX” menu, and press ENTER to conrm.
4. Use UP and DOWN to scroll to “Aria Settings” sub-menu and press ENTER.
5. Use the UP and DOWN buttons select either “2.4GHz Chan” or “Sub Gig Chan”, depending
on which frequency setting the unit has been set to. Press ENTER, then use UP and DOWN
to set the unit to the desired wireless channel.
6. Repeat these steps for each unit. Please note that all units should be set to the same
wireless channel.
NOTES:
• Only one unit should be congured as the primary, while all the other units should be
congured as secondaries.
• All units in the system should be set to the same wireless channel. If all units are set to the
same wireless channel, and the units do not sync up and/or respond to commands, try using
a dierent channel.
• All units should be set to the same DMX channel mode.
• If xtures fail to sync, verify that all settings mentioned above are the same, then power
all devices o, then switch them on again to re-establish the link.

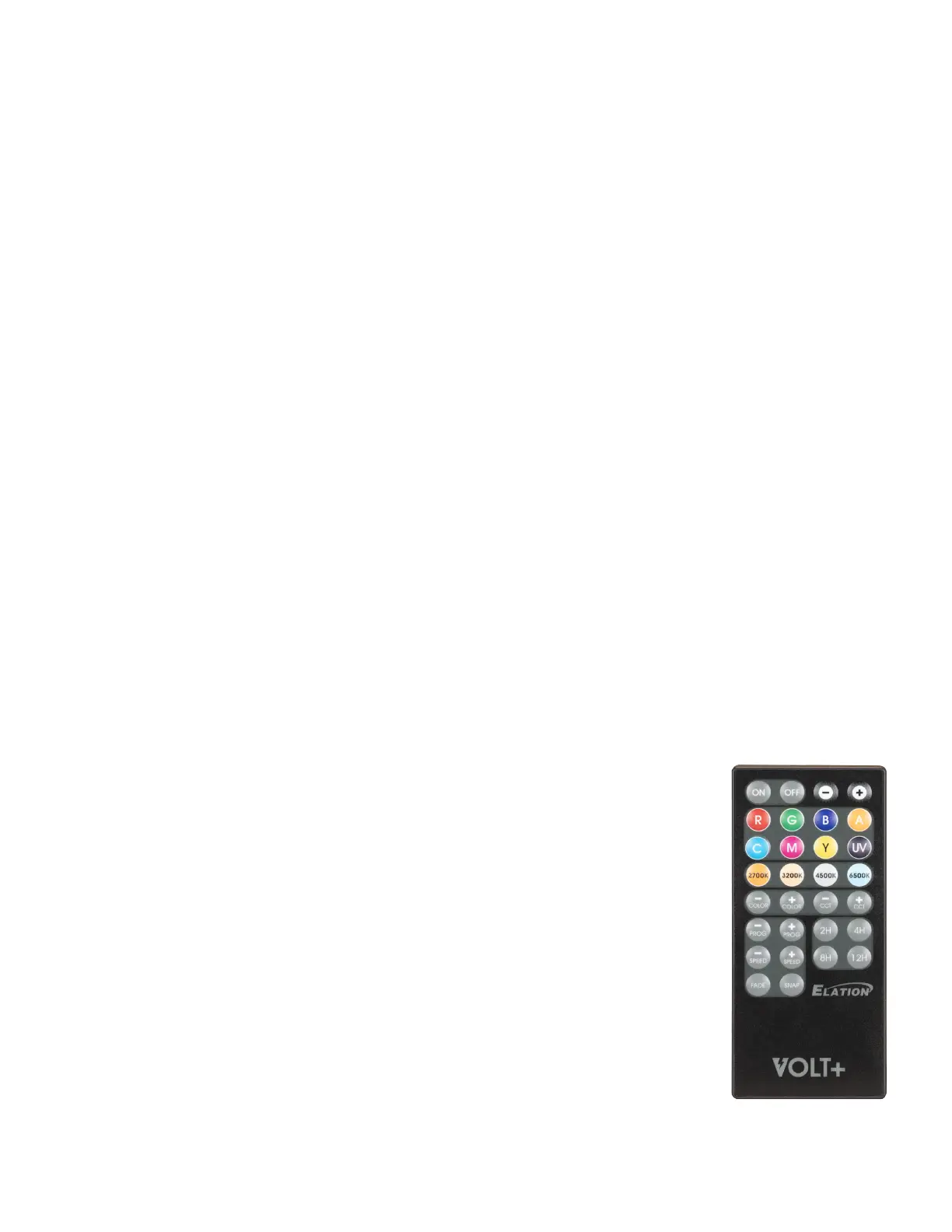

CONTROLS
• ON and OFF: Turns LED output on or off.
• + and - buttons: These buttons are used to adjust brightness. 11
levels are available.
• R/G/B/A/C/M/Y/UV: Press to enable or disable the color indicated on
each button.
• 2700K/3200K/4500K/6500K: Press to enable or disable the color
temperature setting indicated on each button.
• -COLOR/+COLOR: Activate color wheel, and rotate color wheel
forward or backward.
• -CCT/+CCT: Activate color temperature, and decrease or increase the
color temperature by increments of 100K.
• -PROG/+PROG: Activate internal programs, and cycle through
programs in forward to backwards order.
• -SPEED/+SPEED: Decrease or increase the speed of the selected
program.
• FADE: Set the internal program transitions to fade.
• SNAP: Set the internal program transitions to snap.
• 2H/4H/8H/12H: Event run time settings - use to adjust output for extended battery life.
