12
INSTALLATION GUIDELINES

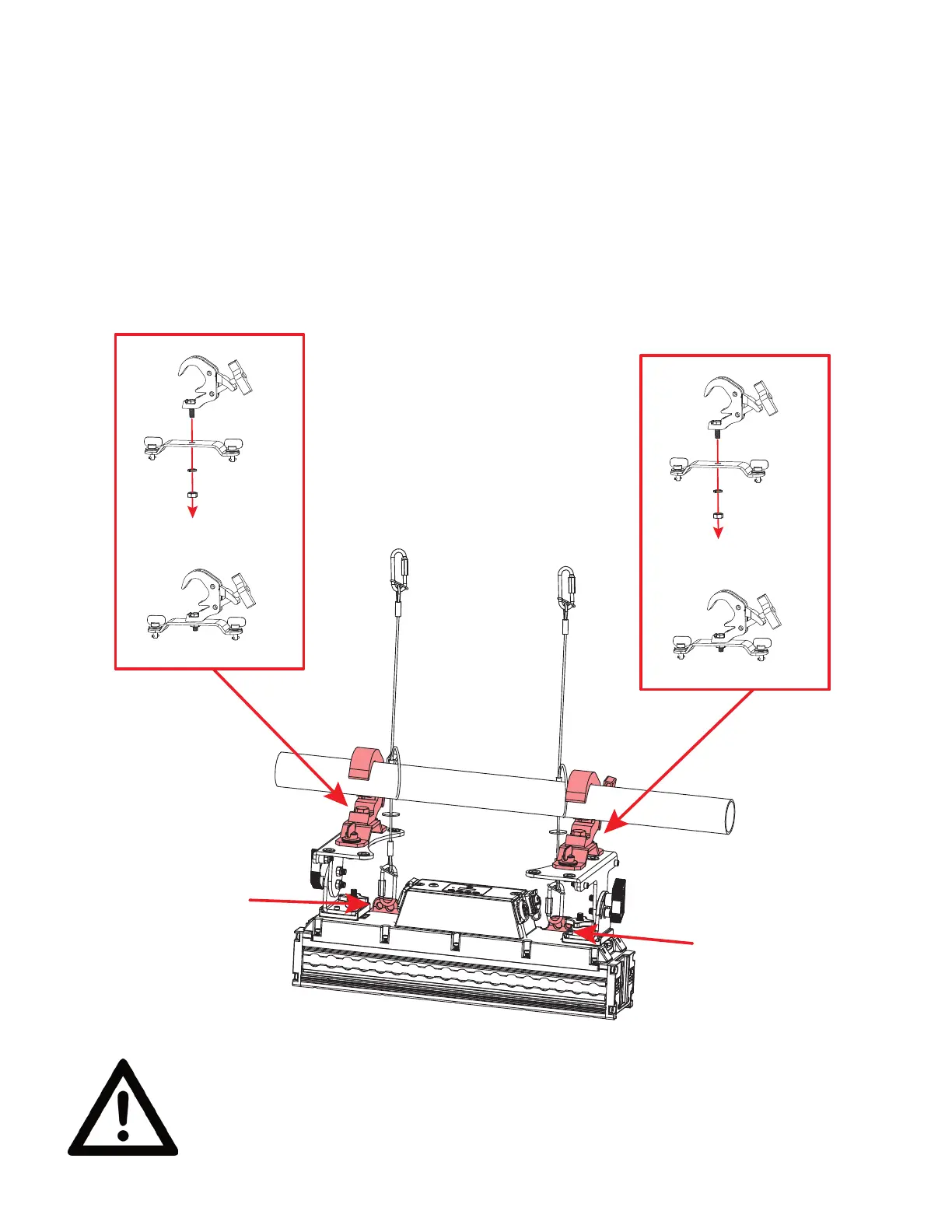

CLAMP INSTALLATION: Insert a bolt of appropriate size and rating for the desired clamp through
the mounting hole of the clamp, and then insert it into the center hole on the Omega bracket.
The bolt should pass through both the clamp and the Omega bracket. Thread a matching washer
and locking nut onto the shaft of the bolt that extends out from the underside of the Omega
bracket. Then, insert the two Omega bracket twist-lock fasteners into the mounting holes on the
xture’s mounting brackets, and twist to secure in place. Please note that two mounting clamps
are required to safety and securely install this xture.
SAFETY CABLE: The xture provides a built-in rigging points for a Safety Cable on the rear of the
xture, near the power and DMX ports. Be sure to only use the designated rigging points for the safety
cable, and never rely on any other location on the xture to secure the safety cable.
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE
IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT
FALL IF THE CLAMP FAILS. ONLY USE DESIGNATED RIGGING POINTS FOR
SAFETY CABLE, AND NEVER ATTACH A SAFELY CABLE TO A CARRYING
HANDLE.
SAFETY CABLE
ATTACHMENT
POINT
SAFETY CABLE
ATTACHMENT
POINT
