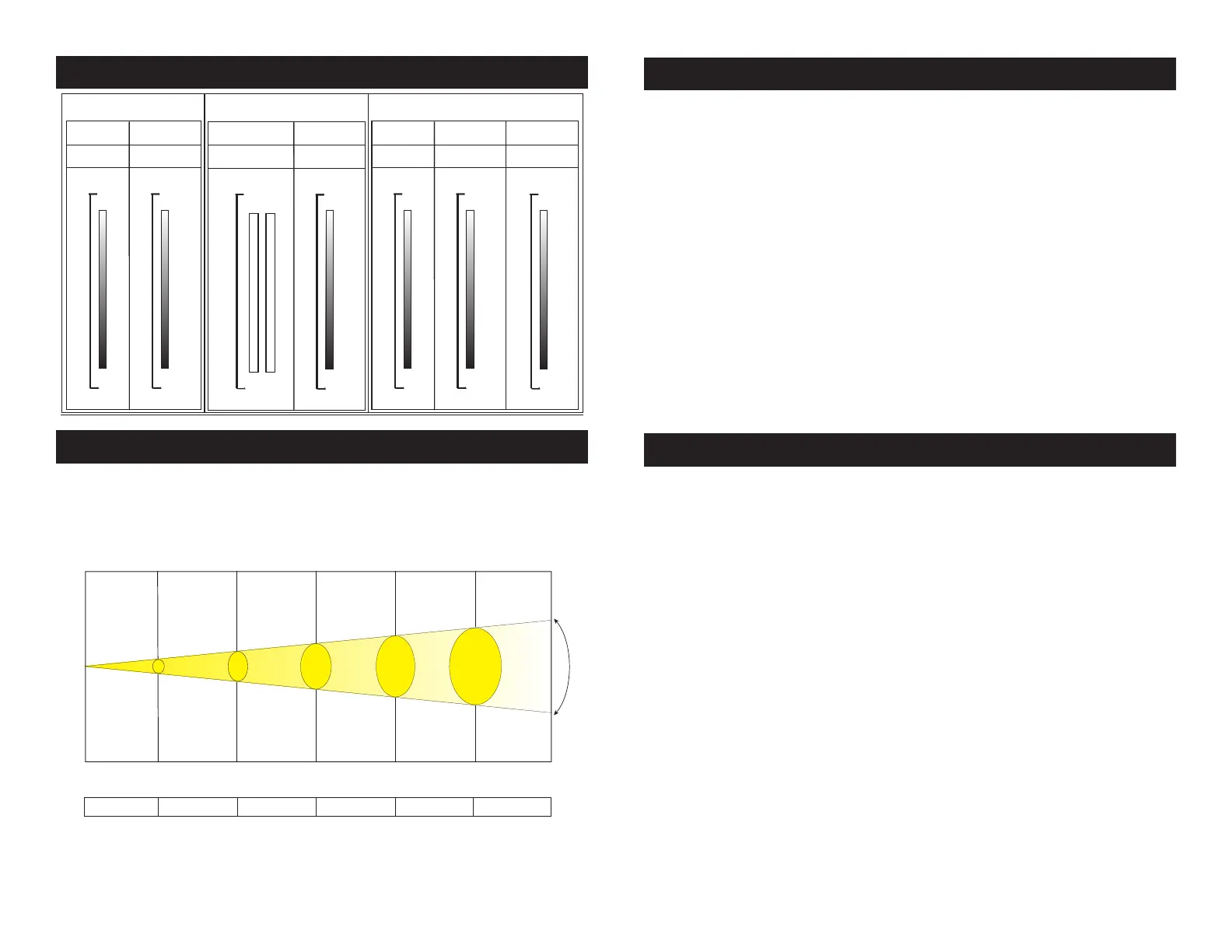

©Elation Professionals® - www.elationlighting.com - TVL4000 II User Manual Page 15
TVL4000 II DMX Modes & Traits
DMX 512 configuration
255
255
255
255
255
255
255
0
0
0
0 0
0
0
0
0
0
0
100%
100%
100%
100%
100%
100%
100%
100%
0%
0%
0% 0%
0%
0%
0%
0%
Color Mix
Ch1 Ch1Ch1 Ch1Ch1 Ch1Ch1 Ch1
Ch1
Mode 1
Mode 3
Mode 2
Mode
CW CWCW CW
WW
Dimmer
Dimmer
WW
Ch2 Ch2
Ch2
Ch2 Ch2
Ch3
Warm White
Cool White
WARM WHITE (3200K)
COOL WHITE (6500K)
FULL ON (4500-5000K)
352 FC / 3800 LUX
446 FC / 4800 LUX
790 FC / 8500 LUX
30° Beam Angle
LUX
x
0.0929 = FC
0 m
0 ft
1 m
3.3 ft
4 m
13.1 ft
3 m
9.8 ft
2 m
6.6 ft
5 m
16.4 ft
Ø 1.0 m / Ø 3.3 ft
Ø 1.6 m / Ø 5.2 ft
Ø 2.1 m / Ø 6.9 ft
Max Beam Diameter
30° Beam Angle Ø 2.6 m / Ø 8.5 ftØ 0.5 m / Ø 1.6 ft
139 FC / 1500 LUX
177 FC / 1900 LUX
316 FC / 3400 LUX
65 FC / 700 LUX
84 FC / 900 LUX
146 FC / 1570 LUX
39 FC / 420 LUX
50 FC / 542 LUX
87 FC / 940 LUX
27 FC / 293 LUX
34 FC / 362 LUX
59 FC / 630 LUX
TVL4000 II Photometric Chart
©Elation Professionals® - www.elationlighting.com - TVL4000 II User Manual Page 16
TVL4000 II Cleaning
TVL4000 II Trouble Shooting
Trouble Shooting: Listed below are a few common problems that
you may encounter, with solutions.
1. The unit does not work, no light and the fan does not work
- Check the power connection on both the unit and power source.
2. Not responding to DMX controller
- DMX LED should be on. If not, check DMX connectors and cables
make sure they are linked properly.
- If the DMX LED is on and no response to the channel, check the
address settings
- If you have intermittent DMX signal problems, check the pins on
connectors.
- Try to using another DMX controller.
- Check if the DMX cables run near or run alongside high voltage
cables that may cause damage or interference to DMX interface
cir cuit.
Fixture Cleaning: Due to fog residue, smoke, and dust cleaning
the internal and external optical lenses and mirror should be carried
out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates (I.e. smoke, fog
residue, dust, dew). In heavy club use we recommend cleaning on a
monthly basis. Periodic cleaning will ensure longevity, and crisp out-
put.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics and mirror with glass cleaner and a soft
cloth every 20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
