Operation Guide
AUDIO0 R G H
1. Press the Mode button to access the AUDIO
mode indicator will be lit on the LED-display.
And your unit will run with the music beat.
MODE
MENU UP
DOWN
STAND BY
DMX
SLAVE
AUDIO
AUTO
7 K L V I X Q F WL R Q Z L OOD OOR Z \ R X WR OL Q N X S WR someX Q L WV WR J H WK H UWR UX Q L Q D 6 OD Y H
M RGH, Q0 DVWHU6 ODYHRSHUDWLRQ, R Q H X Q L WZ L OOserveD V WK H MasterDQGWKH
RWKHUVZ LOOserve as the Slave.HRZ HYHUthe only RQHXQLWcanrun in AUTO or
AUDIO mode and others run in Slave mode.
And only some STREAMERs with the same DMX signals can be connected
together for Master-Slave operation successfully. Or else, it can result out of
control.
Master-Slave Operation
Operation Guide
RGB color and DMX value Table
DMX (N)
(Decimal)
0
1-2
3-33
34
35-65
66-69
70-100
101
102-132
133-136
137-167
168
169-199
200-206
207
208-210
211
212-215
216-218
219-222
223-225
226-228
229
230-232
233
234-236
237
238-240
241-244
245-247
248-251
252-254
255
Blue
(%)
0
0
0
0
0
0
(N-69)x3
100
100
100
100
100
100-(N-168)x3
(N-199)x12
100
100
100
100-(N-211)x12
50-(N-215)x6
25-(N-219)x6
(N-219)x6
25+(N-225)x6
50
50+(N-229)x12
100
100
100
100
100
100
100
100
100
Red
(%)
0
100
100
100
100-(N-34)x3
0
0
0
0
0
(N-136)x3
100
100
100
100
100-(N-207)x12
50
50-(N-211)x6
50-(N-215)x6
(N-217)x6
38+(N-223)x6
50+(N-225)x12
100
100
100
100-(N-233)x12
50
50-(N-237)x6
25-(N-241)x6
(N-243)x6
25+(N-247)x6
50+(N-251)x12
100
Green
(%)
0
0
(N-2)x3
100
100
100
100
100
100-(N-101)x3
0
0
0
0
(N-199)x6
50
50+(N-207)x12
100
100
100
100
100
100
100
100-(N-229)x12
50
50-(N-233)x6
25
25-(N-237)x6
(N-239)x6
(N-239)x6
50+(N-247)x12
100
100
Color
Black
Red
***
Yellow
***
Green
***
Cyan
***
Blue
***
Purple
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
White
NOTE:
1. " N " denotes DMX value(0-255).
For example:
If DMX value is 239, blue intensity will be 50-(239-237)x6=38%,
red intensity will be 25-(239-237)x6=13%,
green intensity be 100%.
2. " * " denotes unnameable color.
-Page8-

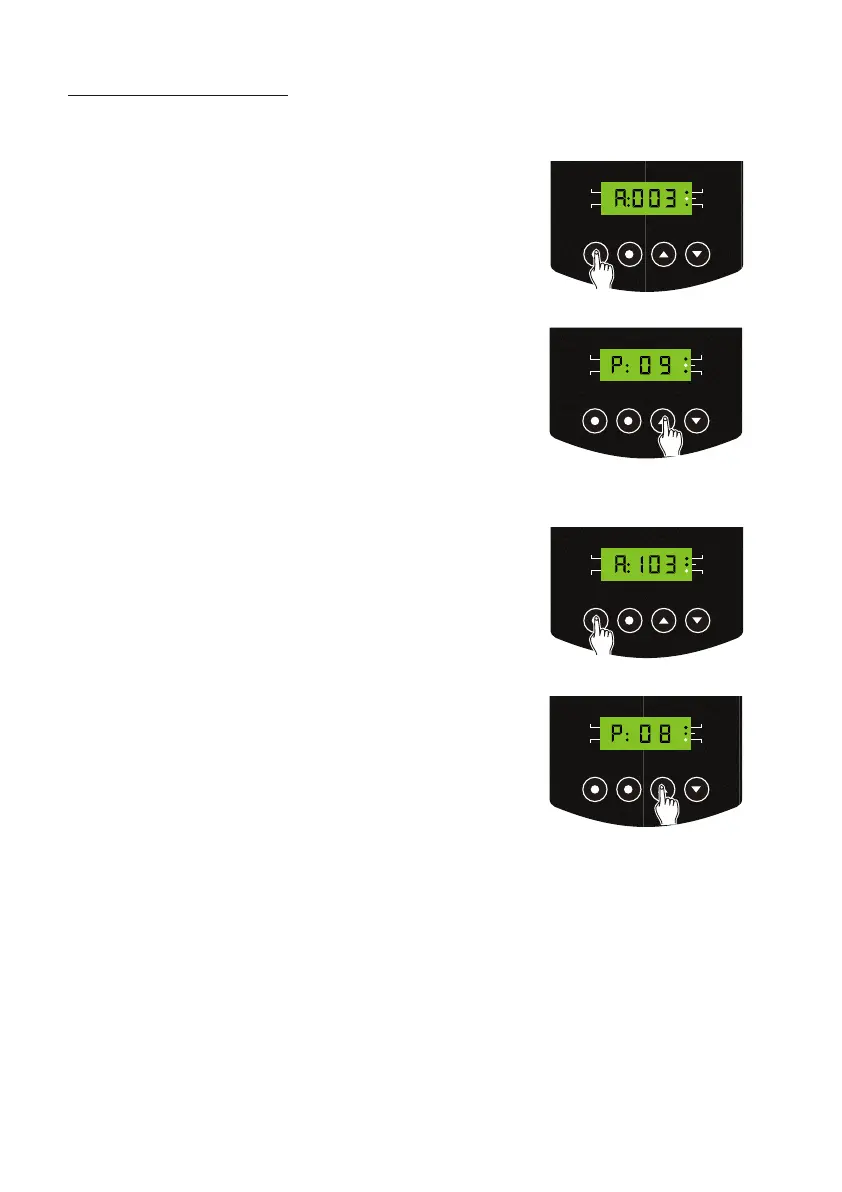

AUTO 0 R G H
1. Press the Mode button to access the AUTO
mode, the AUTO indicator will be lit on the
LED-display. And your unit patterns will run
automatically.
MODE
MENU UP
DOWN
STAND BY
DMX
SLAVE
AUDIO
AUTO
2. And use Up/Down button to select your
desired chasing patterns within the range
of 1-9 & AUTO.
MODE
MENU UP
DOWN
STAND BY
DMX
SLAVE
AUDIO
AUTO
2. And use Up/Down button to select your
desired chasing patterns within the range
of 1-9 & AUTO.
MODE
MENU UP
DOWN
STAND BY
DMX
SLAVE
AUDIO
AUTO
