©Elation Professional® - www.elationlighting.com - SC-816™ User Manual Page 8

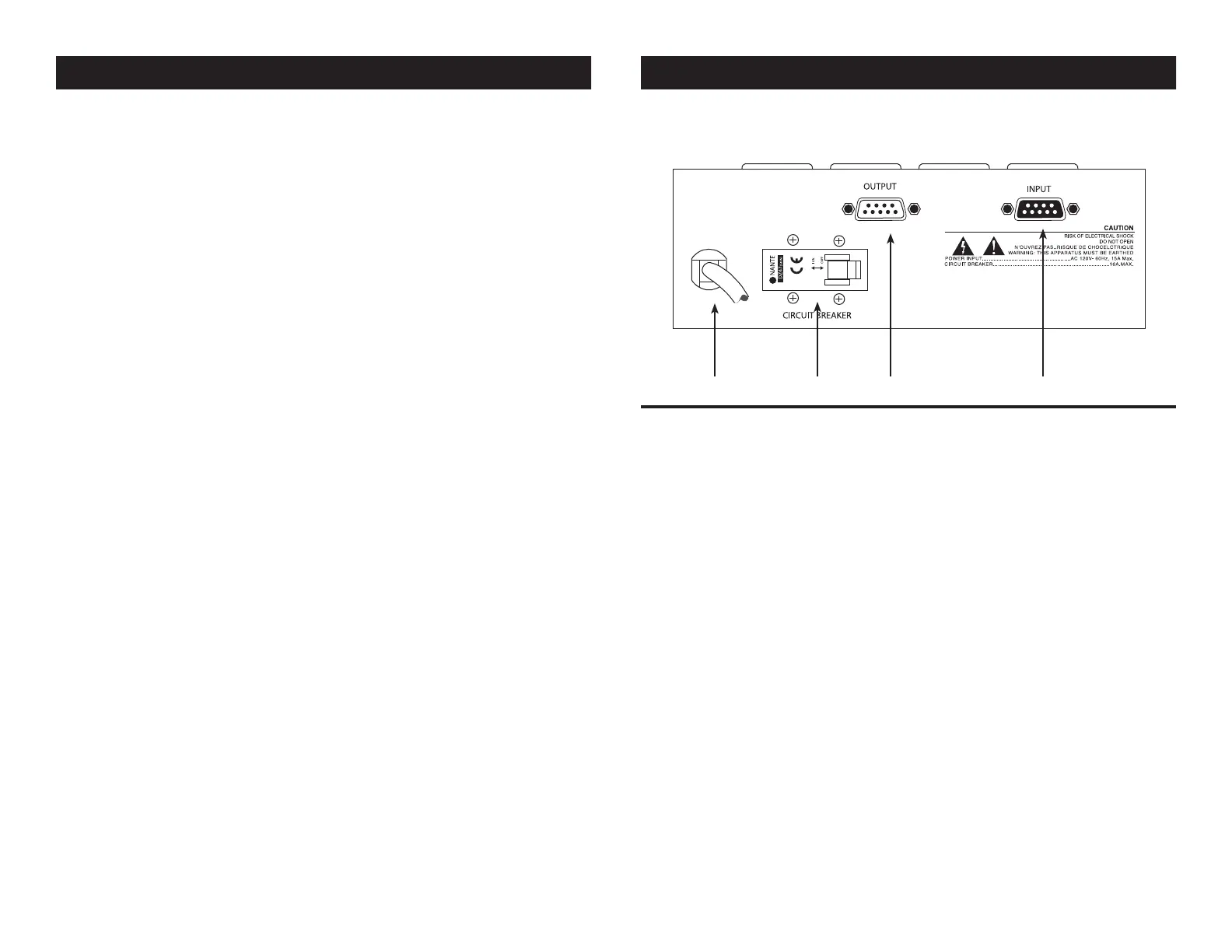

SC-816™ SC-8C Connections
13. AC Input - Connects to a standard AC outlet.
14. Circuit Breaker - Protects against the risk of electrical
shock or fire and protect the circuitry. In the case of an
internal short or power surge.
15. 9-Pin Output Connection - This connection is used to link
up other power packs. Up to three power packs can be
controlled by this unit.
16. 9-Pin Input Connection - Using the included 9-pin com
cable or LC Wireless, connect the SC-16F controller to
the SC-RP8 power pack. When using the cable for connec-
tion, up to three power packs can be controlled by this
unit. Also, when using the cable for connection the SC-16F
contoller can receive its operating power from the plugged
in SC-RP8 power pack.
13 161514
©Elation Professional® - www.elationlighting.com - SC-816™ User Manual Page 7
connect the T16F correctly via the 3-pin female DMX con-
nector. For more details, refer to the T16F user instructions.
5. Stand By Button - This button is used with the T16F. In
master mode of the T16F, pressing this button can activate
17 chase pattern or 7 fixed scenes. To utilize these
functions, please connect the T16F correctly via the 3-pin
female DMX connector. For more details, refer to the T16F
user instructions.
6. Flash Button - Pressing and holding the desired buttons will
allow you to turn on the corresponding channels temporarily.
This will be indicated by the lit LEDs above the Latch and
Flash buttons. Releasing the desired buttons will turn off the
channels.
7. Fog Machine Button - This button can be a trigger for con-
trolling a fog machine. For compatiable fog machines see
Fog Machine Connector (9).
8. Control Output - Using the included 9-pin com cable or LC
Wireless, connect the SC-16F controller to the SC-RP8
power pack. When using the cable for connection, up to
three power packs can be controlled by this unit.
9. Fog Machine Connector - Connects to a fog machine
using a 5-pin cable. Compatiable fog machines include the
Vaporizer™, Vapor Flow™, Fog Storm 1200™ and 1700™.
10. Foot Control Connector - Connection for the use of the
T16F.
11. Strobe Output - 1/4” mono jack for output to strobes.
12. DC Input - Connection for a power supply. This DC input
is used when the LC Wireless is being used. The power
supply is included with the LC Wirellsss
SC-816™ SC-816 Functions and Controls
