18!!!!!!!!!!!!!!!!!!!!!!!!!RAYZOR'Q12™'User'Manual'1.0
FIXTURE MENU
ON-BOARD SYSTEM MENU
The RAYZOR Q12™ comes with an easy to navigate system menu. The next section will
detail the functions of each command in the system menu.
LCD MENU CONTROL PANEL

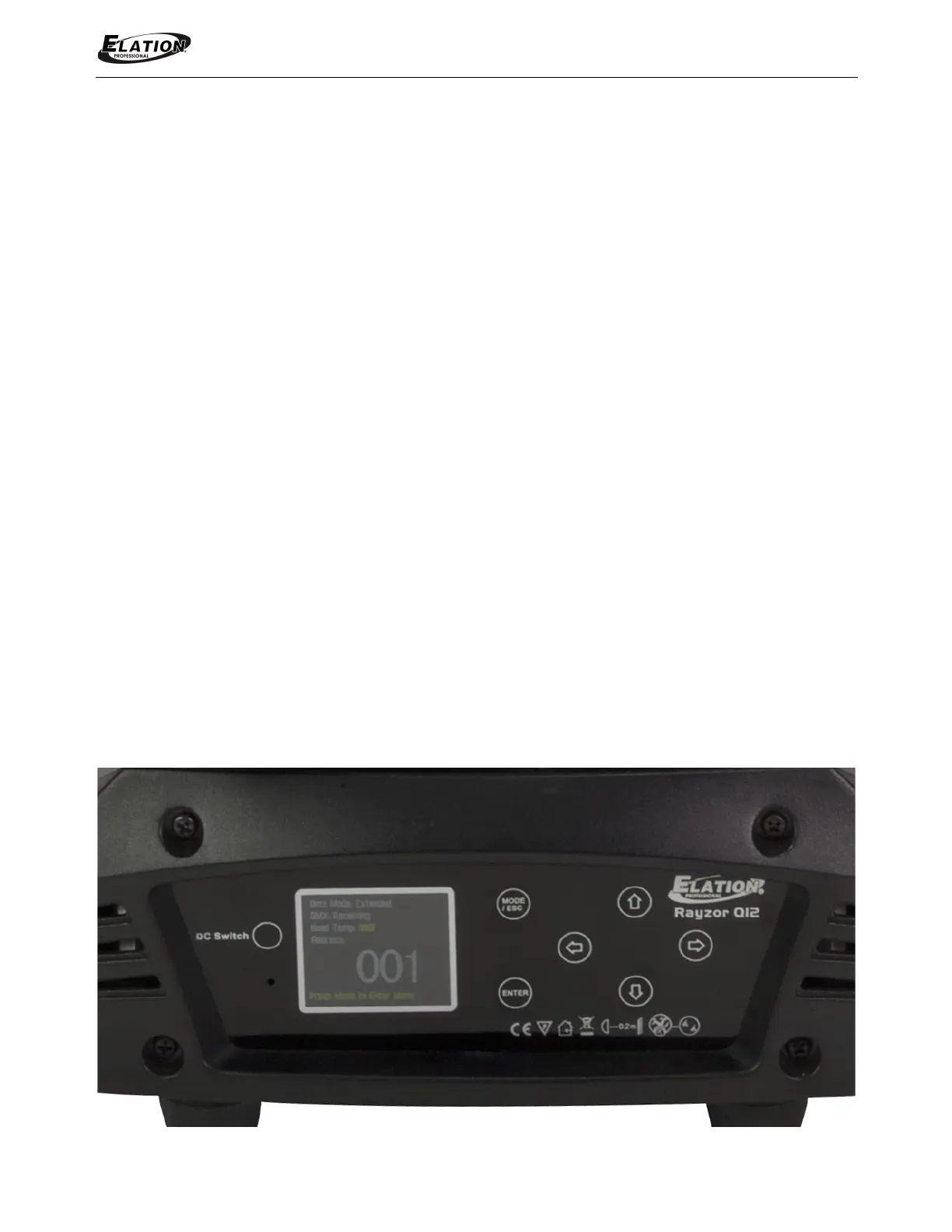

The control panel (see image below) located on back of the fixture allows you to access the
main menu and make all necessary adjustments to the RAYZOR Q12™. During normal
operation, tapping the MODE/ESC button once will access the fixture’s main menu. Once in
the main menu you can navigate through the different functions and access the sub-menus
with the UP, DOWN, RIGHT, and LEFT buttons. Once you reach a field that requires
adjusting, tap the ENTER button to activate that field and use the UP and Down buttons to
adjust the field. Tapping the ENTER button once more will confirm your setting. You may
exit the main menu at any time without making any adjustments by tapping the MODE/ESC
button.
NOTE: To access the LCD Menu Control Display via the internal battery, press and hold the
DC SWITCH button for 2 seconds. The LCD Menu Control Display will shut OFF
automatically about 1 minute from the last button press. To shut OFF the LCD Menu Control
Display immediately, set "Reset Default" menu option to “ON” in the “Personality” menu
and tap ENTER button to confirm your selection.
