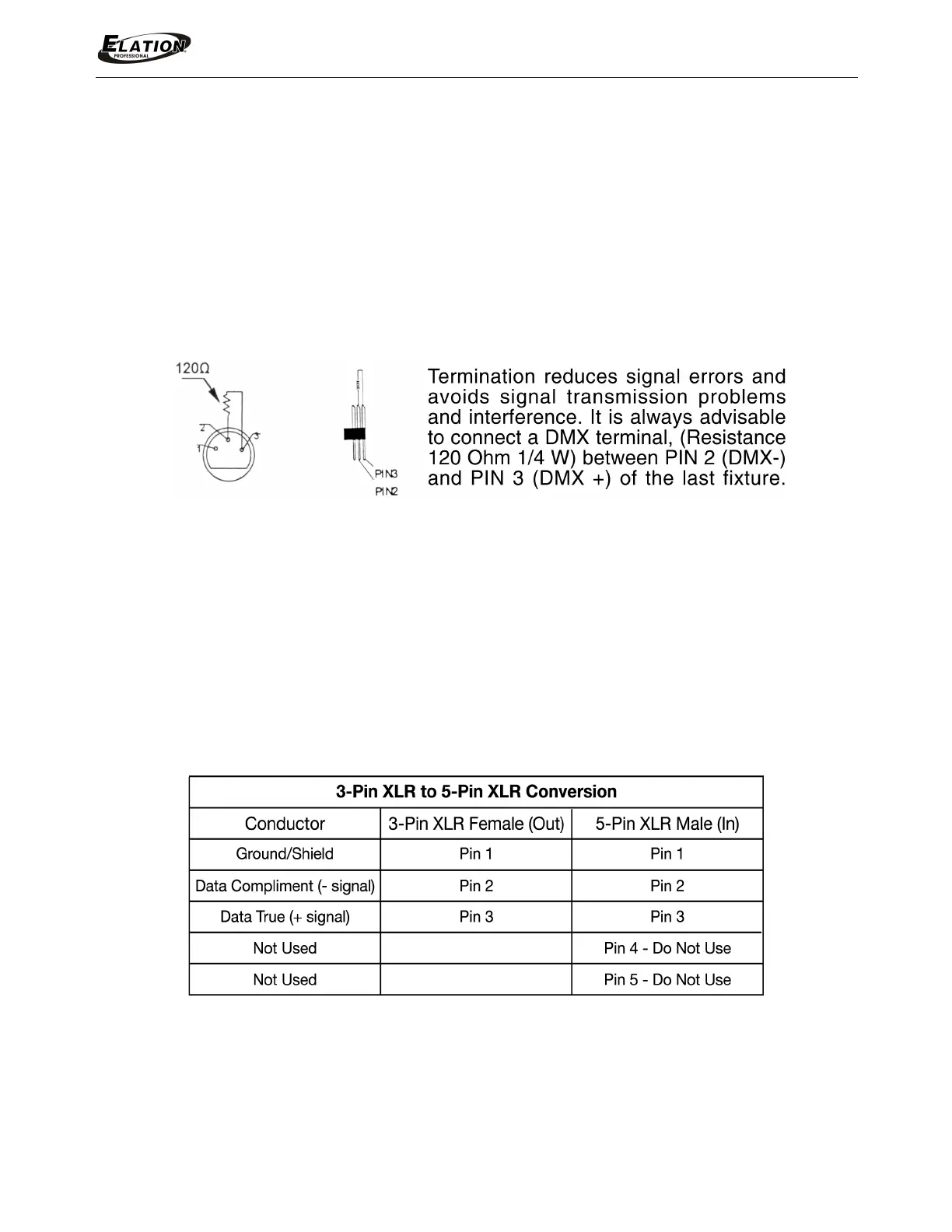

16!!!!!!!!!!!!!!!!!!!!!!!!!RAYZOR'Q12™'User'Manual'1.0
DMX-512 CONNECTION WITH DMX TERMINATOR
A DMX terminator should be used in all DMX lines especially in longer runs. The use of a
terminator may avoid erratic behavior in your DMX line. A terminator is a 120 ohm 1/4 watt
resistor that is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy
chain to terminate the line. Using a line terminator (Elation part: DMX T PACK) will decrease
the possibilities of erratic behavior.
5-Pin XLR DMX CONNECTORS
Some manufactures use 5-pin XLR connectors for DATA transmission in place of 3-pin.
5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard
5-pin XLR connectors in to a 3-pin line a cable adaptor must be used, these adaptors are
readily available at most electric stores. The following chart details a proper cable
conversion.
