www.elationlighting.com
17 RAYZOR Q12 ZOOM™ User Manual ver 1
FIXTURE MENU
ON-BOARD SYSTEM MENU
The RAYZOR Q12 ZOOM™ comes with an easy to navigate system menu. The next
section will detail the functions of each command in the system menu.
LCD MENU CONTROL PANEL

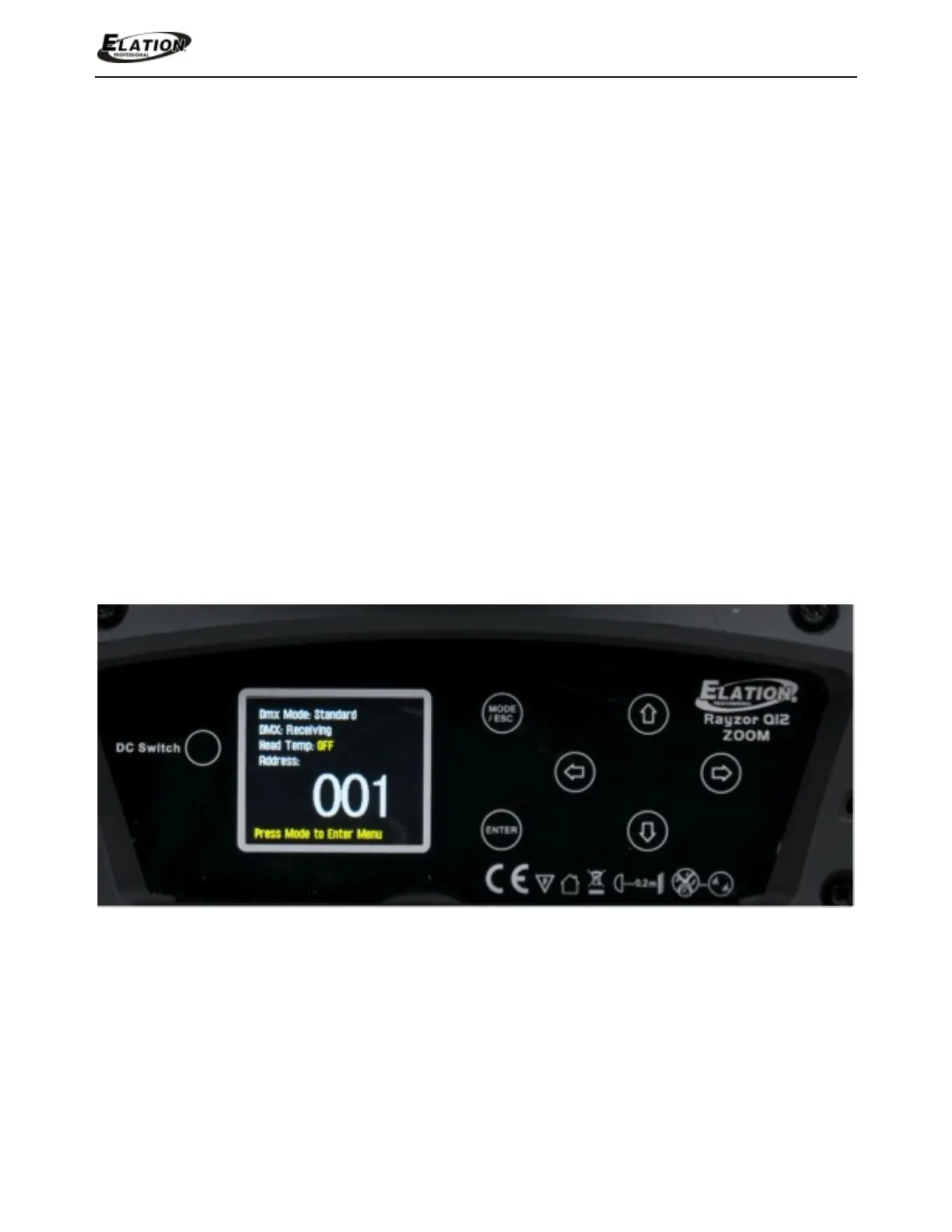

The control panel (see image below) located on back of the fixture allows you to
access the main menu and make all necessary adjustments to the RAYZOR Q12
ZOOM™. During normal operation, pressing MODE/ESC button once will access the
fixture’s main menu. Once in the main menu you can navigate through the different
functions and access the sub-menus with the UP, DOWN, RIGHT, and LEFT buttons.
Once you reach a field that requires adjusting, press the ENTER button to activate
that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER
button once more will confirm your setting. You may exit the main menu at any time
without making any adjustments by pressing the MODE/ESC button.
