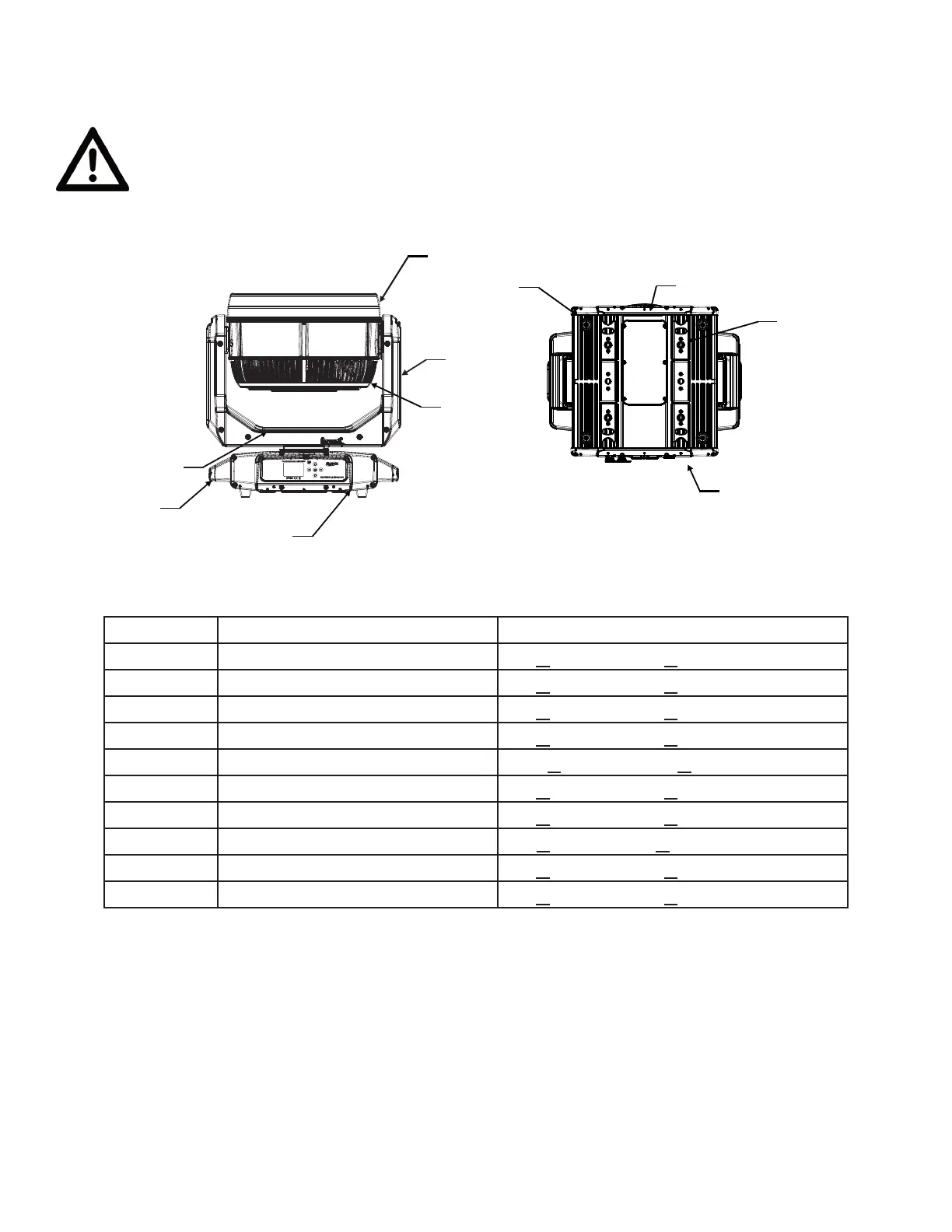

TORQUE SETTINGS FOR SCREWS
PANEL SCREWS MUST BE TIGHTENED WITH A TORQUE WRENCH. REFER TO THE
TABLE AND DIAGRAM BELOW FOR PROPER TORQUE SETTINGS.
ITEM NO. DESCRIPTION TORQUE SETTING
1 Upper Head Cover 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
2 Arm Cover 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
3 Lower Head Cover 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
4 Upper Arm Cover 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
5 Handle 20.0 + 2.0 lb-in (23 + 2.3 kgf-cm)
6 Display Board 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
7 Machine Leg 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
8 Bottom Seal Plate 5.2 + 0.5 lb-in (6 + 0.6 kgf-cm)
9 Quick Lock Base Holder 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
10 XLR Board 8.7 + 0.9 lb-in (10 + 1 kgf-cm)
1
2
3
4
5
6
7
8
9
10
