16
CAMERA COMPATABILITY AND INSTALLATION
3. Insert your nger at the point indicated
by the arrow, then press and push out to ip
the rubber stopper. You can then rotate the
network cable interface and BNC interface
through the opening and gently pull them out.
4. Insert the network cable and BNC cable
into the designated holes, then ip the
reversible rubber stopper back to its original
position to secure the cables.

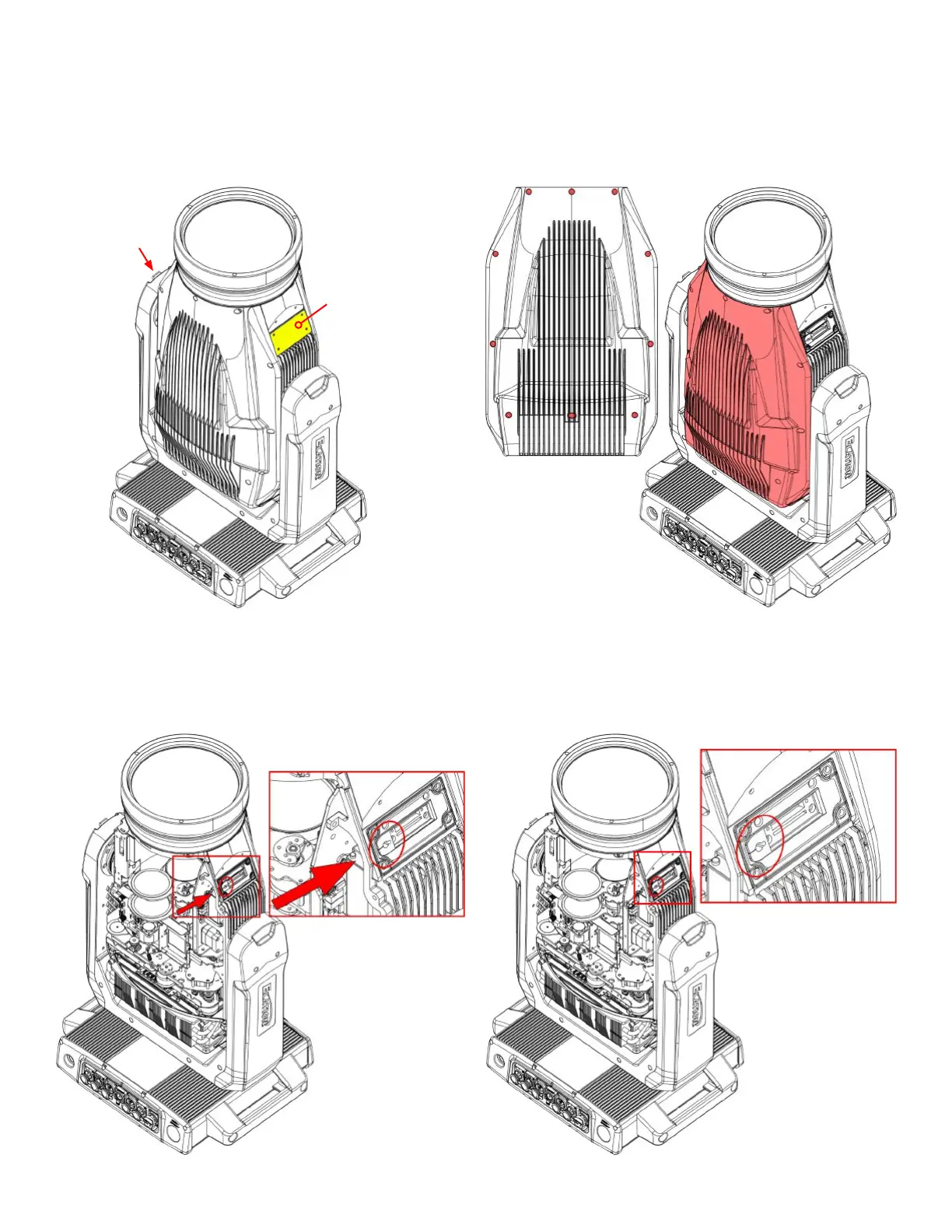

1. Remove (4x) screws and remove camera
cover as indicated in the diagram below.
2. Remove (10x) screws indicated in the
diagram below from the cover, or proper
orientation, note the location of the camera
cover, which is opposite of the Tilt-Lock.
Tilt-Lock
Camera
Cover
