2. Operation Guide2. Operation Guide
2.2 DMX Mode
2.3 MIDI Mode
2.1 Mode Select

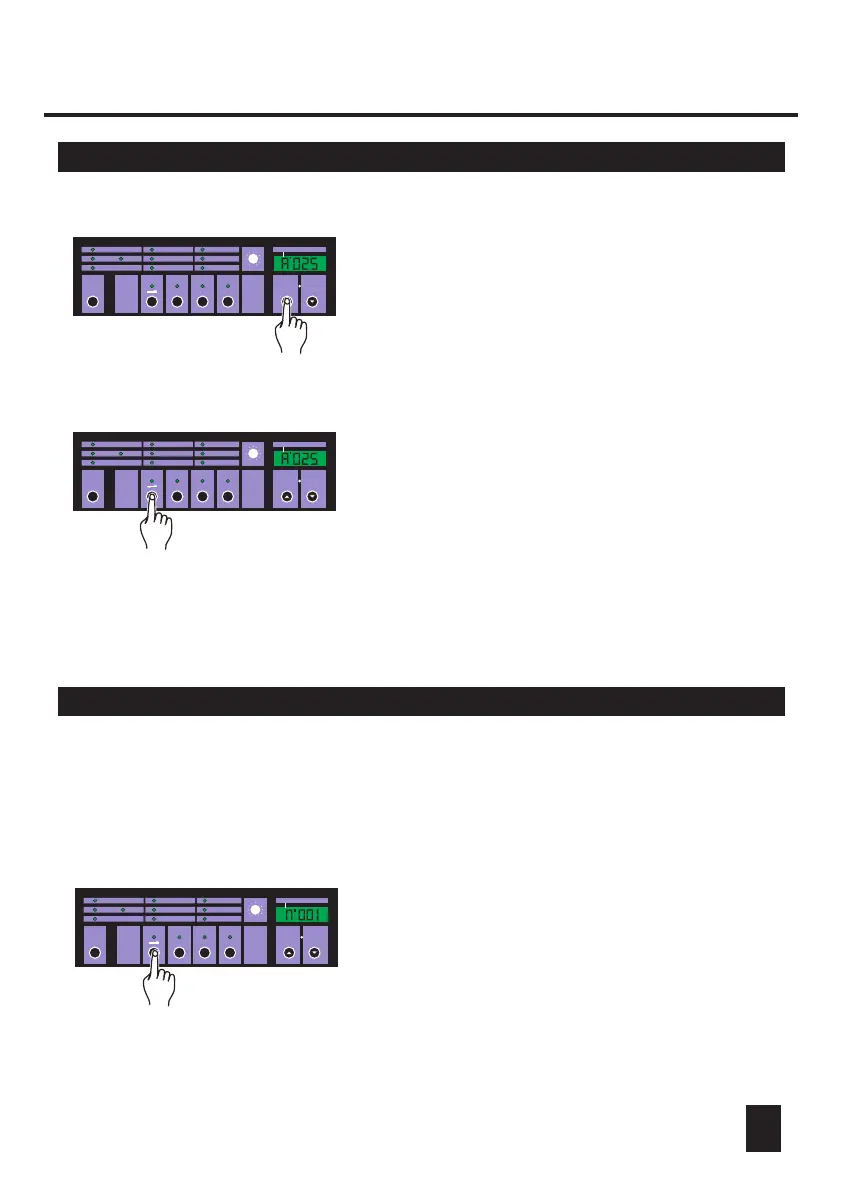

2.2 DMX Mode
5 6
Press and hold down F button first, tap the
Signal Select button, the Segment Display
shows "IN".
Keep pressing F button, tap the DMX /MIDI
button to select DMX or MIDI mode,
corresponding LED indicates the current
mode.
While holding down F button, tap Signal
Select button, when the Segment Display
shows"OUT", Master LED lights indicating
Master mode is active.
1. Tap the channel button(Ch1-Ch4), the
corresponding channel LED blinks indicating
your selection and the Segment Display shows
the DMX address of the channel.
1. Tap the channel button(Ch1-Ch4), the
corresponding channel LED blinks indicating
your selection and the Segment Display shows
the Note Number of the channel.
2. Tap the Up/Down button to select your desired
DMX address from 001 to 512.
3. Once you've set the DMX address, tap the
channel button a second time to store your
setting into memory.
4. Continue steps 1-3 until you've set the
addresses all 4 channels.
When the Segment Display shows "IN" and the DMX LED lights, this unit serves
as a 4 channel DMX dimmer pack. The Signal LED blinks when DMX signal is
available.
When the Segment Display shows "IN" , , tap DMX /MIDI
button causing the MIDI LED lights up, which indicates MIDI mode is active. The
Signal LED blinks when MIDI signal is available.
while holding down F button
