Platinum Spot 5R™
©Elation Professional, Los Angeles Ca. 43 www.ElationLighting.com

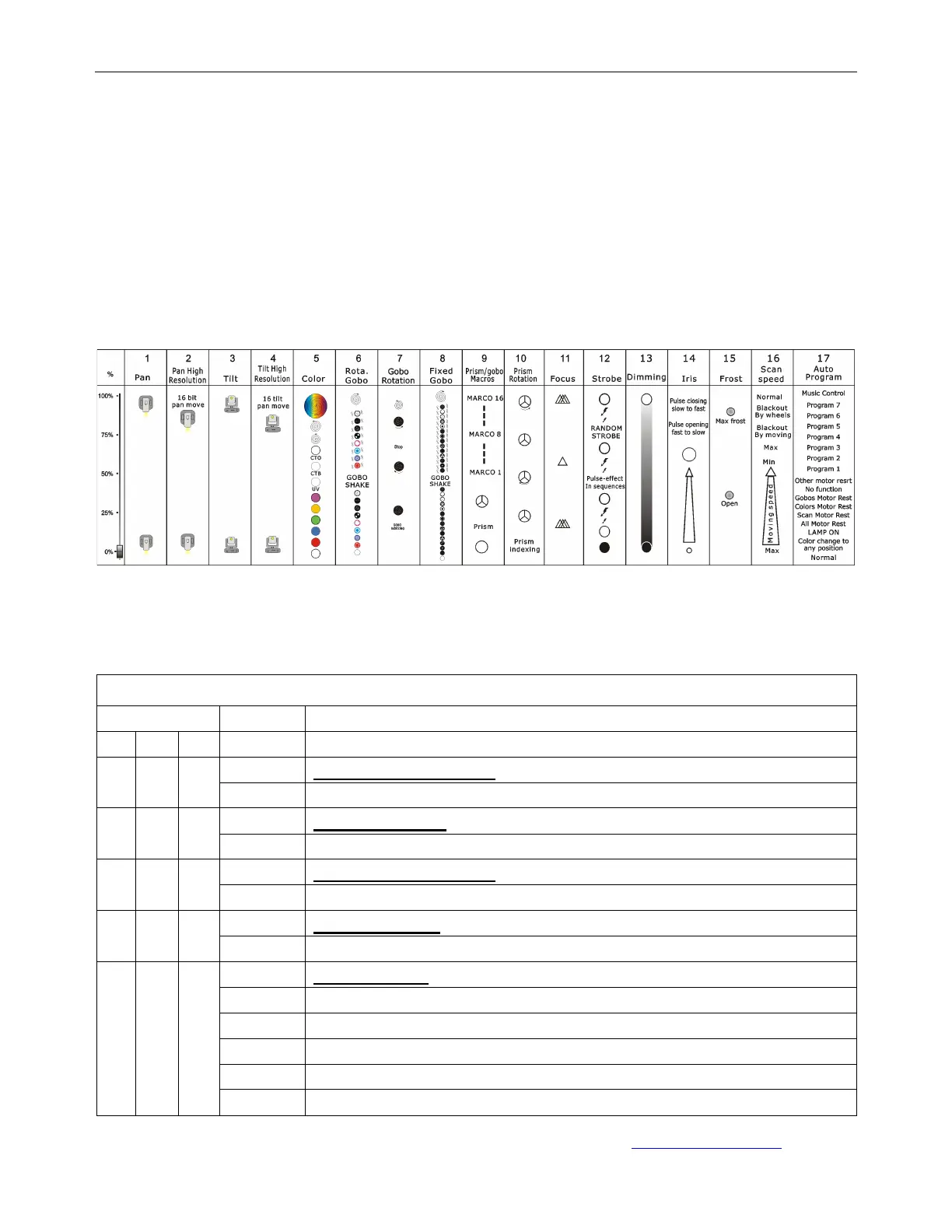

13. DMX CHANNEL TRAITS:
The chart below details the channel layout for 17 DMX channels (default).
In 8bit mode the “Pan Fine” and “Tilt Fine” channels are not used, thus converting the fixture
into a 15-channel DMX fixture. In extended mode the fixture will use 24 DMX channels
(second chart).
DMX channel function and values:
DMX channel functions and their values (up to 24 DMX channels):
Mode/Channel
Value
Function
St
Ba
Ex
PAN Movement 8bit:
1
1
1
0-255
Pan Movement By 540/630
Pan Fine 16bit:
2
2
0-255
Fine control of Pan movement
TILT Movement 8bit:
3
2
3
0-255
Tilt Movement By 270
Tilt Fine 16bit:
4
4
0-255
Fine control of Tilt movement
Color Wheel:
0-13
Open / white
14-27
Color 1
28-41
Color 2
42-55
Color 3
5
3
5
56-69
Color 4
