Platinum Spot 5R™
©Elation Professional, Los Angeles Ca. 19 www.ElationLighting.com

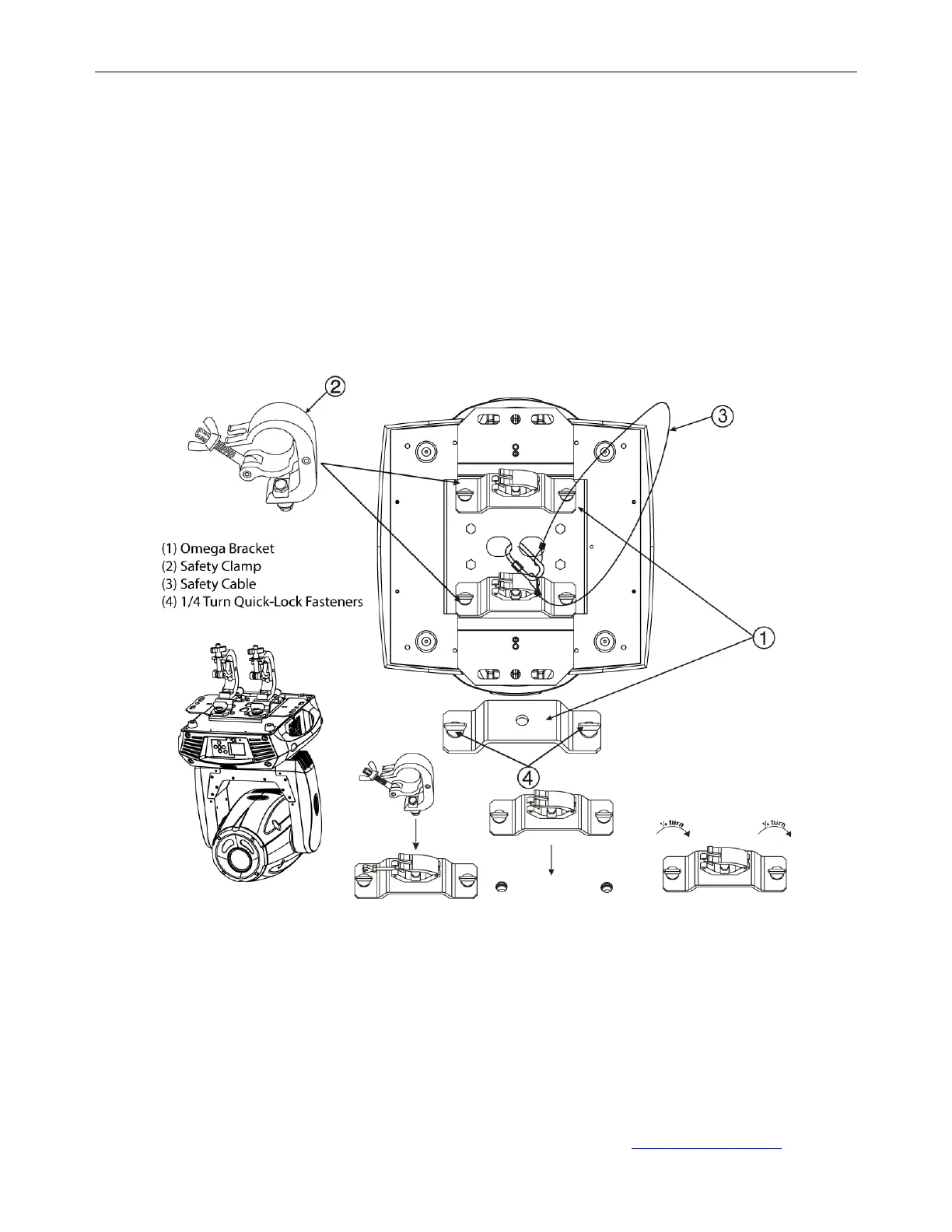

Clamp Mounting
The Platinum Spot 5R™ provides a unique mounting bracket assembly that integrates the
bottom of the base, the included “Omega Bracket,” and the safety cable rigging point in one
unit (see the illustration below). When mounting this fixture to truss be sure to secure an
appropriately rated clamp to the included omega bracket using a M10 screw fitted through
the center hole of the “omega bracket”. As an added safety measure be sure to attached at
least one properly rated safety cable to the fixture using on of the safety cable rigging point
integrated in the base assembly
Securing the Platinum Spot 5R™
Regardless of the rigging option you choose for your Platinum Spot 5R™ always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.
