12
CONNECTIONS AND CABLES
CONNECTIONS

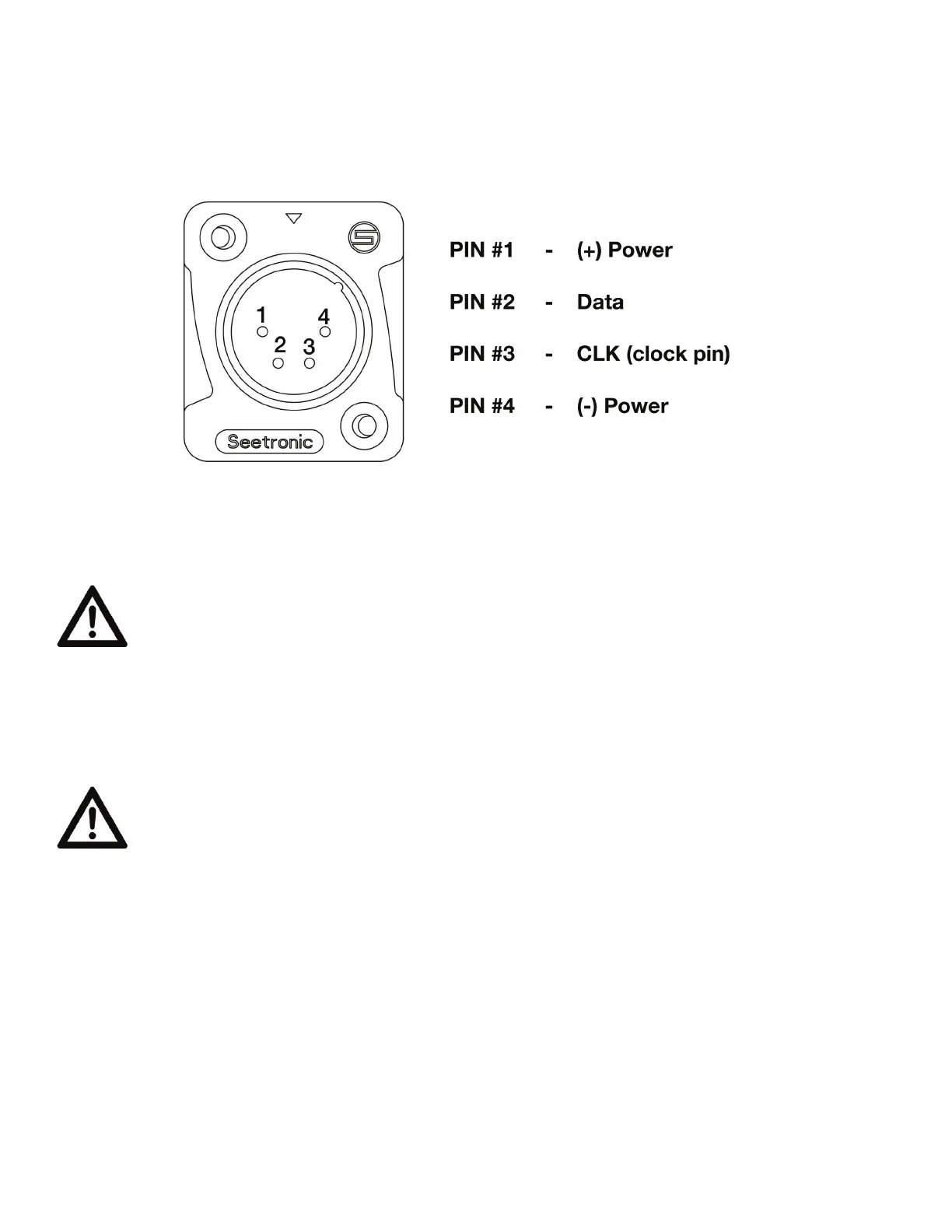

The device features RJ45 Ethernet in/out and 4pin power/data combination output connections. The
wiring diagram below provides the pin details for the power/data outputs.
CABLES
ELATION P BAR IP 4pin 16AWG power/data cables are available in various lengths. See the
Optional Accessories section of this manual for details.
MAXIMUM CABLE DISTANCES - 16AWG
The following maximum cable distances apply when using 16AWG cables.
PIXEL DRIVER 4000 to 1st PIXEL BAR IP = Maximum 50 feet (18 meters)
PIXEL BAR IP to PIXEL BAR IP = Maximum 32 feet (10 meters)
Total combined length of cables can NOT exceed = Maximum 98 feet (30 meters)
MAXIMUM CABLE DISTANCES - 12AWG
The following maximum cable distances apply when using 12AWG cables.
PIXEL DRIVER 4000 to 1st PIXEL BAR IP = Maximum 50 feet (18 meters)
PIXEL BAR IP to PIXEL BAR IP = Maximum 32 feet (10 meters)
Total combined length of cables can NOT exceed = Maximum 213 feet (65 meters)
