GOBO REPLACEMENT

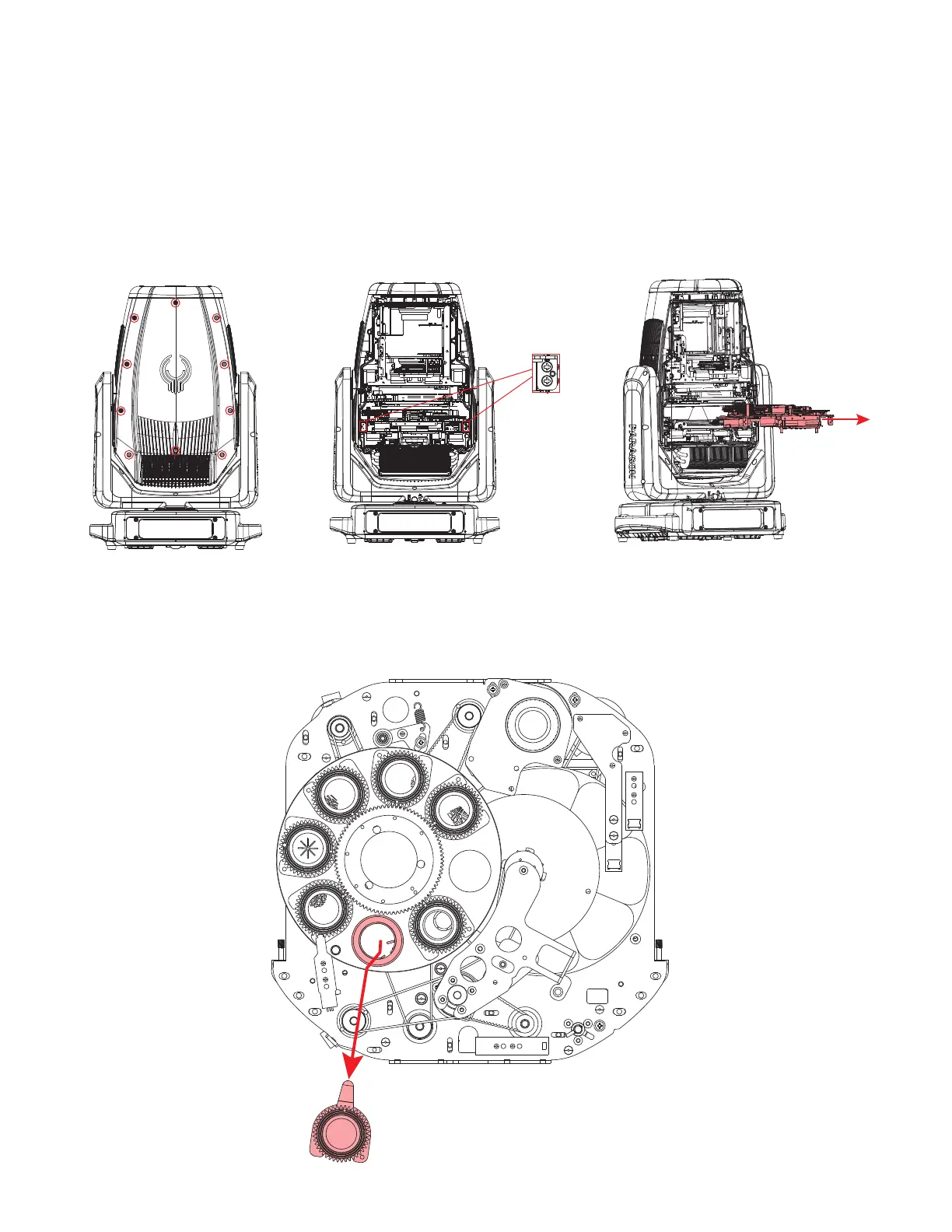

1. Remove the ten (10) screws on each side of the head cover, then remove the cover (left).
Locate the four (4) fasteners securing the gobo module in place (center), then disconnect
the electrical connector for the module. Loosen the four (4) 3mm Hex screws that hold the
module in place, then remove from the head (right).
2. Firmly grasp the gobo holder containing the gobo that you wish to replace. Lift the gobo
holder clear of its socket in the gobo wheel, then pull the gobo holder outward. The gobo
holder should come free of the gobo wheel.
Head Cover
Fastener
Locations
Gobo
Module
Fasteners
Remove
Gobo
Module
