1. Overview
63
L1 L2
L3
1 2 3 4 5 6 7 8 9 10 11 12
MANUAL
Value
CHA.
1
--%
DMX
SET
%
237
225
241
CHA.1
Value
25%
20
No
DMX
PRE LTM LCCUR
1
2
3
4
5
6
7
8
9
10
11
12
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
30
100
100
100
100
100
100
100
100
100
100
100
2
3
4
5
6
7
8
9
10
11
12
CHA
1
15
30
** MEMORIES
OFF
CHASE
MEMORY
1 2 3 4 5 6 7 8 9 10 11 12
OUT MEM
1 2 3 4 5 6 7 8 9 10 11 12
000.1
GO
DMX FAIL OFF
DMX MODE BLOCK
MIDI/DMX DMX
MIDI CHANNEL 01
---------------------------------
PHASE CORR. YES
USER MODE SUPER
MASTER/SLAVE MASTER
UNIT No 01
CURVE USER1 EDIT
CURVE USER2 EDIT
---------------------------------
CLEAR CURVES CLEAR
DELETE ALL DELETE
Ver:1.0
OFF
** SETUP CURVE
SAVE
**CHASE
STEPS
00
FADE
%
00
SPEED
S
EC
000.1
SAVE
00
Press Menu button for 5 seconds
Top Menu
Channel Menu
Memory Menu
Chase Menu
Curve Menu
Setup Menu
MENU MENU
<<
<<
MENU MENU
<<
<<
MENU MENU
<<
<<
MENU MENU
<<
<<
MENU MENU
<<
<<
MENU MENU
<<
<<
.................
OUT
PUT
00
%
INPUT 00 %
.................
MDP-1219 Instructions page 9
2. Operating Guide
The LCD display is integrated with this 12 Channel Digital Module Dimmer.
Three buttons under the display and an Encoder (Data Wheel) make all
necessary adjustments possible for example DMX address, limitation,
control curves, preheat ,etc.
Working principle of such buttons is :
-- The middle button can lead to each menu.
-- All data are fed into the dimmer by the encoder.
63
General
MDP-1219 Instructions page 10

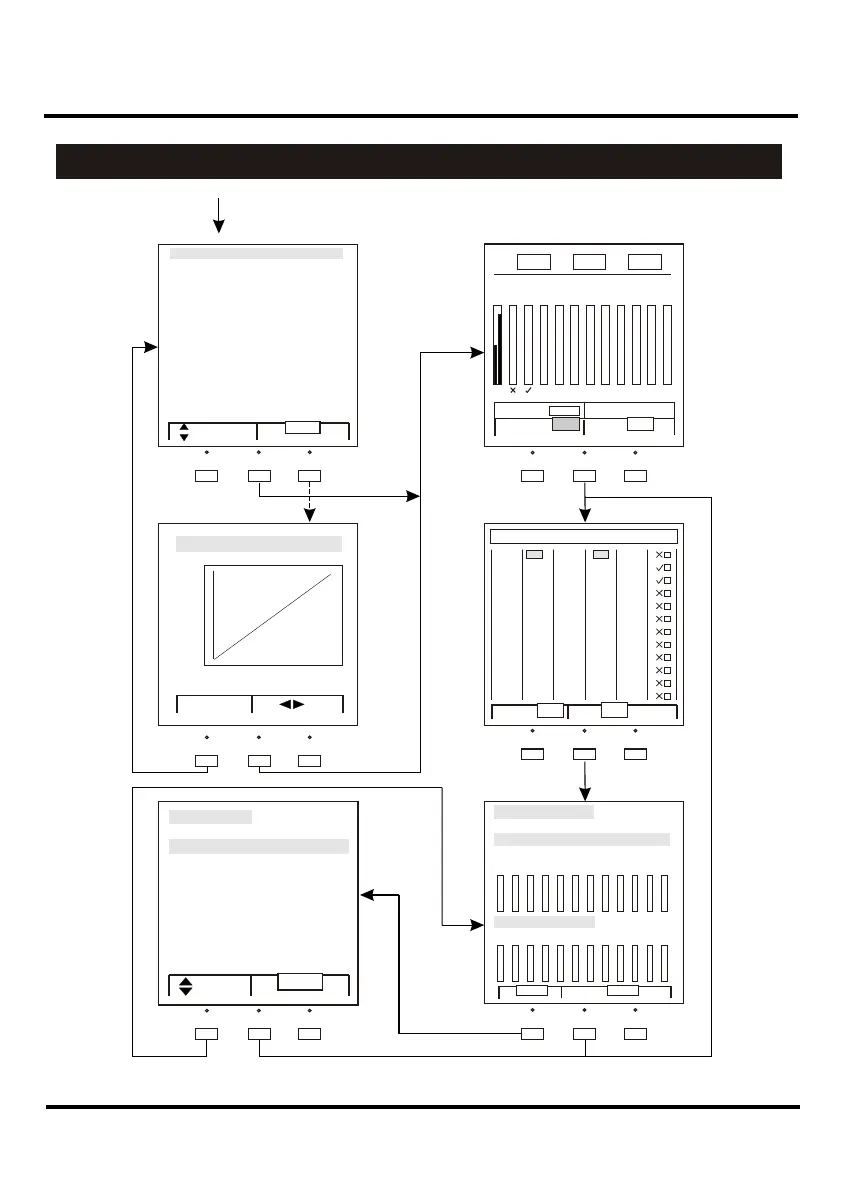

1.3 Preview Menu
