3
Power:
Before plugging your unit in, be sure the resource voltage in your area matches the unit required voltage.
The unit is available in a 230V version only. Because the line voltage may vary from venue to venue, you
should be sure to plug the socket into a matching wall outlet before attempting to operate your unit.
Fuses:
The Lumina Strip electric system is protected by T3.15A 250V 5*20mm. Please see the printing on the case
and these fuses prevent you from overloading damaging your unit. To replace the protective fuse, use a flat
head screwdriver to unscrew the fuse holder. Pull out the old fuse and replace it with a new one. Insert the
fuse back into the slot and tighten. Always replace with exact same type fuse removed unless otherwise
specified by an authorized service technician,

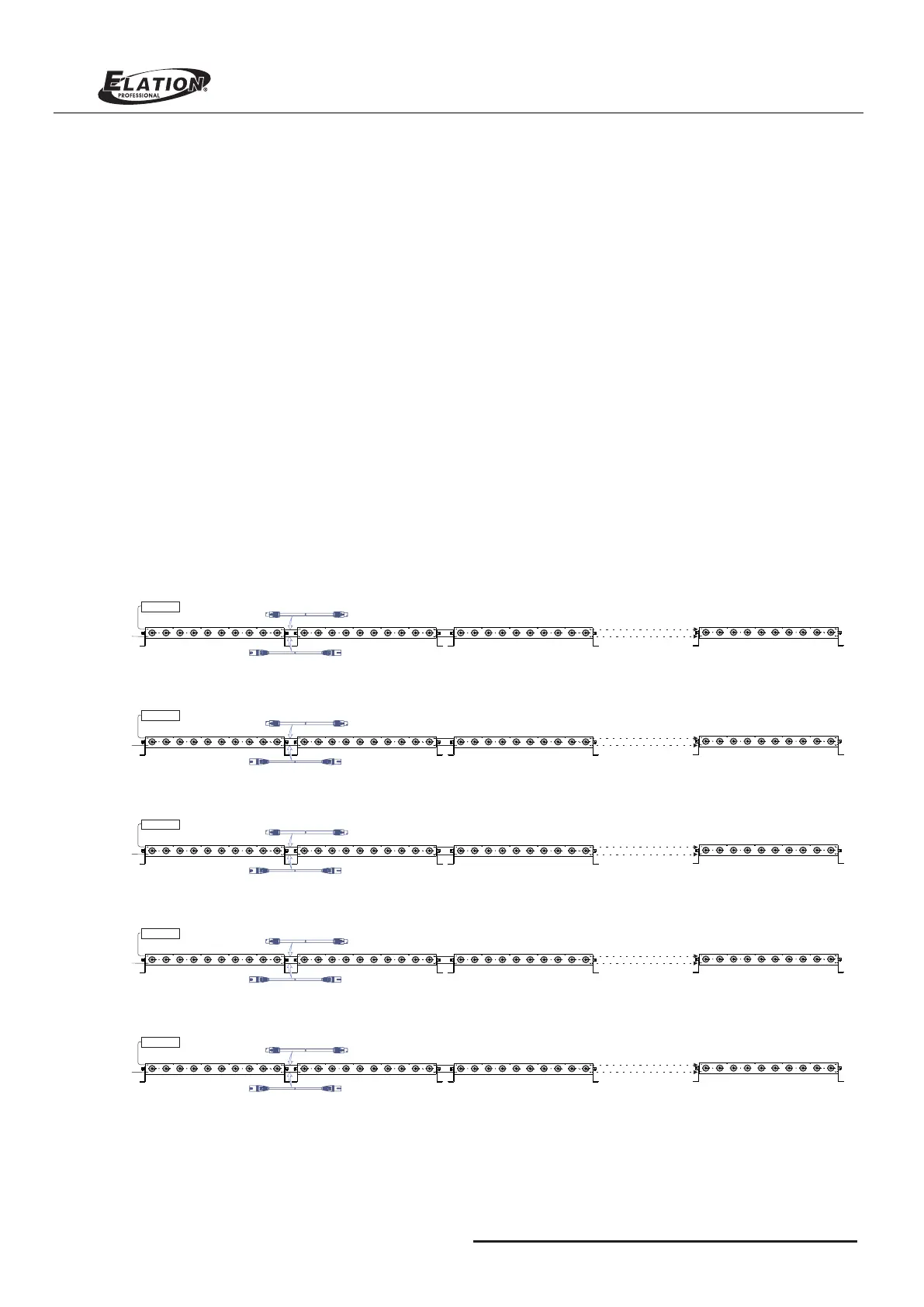

SYSTEM CONNECTION
Maximum amount of this units that may be connected is 16pcs(AC100-120V) or 32pcs(220-240V).
One universe DMX can drive up to 32 pcs of Lumina Strip, please add DMX booster if Lumina Strip are
connected together in line over 32 pcs or data cable over 100M. The connections may be illuminated
as following.
3pin P ower Ca ble
5pi n DMX Cab le
DMX IN
1
2
3
32
POWER IN
DMX IN
POWER OUT
DMX OUT
Lumina Strip
POW ER IN
AC1 00-24 0V 15A MAX
3pin P ower Ca ble
5pi n DMX Cab le
DMX IN
1
2
3
32
POWER IN
DMX IN
POWER OUT
DMX OUT
Lumina Strip
POW ER IN
AC1 00-24 0V 15A MAX
3pin P ower Ca ble
5pi n DMX Cab le
DMX IN
1
2
3
32
POWER IN
DMX IN
POWER OUT
DMX OUT
Lumina Strip
POW ER IN
AC1 00-24 0V 15A MAX
3pin P ower Ca ble
5pi n DMX Cab le
DMX IN
1
2
3
32
POWER IN
DMX IN
POWER OUT
DMX OUT
Lumina Strip
POW ER IN
AC1 00-24 0V 15A MAX
3pin P ower Ca ble
5pi n DMX Cab le
DMX IN
1
2
3
32
POWER IN
DMX IN
POWER OUT
DMX OUT
Lumina Strip
POW ER IN
AC1 00-24 0V 15A MAX
