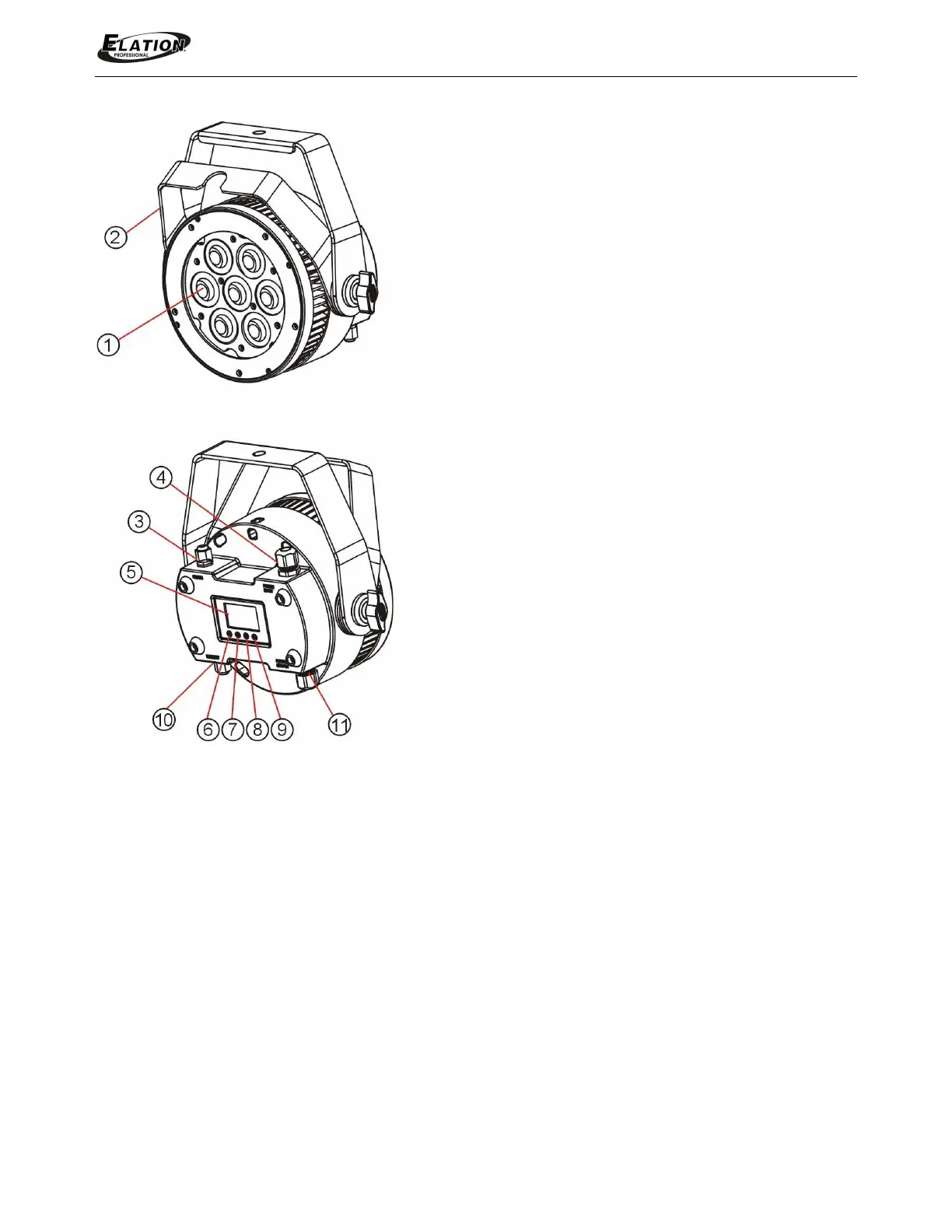

FIXTURE OVERVIEW
1. LED Lens Assembly – 7 RGBW Quad LEDs comprise the LED assembly.
2. Mounting Bracket / Stand– Used to mount fixture.
3. DMX IN – Accepts incoming DMX signal via a male 5-pin XLR jack.
4. Power IN – Power connection to power source.
5. LED Menu Control Display – Fixture menu display.
6. MODE/ESC Button – Used to access the menu functions and exit the current command.
7. UP Button – Used to toggle forward through the menu functions and settings.
8. DOWN Button – Used to toggle down or back through the menu functions and settings.
9. ENTER Button – Used to enter into or lock a certain menu function.
10. DMX OUT – Provides outgoing DMX signal via a female 5-pin XLR jack.
11. Power OUT – Power connection to daisy chain to another unit.
12. ! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! 10!!!!!!!!!!!!!!! LEVEL!Q7!IP™!User!Manual!Version!
1
1: LED Lens Assembly
2: Mounting Bracket/Stand
3: DMX IN
4: Power IN
5: LED Menu Control Display
6: MODE/ESC Button
7: UP Button
8: DOWN Button
9: ENTER Button
10: DMX OUT
11: Power OUT
