21
CONTROL PANEL

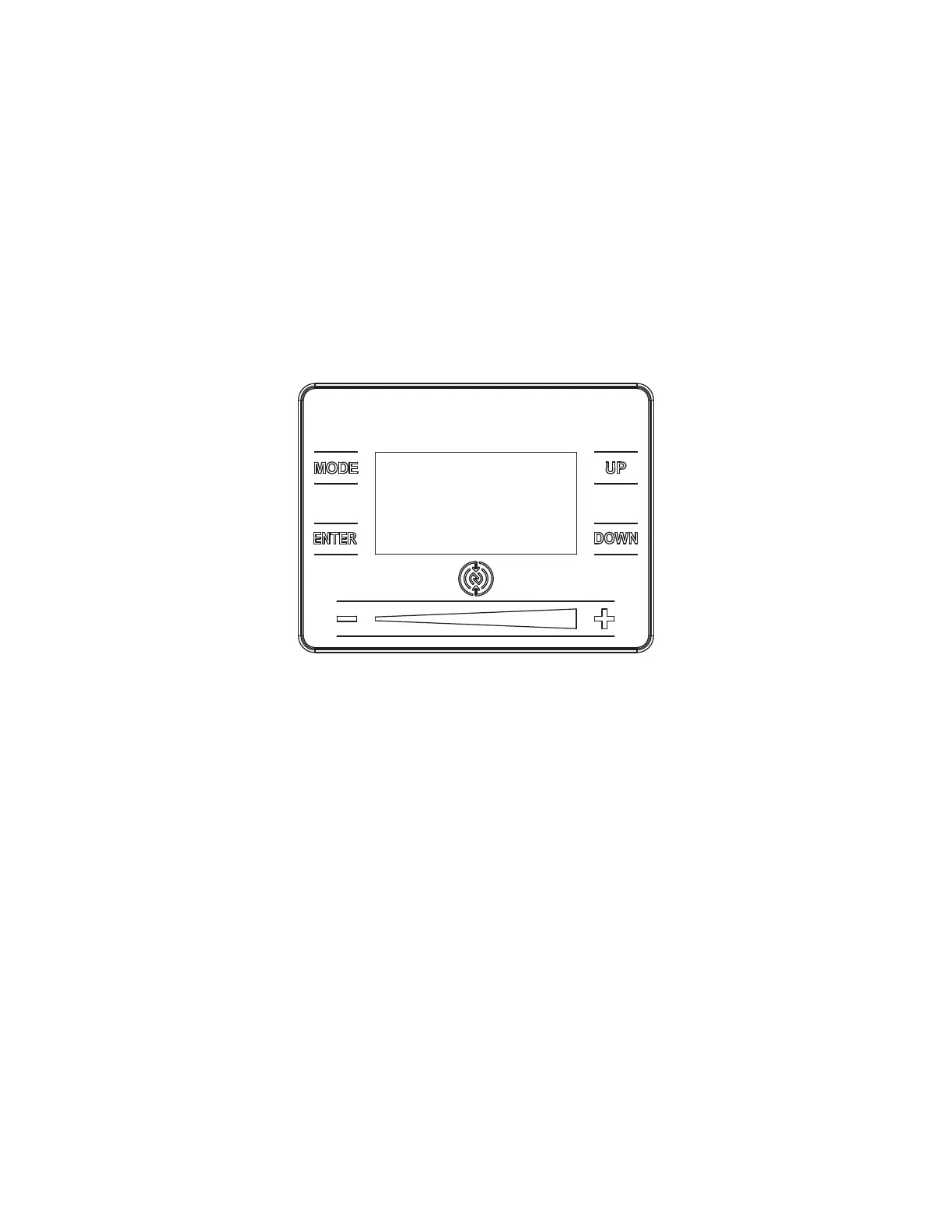

The xture includes an easy to navigate system menu. The touch control panel display located
on the rear of the xture (illustrated below) provides access to the main system menu where
all necessary system adjustments are made to the xture.
• During normal operation, pressing the MODE button once will access the xture’s main
menu.
• Once in the main menu you can navigate through the dierent functions and access the sub-
menus with the DOWN and UP buttons.
• Once you reach a eld that requires adjusting, press the ENTER button to activate that
eld and use the DOWN and UP buttons to adjust the eld.
• Pressing the ENTER button once more will conrm the setting.
• Exit the main menu at any time without making any adjustments by pressing the MODE
button.
KEY LOCK
The control keys can be congured to lock after a pre-set period of inactivity. The keys are
locked by default, but this setting can also be disabled or set activate after a period of
inactivity ranging from 10 seconds and 5 minutes. To change this setting, use the control panel
keys to navigate to Settings > Display > Key Lock in the system menu, then use the UP and
DOWN keys to select your desired value and press the ENTER button to conrm your selection.
To unlock the controls, press UP, DOWN, UP, DOWN, ENTER.
ARIA
This fixture is equipped with Aria X2. Please note that Aria’s wireless functions are
switched off by default. Activate Aria X2 and Bluetooth in the system menu to take
advantage of the fixture’s wireless feature set for wireless connectivity and over the air
software updates.
TOUCH BAR MODES
This device features a touch-activated bar located on the bottom of the display screen. This
touch bar can be used to manually adjust dimming, CCT, Green shift, color selection, color
saturation, or manual control. To use this feature, use the control panel keys to nativate to
Touch Bar Mode in the system menu, press ENTER, and scroll through and select your desired
mode. The bar can then be used to make adjustments in the selected mode.
