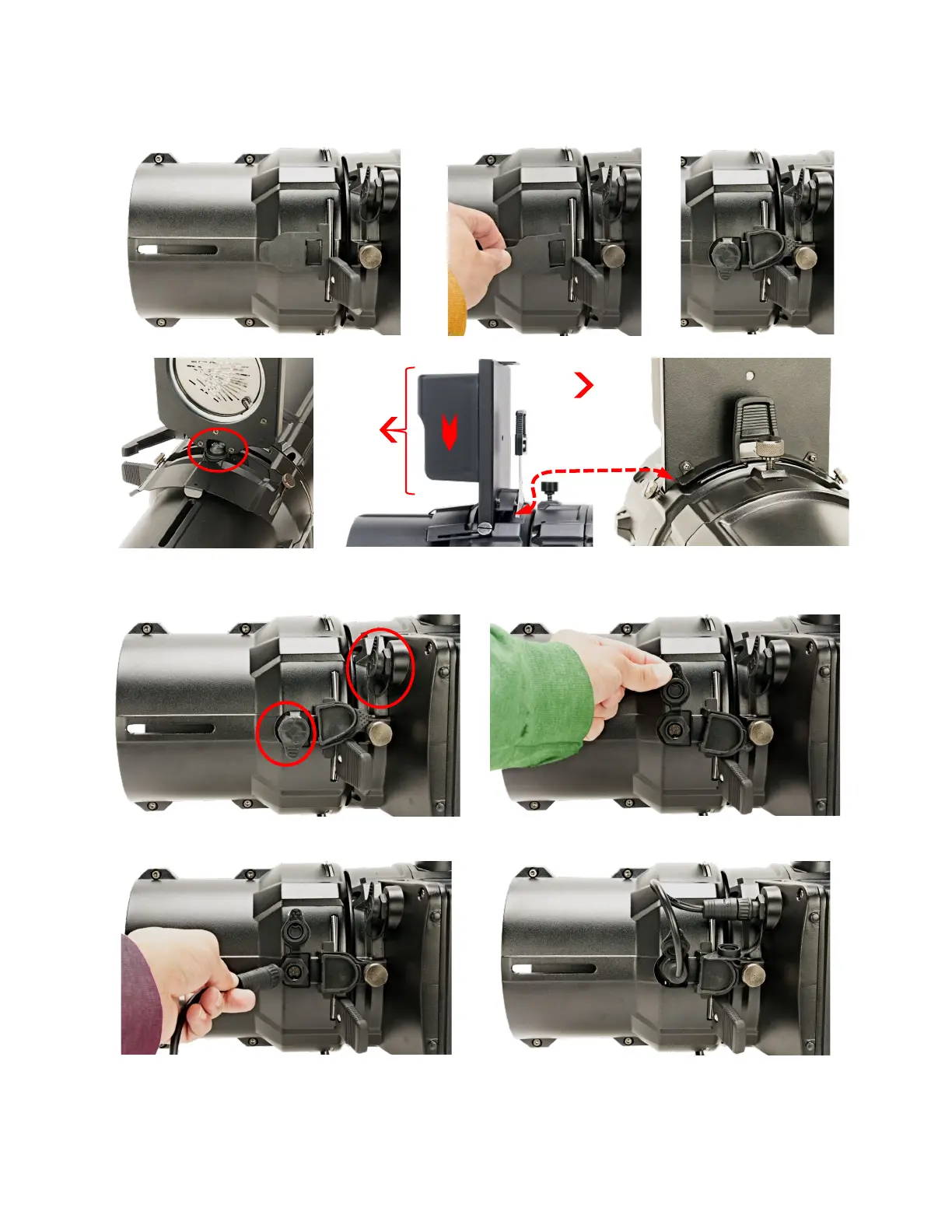

ROTATOR INSTALLATION
3. Remove rubber cover from the bottom of the fixture.
4. Position the rotator housing facing the front of the profile fixture, then install it into the
GOBO slot. Make sure it is fully seated and the rear radiused stop is flush with the
fixture shroud surface. Secure the 2 screws on fixture top GOBO slot cover.
5. Remove the IP65 rubber covers of the 5pin power/data linking connection on the
bottom of the rotator and on the profile fixture.
6. Connect the included 5pin power/data linking cable.
Front
Back
Radiused
Stop
