INSTALLATION GUIDELINES
OMEGA BRACKETS INSTALLATION

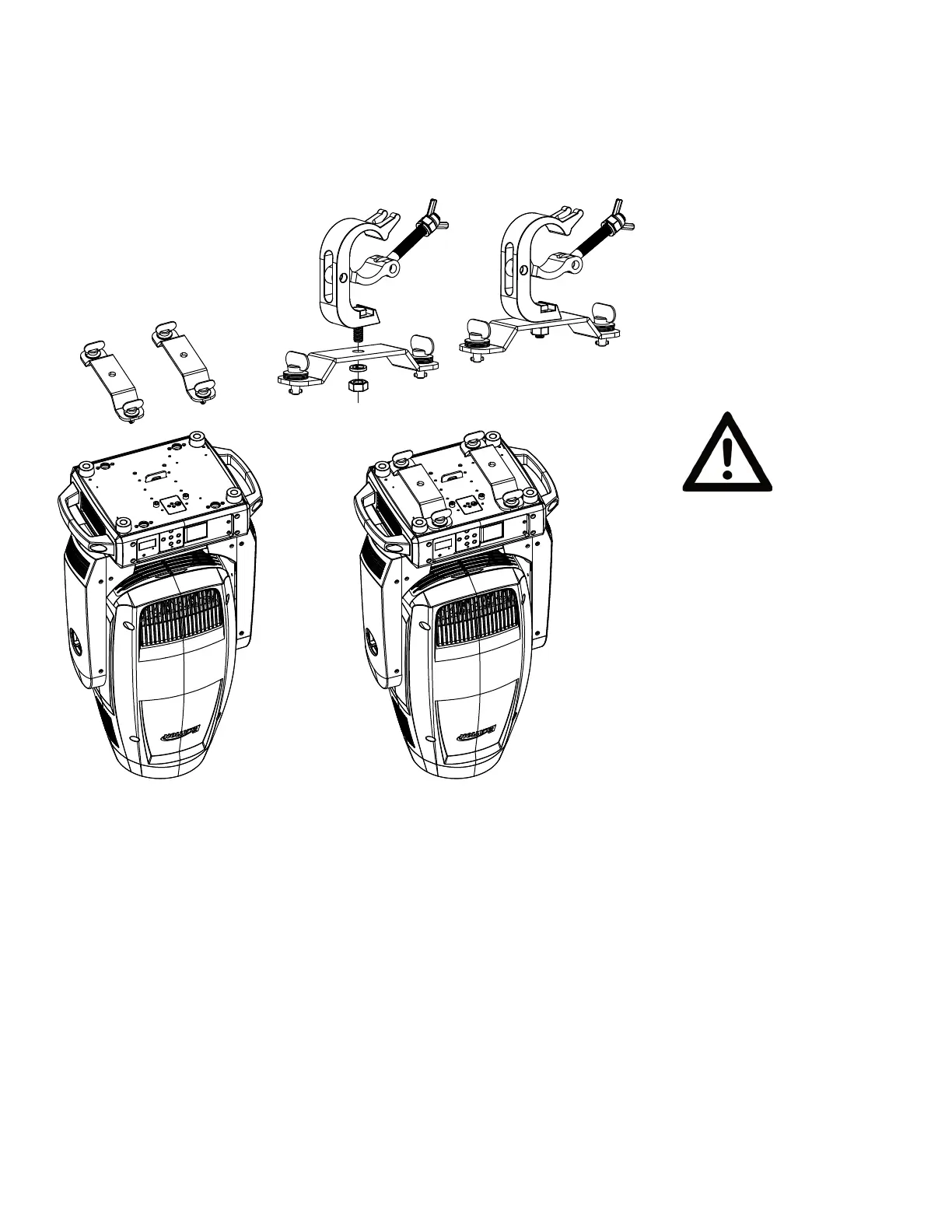

Insert the Omega Brackets into the matching holes on the bottom of the xture. Secure the
Omega Brackets to the xture by turning each quick-lock fastener ¼ turn clockwise; making
sure the fastener is completely locked. Omega Brackets can be installed into the xture base
as illustrated below.
SAFETY CABLE
ALWAYS ATTACH A SAFETY
CABLE WHENEVER INSTALLING
THIS FIXTURE IN A SUSPENDED
ENVIRONMENT TO ENSURE
FIXTURE WILL NOT DROP
IF MOUNTING / RIGGING
HARDWARE FAILS
CLAMP INSTALLATION (NOT INCLUDED)
When mounting xture to truss, be sure to secure an appropriately rated professional grade
rigging clamp to the included Omega Brackets using an M10 screw tted through the center
hole of the Omega Brackets. The xture provides a built-in rigging point for a SAFETY CABLE.
Be sure to only use one of the designated rigging points for the safety cable and never secure
a safety cable to the Pendant or Yoke Brackets.
RIGGING
Overhead rigging requires extensive experience, including amongst others calculating working
load limits, installation material being used, and periodic safety inspection of all installation
material and the xture. If you lack these qualications, do not attempt the installation
yourself. Improper installation can result in bodily injury. Fixture is fully operational in the
specic mounting positions illustrated below.
