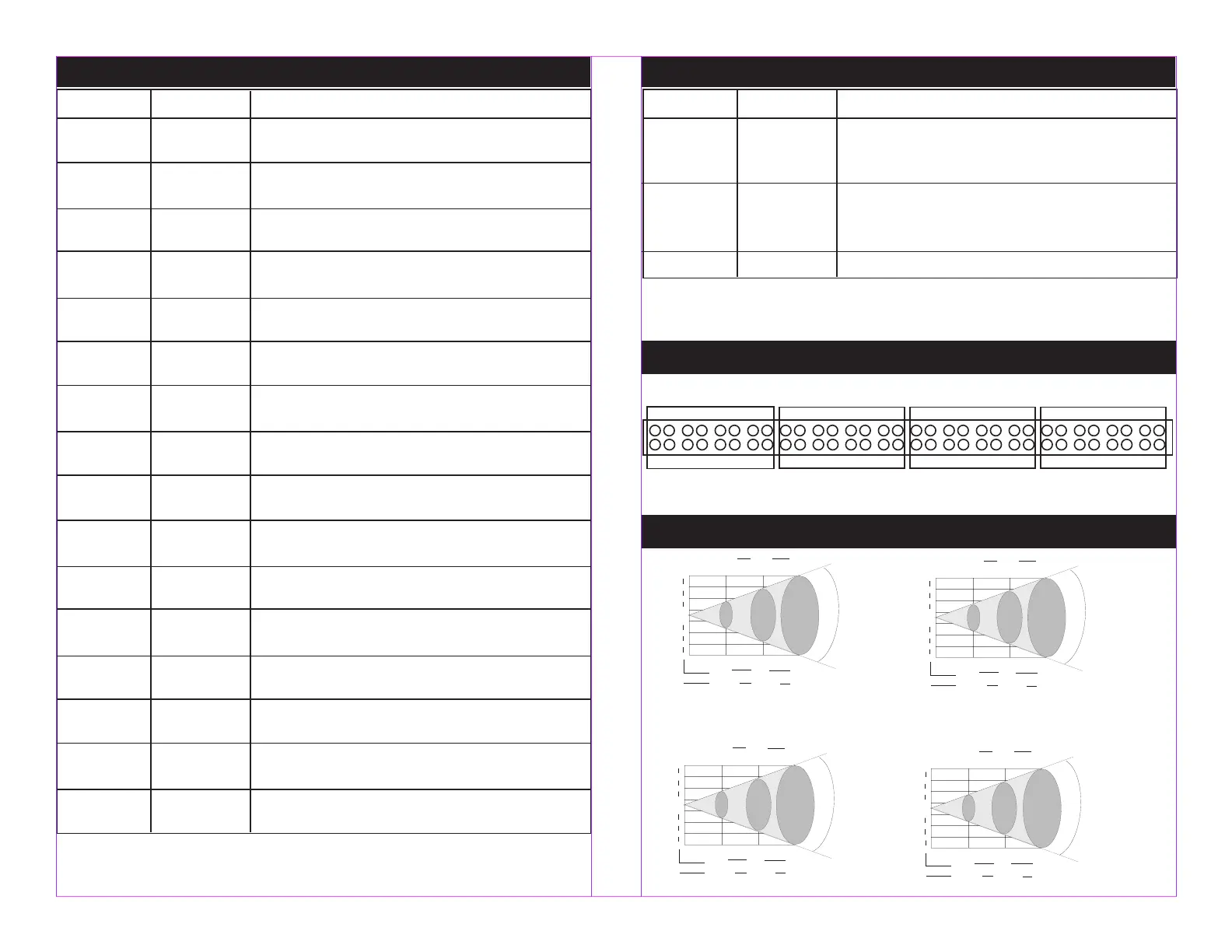

ELED Strip RGBW Diagram

ELED Strip RGBW 19 Channel - DMX Values & Functions

Channel Value Function

1 RED (SECTION ONE)

1 - 255 0% - 100%

2 GREEN (SECTION ONE)

1 - 255 0% - 100%

3 BLUE (SECTION ONE)

1 - 255 0% - 100%

4 WHITE (SECTION ONE)

1 - 255 0% - 100%

5 RED (SECTION TWO)

1 - 255 0% - 100%

6 GREEN (SECTION TWO)

1 - 255 0% - 100%

7 BLUE (SECTION TWO)

1 - 255 0% - 100%

8 WHITE (SECTION TWO)

1 - 255 0% - 100%

9 RED (SECTION THREE)

1 - 255 0% - 100%

10 GREEN (SECTION THREE)

1 - 255 0% - 100%

11 BLUE (SECTION THREE)

1 - 255 0% - 100%

12 WHITE (SECTION THREE)

1 - 255 0% - 100%

13 RED (SECTION FOUR)

1 - 255 0% - 100%

14 GREEN (SECTION FOUR)

1 - 255 0% - 100%

15 BLUE (SECTION FOUR)

1 - 255 0% - 100%

16 WHITE (SECTION FOUR)

1 - 255 0% - 100%

ELED Strip RGBW 19 Channel - DMX Values & Functions

Channel Value Function

17 PLEASE SEE DMX TRAITS AND

VALUES OF CHANNEL 5 OF

7 CHANNEL MODE

18 PLEASE SEE DMX TRAITS AND

VALUES OF CHANNEL 6 OF

7 CHANNEL MODE

19 1 - 255 MAIN DIMMER 0% - 100%

Section 1Section 2Section 4 Section 3

Note:ThepowercordislocatedbehindSection4.

Please see below for a diagram of the xture and section setup.

ELED STRIP RGBW PHOTOMETRIC

RED

1027

430

220

LUX

Dist an ce ( meter )

1.9*0.3

2.3*0.52

2.6*0.68

L*W (meter)

40 DEGREE

GREEN

1360

590

300

LUX

Dist an ce ( meter )

1.9*0.3

2.3*0.52

2.6*0.68

L*W (meter)

40 DEGREE

BLUE

121

LUX

Dist an ce ( meter )

1.9*0.3

2.3*0.52

2.6*0.68

L*W (meter)

40 DEGREE

WHITE

3440

1460

760

LUX

Dist an ce ( meter )

1.9*0.3

2.3*0.52

2.6*0.68

L*W (meter)

40 DEGREE

ELED Strip RGBW Photometrics
