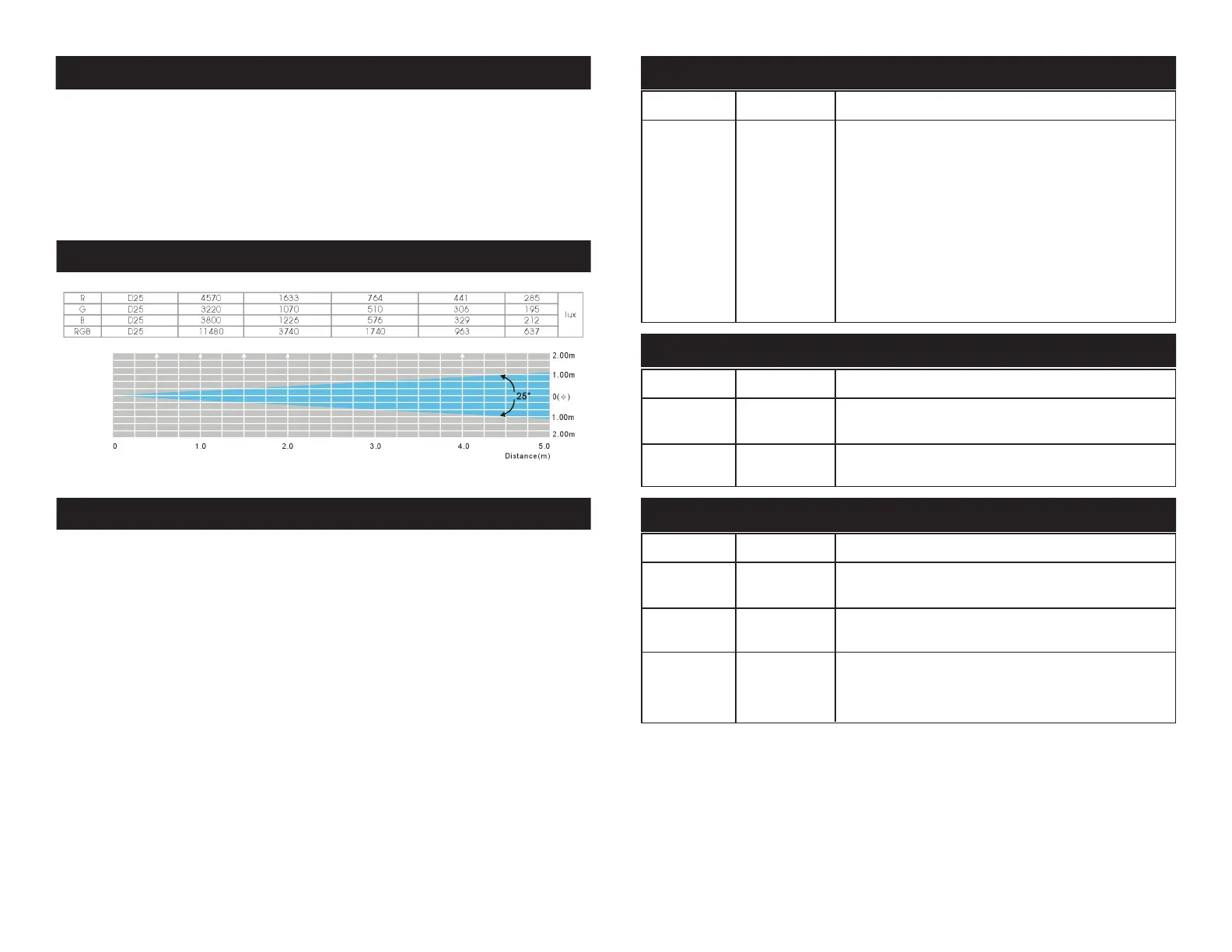

Elation Architectural - www.elationlighting.com - ELAR EX TRIFLOOD HP - Page 10Elation Architectural - www.elationlighting.com - ELAR EX TRIFLOOD HP - Page 9

ELAR EX TRIFLOOD HP 1 Channel Mode

Channel Value Function

1 COLOR MACROS

0 - 31 OFF

32 - 63 RED

64 - 95 GREEN

96 - 127 BLUE

128 - 159 YELLOW

160 - 191 PURPLE

192 - 223 CYAN

224 - 255 WHITE

ELAR EX TRIFLOOD HP 2 Channel Mode

Channel Value Function

1 COLOR MACROS

(Please see 1 Channel Mode)

2 MASTER DIMMER

1 - 255 0% - 100%

ELAR EX TRIFLOOD HP 3 Channel Mode

Channel Value Function

1 COLOR MACROS

(Please see 1 Channel Mode)

2 MASTER DIMMER

1 - 255 0% - 100%

3 STROBING

0 - 15 OFF

16 - 255 SLOW - FAST

ELAR EX TRIFLOOD HP Photometric Chart

ELAR EX TRIFLOOD HP Power Cord Daisy Chain

With this feature you can connect the xtures to one another

using the IEC input and output sockets. The quantity that can be

connected is 12 xtures maximum. After 12 xtures you will need

to use a new power outlet. They must be the same xtures. DO

NOT mix xtures.

Channels

• If Green & Blue LED’s glow you are in DMX Mode 6: 6 DMX

Channels

• If all the LED’s glow you are in DMX Mode 7: 7 DMX Channels

ELAR EX TRIFLOOD HP Operating

Instructions
