13 DW FRESNEL™ User Manual Ver. 1
BARN DOOR AND FROST FILTER
The DW FRESNEL
™

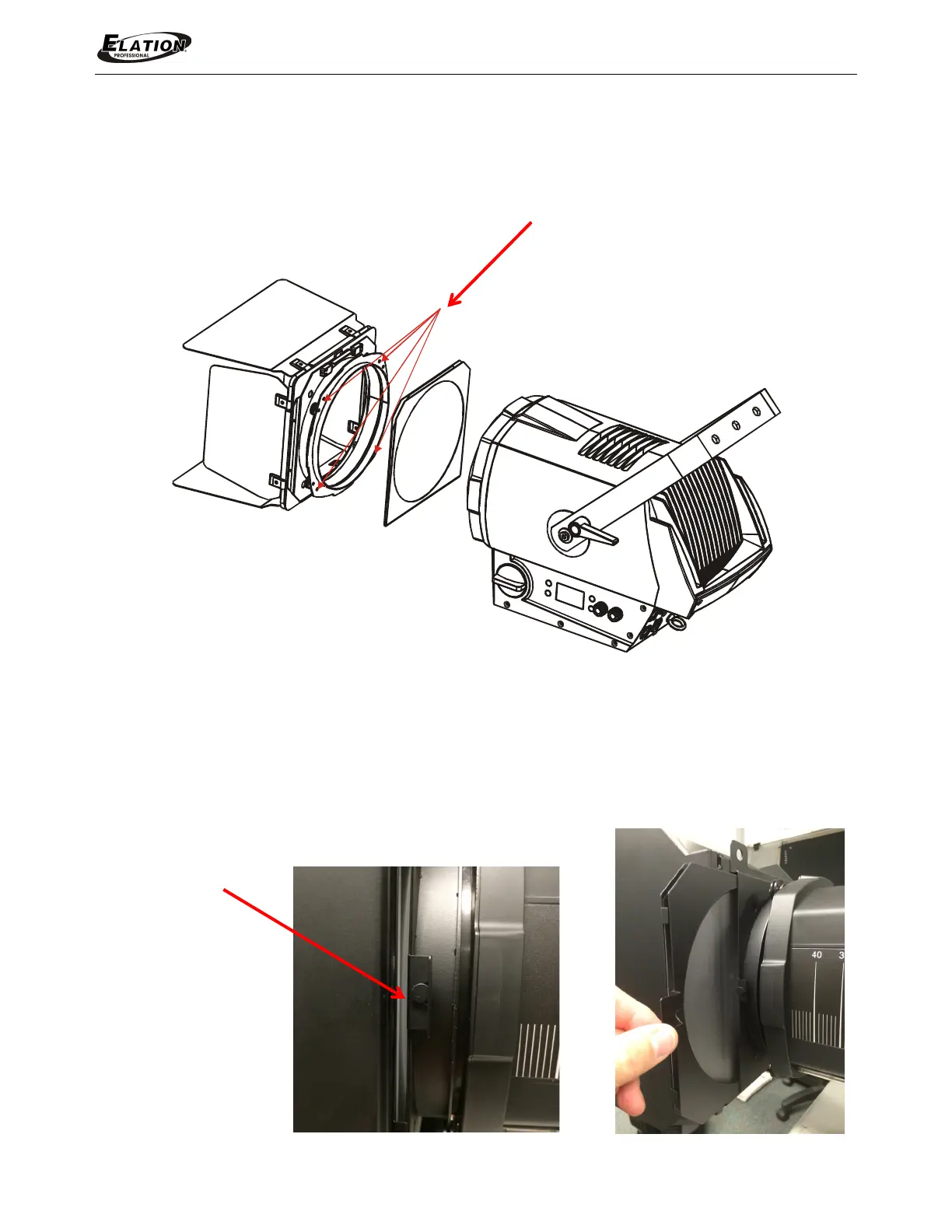

Barn Door and the Frost Filter Gel Frame Assembly are preinstalled
for your convenience. Should you have a need to remove the assembly for any
reason, it can be removed by loosening the (4) M4 screws as indicated below.
GEL FRAME REMOVAL AND INSTALLATION
The preinstalled Gel Frame comes with a standard Frost Filter. The Gel Frame can
be removed from the Barn Door Assembly if it’s not needed and/or to install a
different type of gel. TO REMOVE the Gel Frame, unhook the locking tab and slide
it out away from the Barn Door Assembly. TO INSTALL the Gel Frame, slide it into the
Barn Door Assembly and hook the locking tab in place.
LOCKING TAB
Loose 4 screws
