14!!!!!!!!!!DESIGN WASH LED ZOOM™ User Manual ver 1

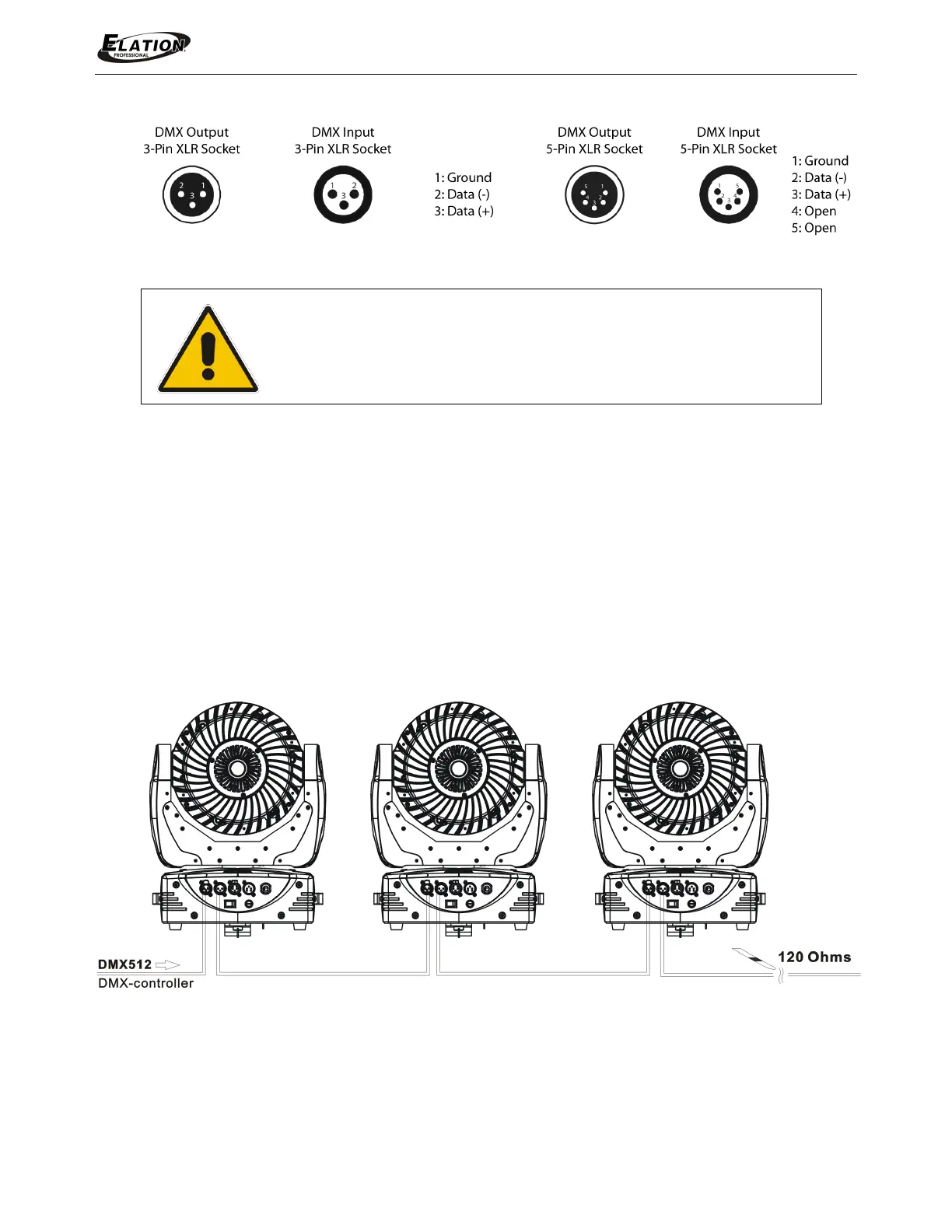

Be sure to follow the above figure when making your own cables. Do
not use the ground lug on the XLR connector. Do not connect the
cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX-512 CONTROLLER CONNECTION
Connect the provided XLR cable to the female 3-pin XLR output of your controller
and the other side to the male 3-pin XLR input of the DESIGN WASH LED ZOOM™
(Please refer to the diagram below.). You can chain multiple panels together
through serial linking. The cable that should be used is two conductor, shielded DMX
cable with XLR input and output connectors. Always be sure daisy chain your in and
out data connections, never split or “Y” your DMX connections unless you are using
an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™.
Address 1 Address 15 Address 29
