12!!!!!!!!!!DESIGN WASH LED ZOOM™ User Manual ver 1

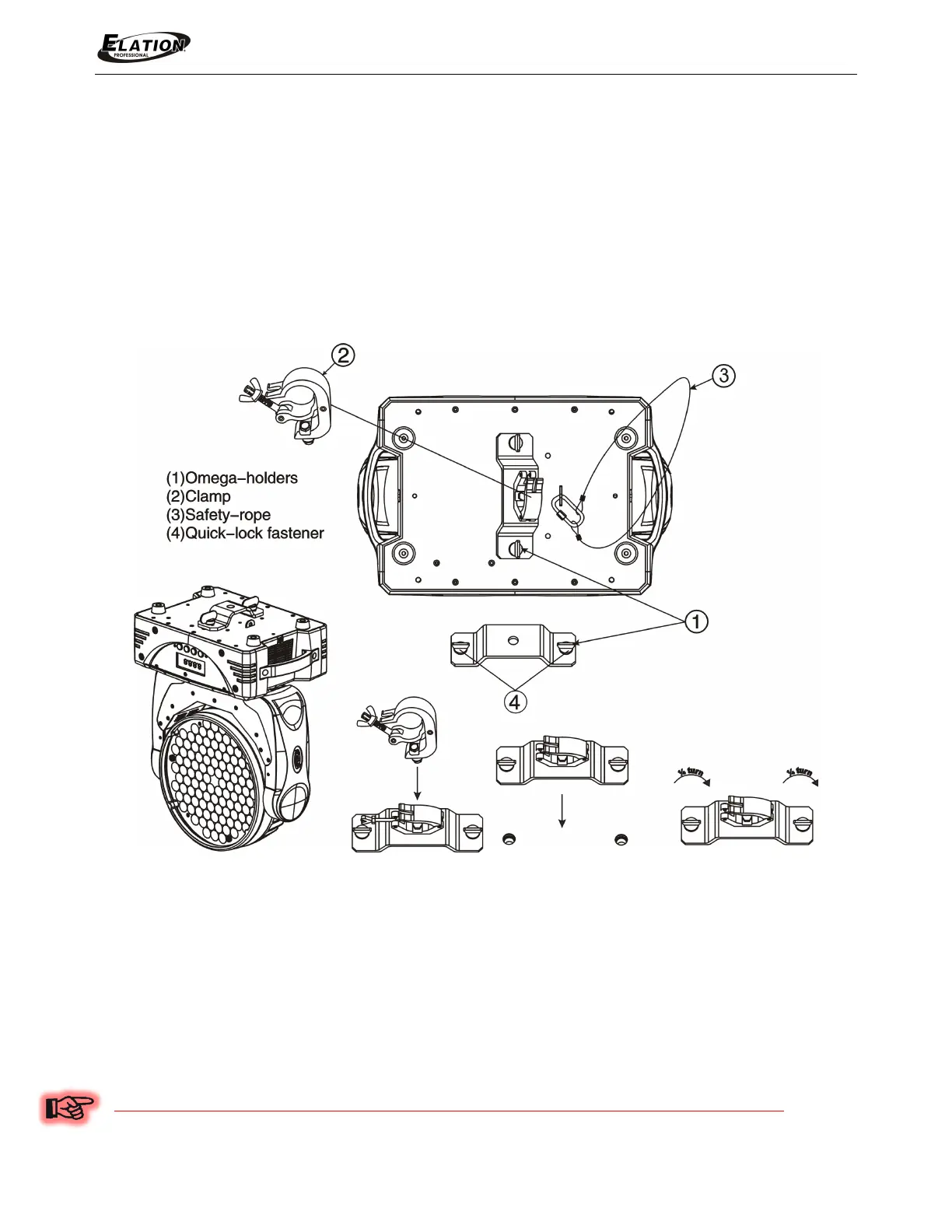

CLAMP MOUNTING
The DESIGN WASH LED ZOOM
™
provides a unique mounting bracket assembly that
integrates the bottom of the base, the included “Omega Bracket”, and the safety
cable rigging point in one unit (see the illustration below). When mounting this fixture
to truss be sure to secure an appropriately rated clamp to the included omega
bracket using a M10 screw fitted through the center hole of the “Omega Bracket”
and attach at least one properly rated safety cable to the integrated safety cable
rigging point in the base assembly.
SECURING
• Secure the clamp to the bracket using a M12 screw fitted through the Ф13 center hole.
• Insert the ! Turn Twist Locks of the first Omega bracket into the respective holes
on the bottom of the device. Tighten the Twist Locks a ! turn clockwise.
• Install the second Omega bracket on the top of the device in the same way.
• Pull a safety cable through the holes on the bottom of the base and over the
trussing system or a safe installation.
This is very important to prevent the fixture from dropping if the clamp fails.
