Design Wash 1400E™
©Elation Professional® 47 Design Wash 1400E™

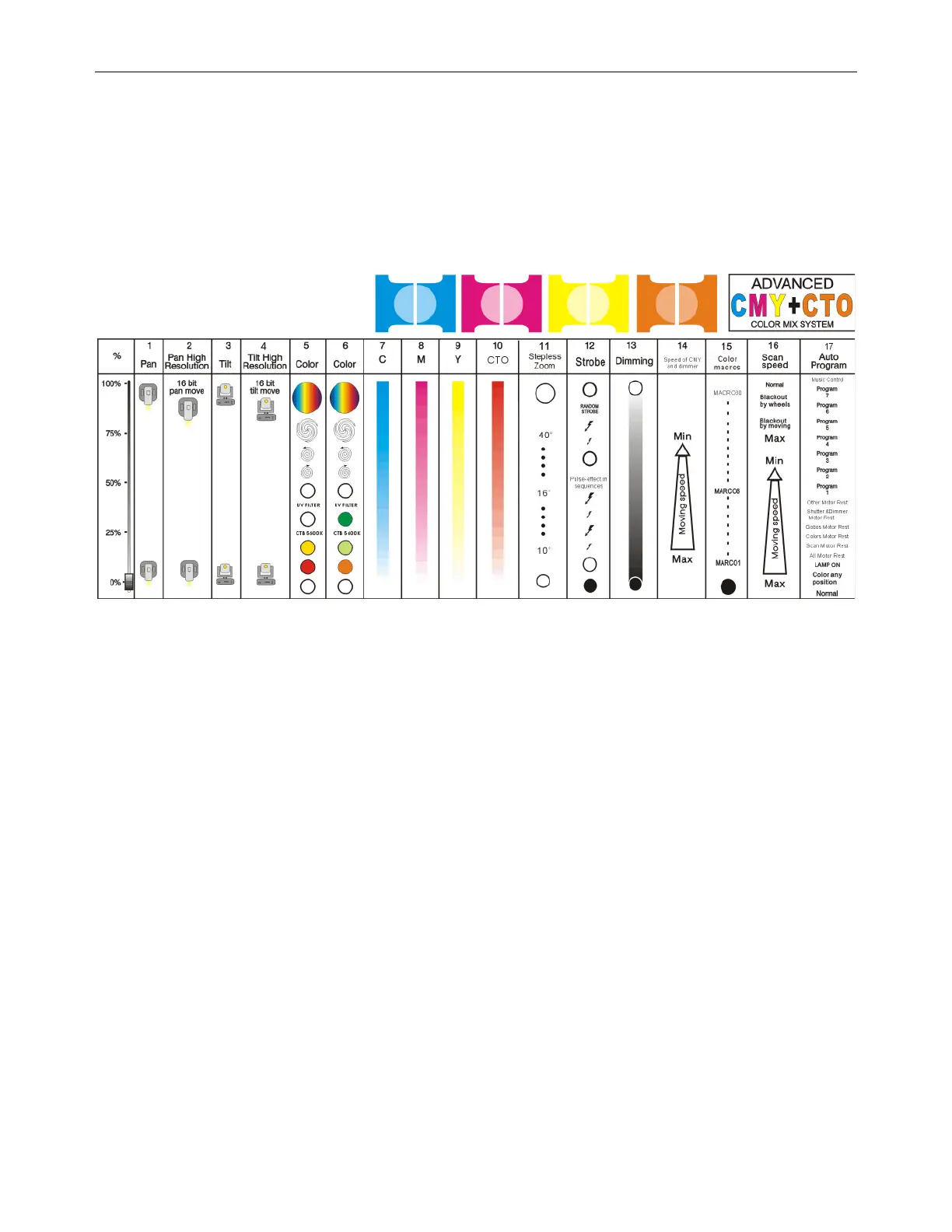

15. DMX CHANNEL TRAITS:
The chart below details the channel layout for 17 DMX channels (default).
In 8bit mode the “Pan Fine” and “Tilt Fine” channels are not used, thus converting the fixture
into a 15-channel DMX fixture.
CHANNEL 1: Pan Movement (max. 630° or 540˚ User Selectable)
CHANNEL 2: 16bit Pan Movement (pan fine)
CHANNEL 3: Tilt Movement (max. 265°)
CHANNEL 4: 16bit Tilt Movement (tilt fine)
CHANNEL 5: Color Wheel 1
CHANNEL 6: Color Wheel 2
CHANNEL 7: Cyan Filter
CHANNEL 8: Magenta Filter
CHANNEL 9: Yellow Filter
CHANNEL 10: Variable CTO Filter)
CHANNEL 11: Variable Zoom
CHANNEL 12: Strobe (0-13Hz), and Shutter close/open function + random strobe
CHANNEL 13: Dimmer (Intensity) Control
CHANNEL 14: CMY Speed
CHANNEL 15: Color Macros (CMY and Color Wheels)
