11. DMX CHANNEL TRAITS:

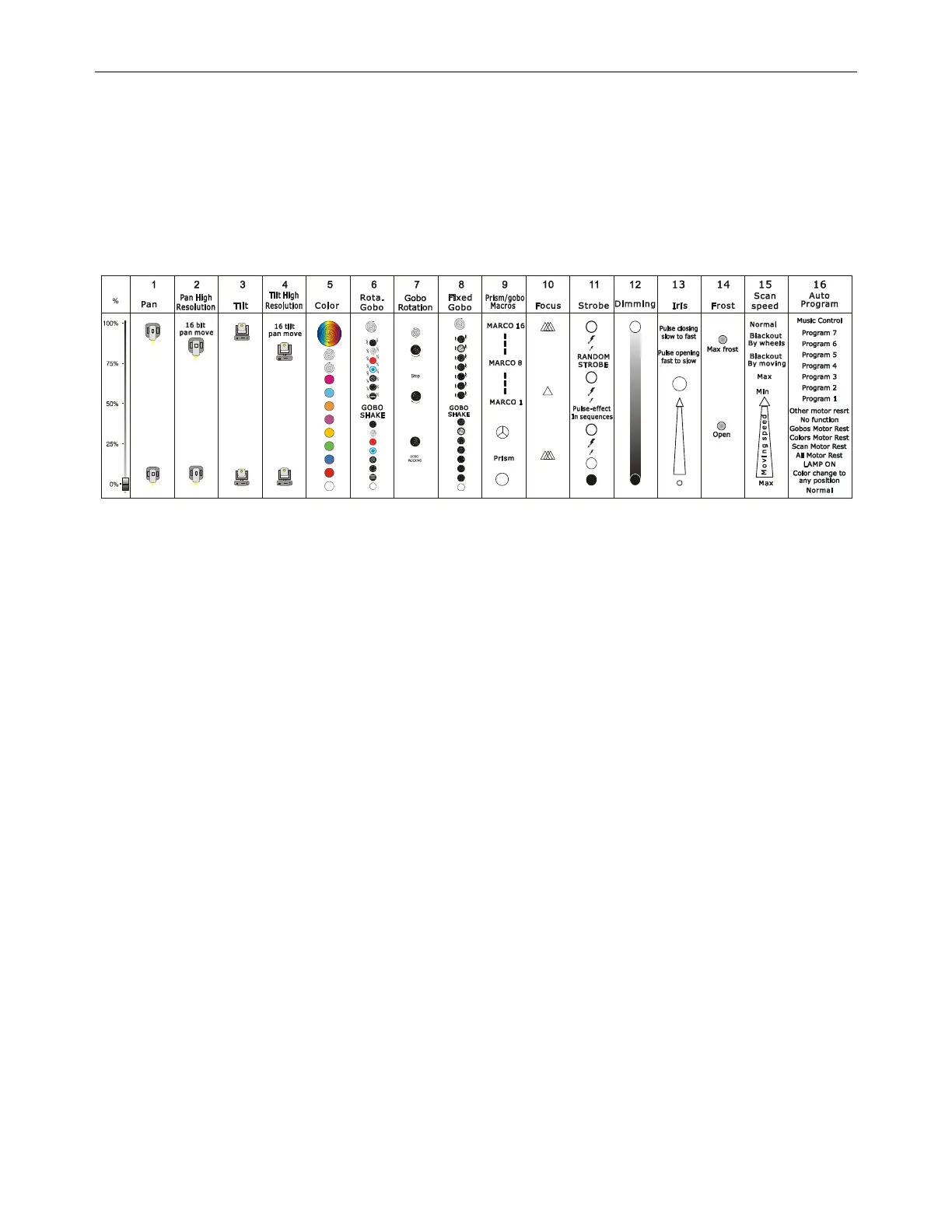

The chart below details the channel layout for 16 DMX channels (default).
In 8bit mode the “Pan Fine” and “Tilt Fine” channels are not used, thus converting the fixture
into a 14-channel DMX fixture.
CHANNEL 1: Pan Movement (max. 630° or 540˚ User Selectable)
CHANNEL 2: 16bit Pan Movement (pan fine)
CHANNEL 3: Tilt Movement (max. 265°)
CHANNEL 4: 16bit Tilt Movement (tilt fine)
CHANNEL 5: Color Wheel
CHANNEL 6: Rotating Gobo Wheel
CHANNEL 7: Gobo Index, Gobo Rotation Speed/Direction
CHANNEL 8: Fixed Gobo Wheel
CHANNEL 9: 3-Facet Prism Control
CHANNEL 10: Focus Control
CHANNEL 11: Strobe (0-13Hz) + random strobe
CHANNEL 12: Dimmer Control
CHANNEL 13: Iris (Closed to Open)
CHANNEL 14: Frost Filter (Minimum to Maximum)
CHANNEL 15: Speed Control (Pan/Tilt movement, blackout selection)
CHANNEL 16: Special (Auto program control + lamp on, motor reset, lamp switch off)
