DESIGN LED 36 TRIBRICK™

©Elation Professional, Los Angeles Ca. 16 www.ElationLighting.com

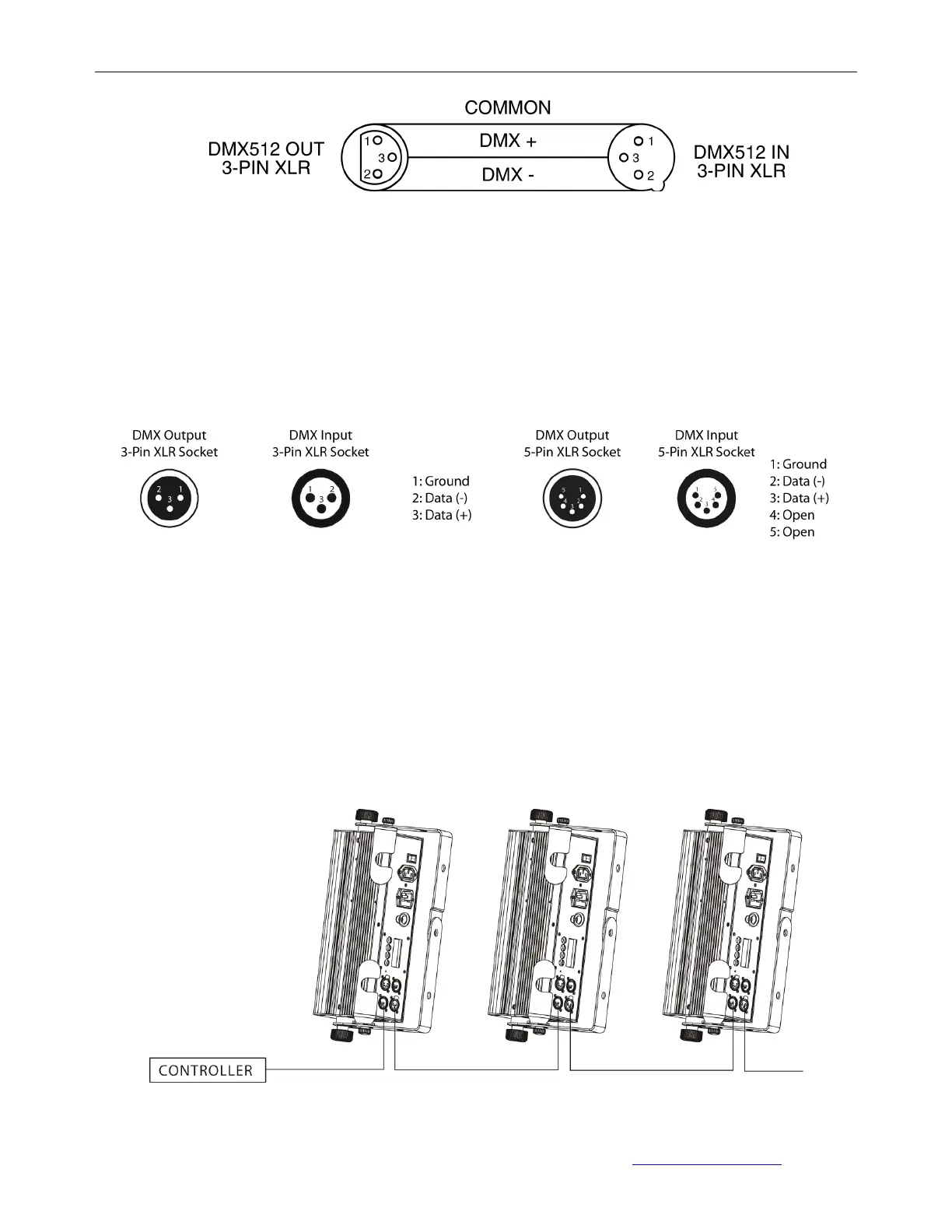

Be sure to follow the above figure when making your own cables. Do not use the ground lug

on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or

allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the

shield could cause a short circuit and erratic behavior.

DMX-512 control connection

Connect the provided XLR cable to the female 3-pin XLR output of your controller and the

other side to the male 3-pin XLR input of the fixture (Please refer to the diagram below.). You

can chain multiple fixtures together through serial linking. The cable needed should be two

conductor, shielded cable with XLR input and output connectors. Always be sure daisy chain

your in and out data connections, never split or “Y” your DMX connections unless you are

using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™.
