DESIGN LED 12 BRICK™
©Elation Professional, Los Angeles Ca. 17 www.ElationLighting.com
Always be sure daisy chain your in and out data connections, never split or “Y” your DMX
connections unless you are using an approved DMX splitter such as the Elation Opto Branch
4™ or DMX Branch/4™.

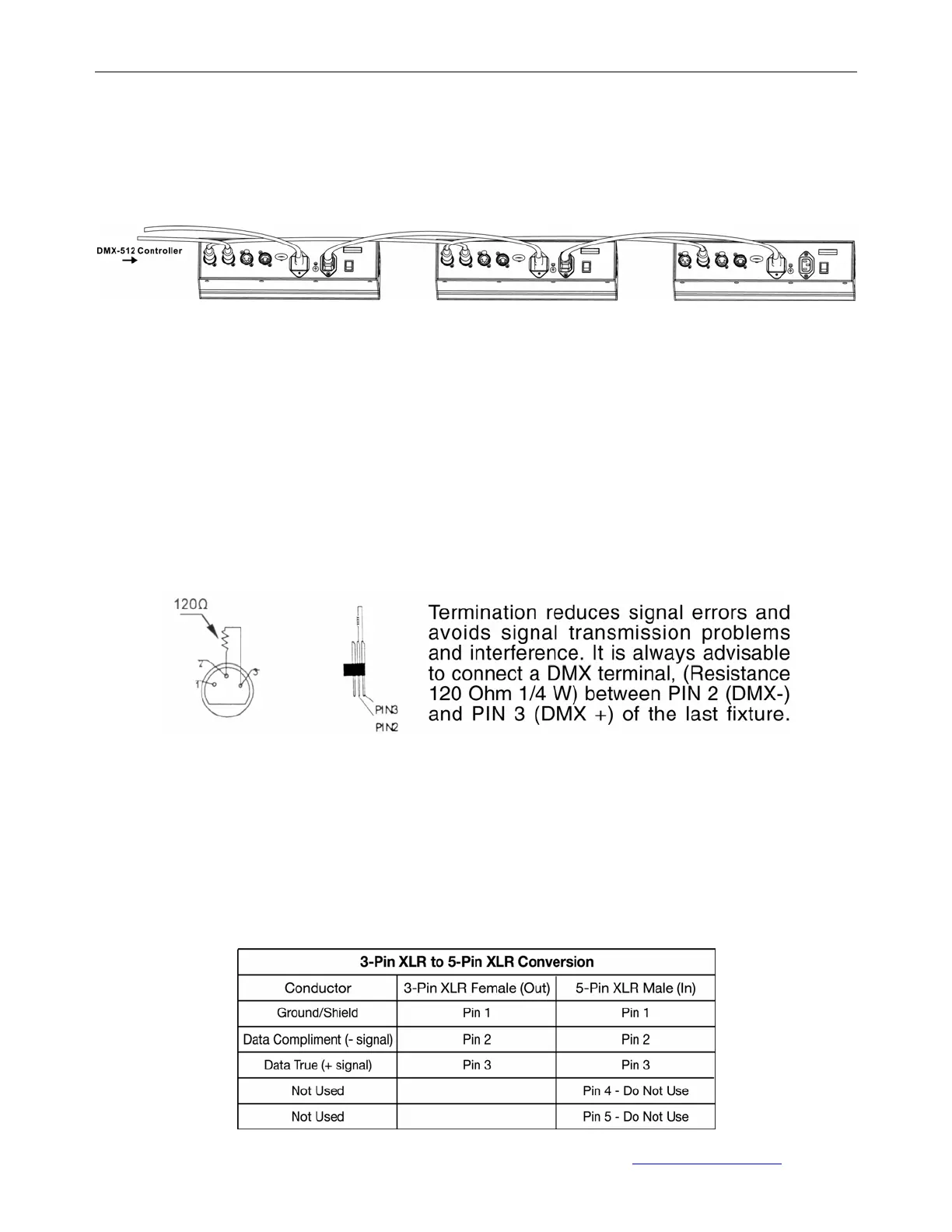

DMX-512 connection with DMX terminator
When longer runs of cable are used, you may need to use a terminator on the last fixture to
avoid erratic behavior. A terminator is a 120 ohm 1/4 watt resistor that is connected between
pins 2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted in the
female XLR connector of the last fixture in your daisy chain to terminate the line. Using a
cable terminator (Elation part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA
transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX
line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be
used, these adaptors are readily available at most electric stores. The chart on the next page
details a proper cable conversion.
