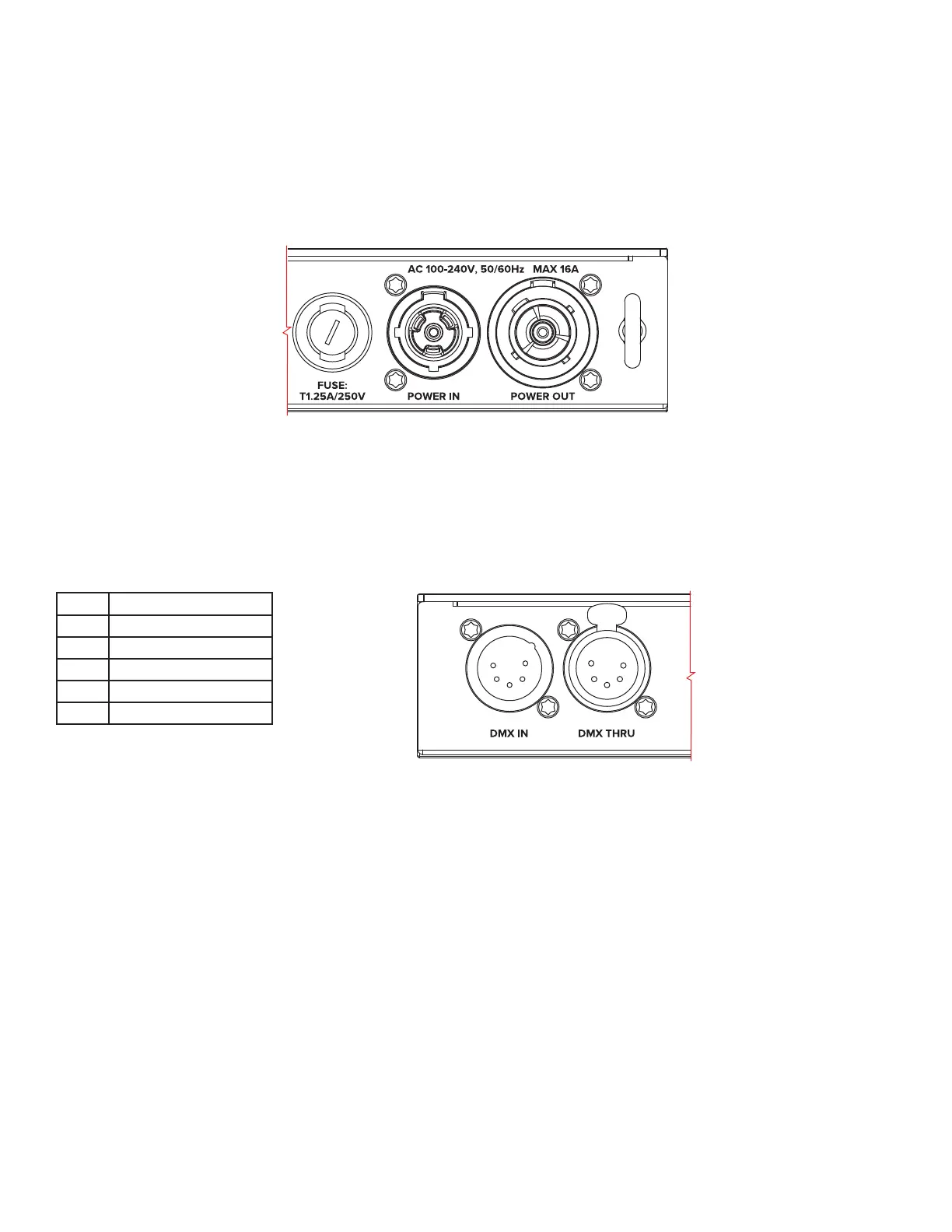

REAR CONNECTIONS
AC CONNECTIONS
The Aria X2 Transceiver is rated for 100-240V 50/60Hz, and accepts AC mains power within that range.
Do not connect it to power outside this range. Note that the device uses a T1.25A/250V fuse. Damage
resulting from incorrect connection is not covered under warranty. A cable with a NEMA 15-5P plug is
provided for use with the NET 8 in the USA and Canada. This approved cable must be used in North
America.
DMX CONNECTIONS:
The DMX Input/Output connections are 5pin male/female XLR. The pin-out on the socket is pin 1 to
shield, pin 2 to cold (-), and pin 3 to hot (+). Pins 4 and 5 are not used. Carefully connect DMX cables
to the respective ports. To prevent damaging the DMX ports, provide strain relief and support. Avoid
connecting FOH Snakes to the ports directly.
Pin Connection
1 Com
2 Data -
3 Data +
4 Not connected
5 Not connected
