12 ARENA Q7 ZOOM™ User Manual ver 1
CLAMP MOUNTING
The ARENA Q7 ZOOM
™
includes an adjustable mounting yoke that attaches to both
sides of the fixture. When mounting this fixture to truss be sure to secure an
appropriately rated clamp to the mounting yoke using a M10 screw fitted through
the center hole of the mounting yoke. Be sure to attach a Safety Cable to the fixture
using the safety cable rigging point on the back of the fixture as illustrated below.
SECURING
Regardless of the rigging option you choose for your ARENA Q7 ZOOM
™
always be

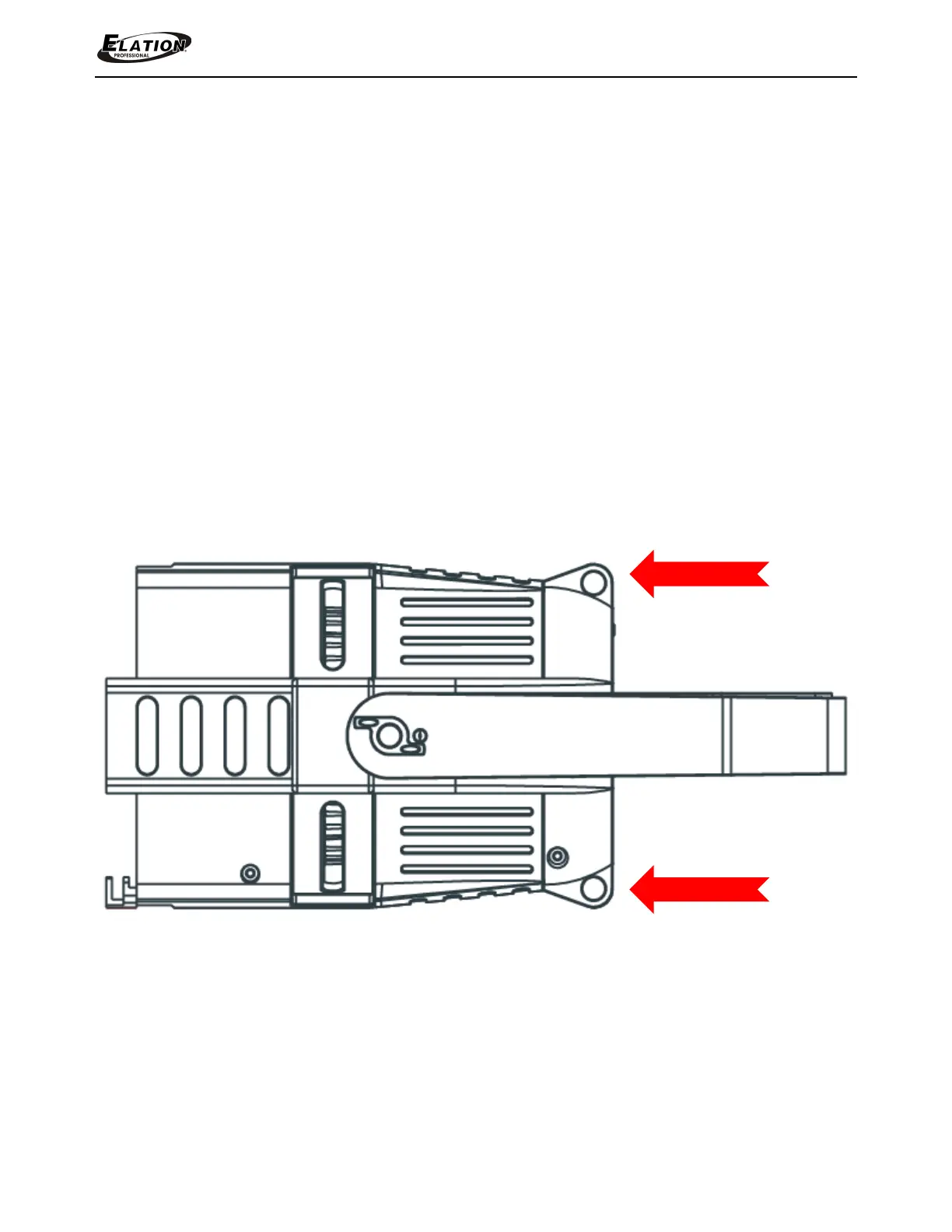

sure to secure your fixture with a safety cable. The fixture provides a built-in rigging
point for a safety cable on the back of the fixture as illustrated below. Be sure to only
use the designated rigging point for the safety cable.
