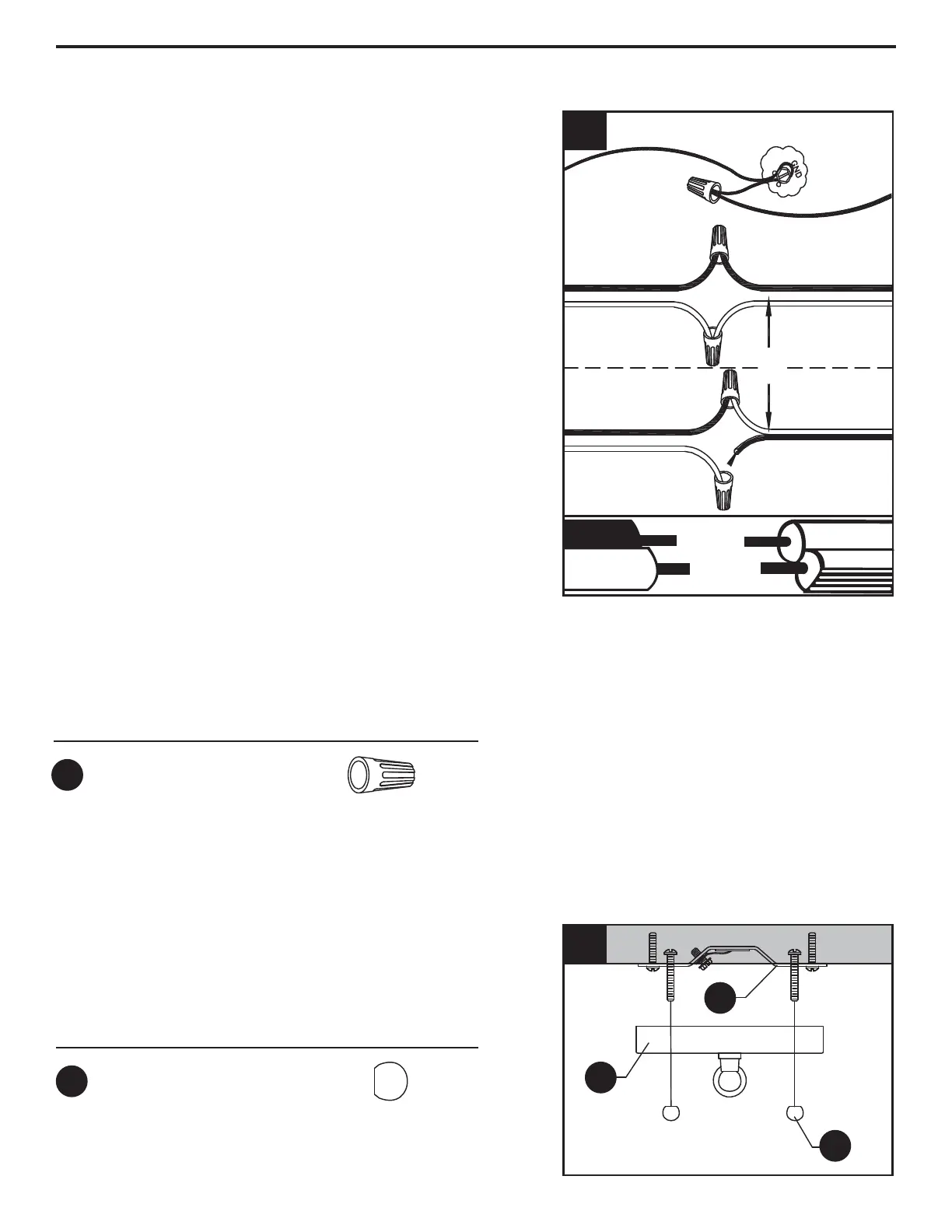

ASSEMBLY INSTRUCTIONS
5
4. Secure canopy (P) to mounting bracket (DD)
with threaded knobs (FF).
Hardware Used
x 2
Threaded
Knob
FF
Hardware Used
x 3Wire Connector
AA
3. Wire connection guide:
Ground wire:
• For installation in the United States: Wrap
ground wire from outlet box around ground
screw (EE) on mounting bracket (DD) no less
than 2 in. from wire end. Tighten ground
screw (EE). If fixture is supplied with a
ground wire, connect to outlet ground wire
with a wire connector (AA).
• For installation in Canada: If fixture is
supplied with ground wire, wrap ground wire
around ground screw (EE) on mounting
bracket (DD). Tighten ground screw (EE).
Supply wires:
• Connect the Neutral (White) supply wire from
the outlet box to the Neutral fixture wire
(White or Parallel Cord “D” shaped and
ribbed).
• Connect the Hot (Black) supply wire from the
outlet box to the Hot fixture wire (Black or
Parallel Cord round and smooth).
NOTE:
Fixture will have 2 wires either Black &
White or Parallel Cord SPT-2 lamp wire with
one round smooth wire and one “D” shaped
ribbed wire.
3
BARE COPPER, OR
GREEN GROUND
SUPPLY WIRE
BARE COPPER, OR
GREEN GROUND
FIXTURE WIRE
BLACK FIXTURE
WIRE
OR
WHITE FIXTURE
WIRE
BLACK SUPPLY
WIRE
BLACK SUPPLY
WIRE
PARALLEL FIXTURE CORD
(ROUND AND SMOOTH)
PARALLEL FIXTURE CORD
(“D” SHAPED AND RIDGED)
WHITE SUPPLY
WIRE
WHITE SUPPLY
WIRE
4
DD
P
FF
