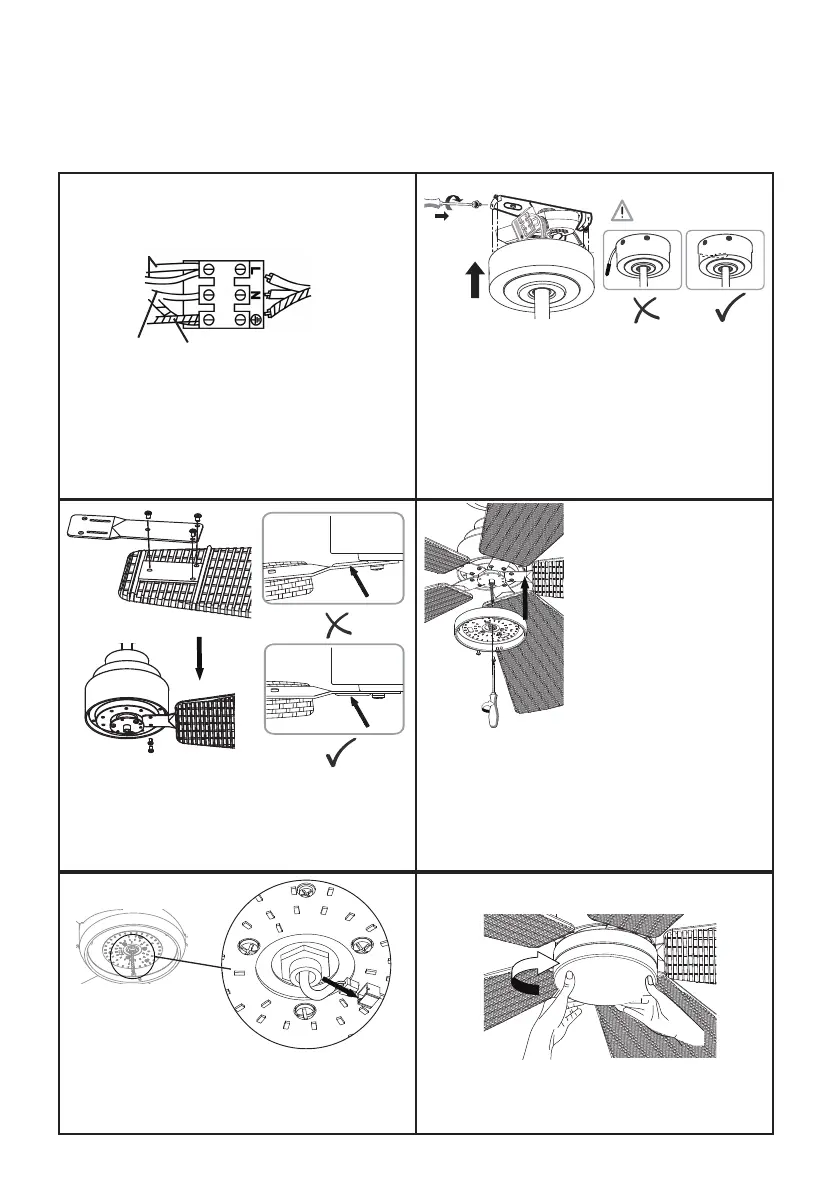

6. Slide the slots on the
canopy on to the screws at
either end of the mounting
plate, secure with the two
screws, spring washers and
star washers provided.
(Caution:Sensor must be
pull inside the canopy.)
7. Fasten the blade to the
motor with the screws and
spring washers already
attached to the motor.
9. Connect the light kit by
clipping together the two
plastic connectors.
CABLE CONNECTION
Brown wire
Blue wire
Green/
yellow stripes wire
5. Connect the wires from
the earthed mains supply to
the terminal block.
10.Install the light shade on
to the switch housing.
8.
Bulb
Replacement
Fit the LED(Max.18W,non-
user replaceable LED) lamp
panel to the switch housing
by using the three light kit-
fixing screws. Ensure that
you do not trap anywires.
N
L
